Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
HPC or Natural or OEM
Place of Origin:
China
Model Number:
618/1120 619/1120 60/1120 619/1180 618/1250 609/1320 618/1400 619/1400
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name HPC or Natural or OEM
Place of Origin China
Model Number 618/1120 619/1120 60/1120 619/1180 618/1250 609/1320 618/1400 619/1400
Number of Row Single Row
Seals Type Open, Seals, Shields
Outside Diameter 1360, 1820
Bore Size 1120, 1400

Please contact with us via sale01@hady.Ltd directly for detail requirement

or

whatsapp/wechat +86 136 0603 6591 for rush case support.

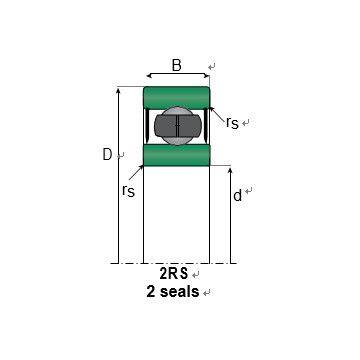

Principal dimensionsLoad ratingsSpeed limitsWeightRadius
Part   numberBoreOuterWidthDynamicStaticGreaseOil

dDBCCorpmKgrs min

mmkN1 min−1mm
618/11201120136010672521802903503106
619/112011201460150101030702703306407,5
60/1120112015802001430448025030012459,5
619/118011801540160111536302102707657,5
618/12501250150011283027402102703906
609/132013201720128118040601902308357,5
618/140014001700132107039801902306207,5
619/1400140018201851550552018023012609,5


The single row deep groove ball bearing is the most popular type of rolling bearing. Because the inner and outer raceway radii are only slightly larger than the ball diameter,

it has considerable axial load carrying capacity in either direction, as well as radial loading. It is suitable for high speeds and can be supplied with shields or seals - for example, suffix ZZ is added for shielded type, and suffix 2RS is added for sealed type.



The shielded types have a running clearance between the inner race and the metal shield; whereas, the sealed types (with seals made from synthetic rubber) make contact with the inner race. Both shielded and sealed bearings are supplied with the correct amount of lithium base grease, which has an operating temperature of -30 to +120°C

(-22°F to +248°F).



Cages are normally two pieced pressed steel. For higher speeds, machined brass cages and reinforced plastics are used. Plastic cages are limited on operating temperature to about 120°C (248°F) maximum.



Deep Groove Ball Bearing can also be supplied with snap ring and groove, which provide a simple and space-saving means of locating the bearing in the housing. Bearings with this feature have the suffix NR added to the designation.



Dimensions in accordance with ISO 15:2011
