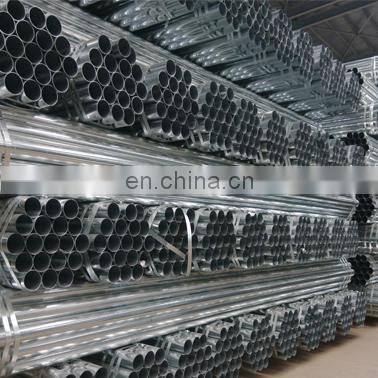

Cut Clearly and Normally Square Hot Dipped Galvanized Pipe With As1074
- Xingang Tianjin China
- T/T Credit Card
You May Like
Product Details
| Place of Origin | Tianjin, China | |||
| Thickness | 1.0, 16 | Application | Structure Pipe | |
| Surface Treatment | Galvanized | Technique | ERW | |
| Alloy Or Not | Non-alloy | |||
| Secondary Or Not | Non-secondary | Special Pipe | Thick Wall Pipe | |
| Section Shape | Round |
Product Description
cut clearly and normally square hot dipped galvanized pipe with as1074
| |
Product Name: | cut clearly and normally square hot dipped galvanized pipe with as1074 | |
Size | OD (inch) | 1/2-4 |
Wall Thickness (mm) | light,medium,heavy | |
ZINC COATED (g/m2) | 210-500 | |
Standard | AS1074 | |
Section shape | Round | |
Type | ERW Pipe | |
Length | 4.0M,5.8M, 6M, 11.8M, 12M or customized length | |
| AS 1074 | ||||||
| Light | ||||||
| Nominal size | Designation of thread(in) | (O.D) | Thickness | Plain end | Screwed and Socketed | |
| (MAX) | (MIN) | |||||
| in | mm | mm | mm | kg/m | kg/m | |
| DN15 | 1/2 | 21.4 | 21.0 | 2.0 | 0.947 | 0.956 |
| DN20 | 3/4 | 26.9 | 26.4 | 2.3 | 1.38 | 1.39 |
| DN25 | 1 | 33.8 | 33.2 | 2.6 | 1.98 | 2.00 |
| DN32 | 1 1/4 | 42.5 | 41.9 | 2.6 | 2.54 | 2.57 |
| DN40 | 1 1/2 | 48.4 | 47.8 | 2.9 | 3.23 | 3.27 |
| DN50 | 2 | 60.2 | 59.6 | 2.9 | 4.08 | 4.15 |
| DN65 | 2 1/2 | 76.0 | 75.2 | 3.2 | 5.71 | 5.83 |
| DN80 | 3 | 88.7 | 87.9 | 3.2 | 6.72 | 6.89 |
| DN100 | 4 | 113.9 | 113.0 | 3.6 | 9.75 | 10.00 |
| AS 1074 | ||||||
| Medium | ||||||
| Nominal size | Designation of thread(in) | (O.D) | Thickness | Plain end | Screwed and Socketed | |
| (MAX) | (MIN) | |||||
| mm | in | mm | mm | mm | kg/m | kg/m |
| DN15 | 1/2 | 21.7 | 21.1 | 2.6 | 1.21 | 1.22 |
| DN20 | 3/4 | 27.2 | 26.6 | 2.6 | 1.56 | 1.57 |
| DN25 | 1 | 34.2 | 33.4 | 3.2 | 2.41 | 2.43 |
| DN32 | 1 1/4 | 42.9 | 42.1 | 3.2 | 3.10 | 3.13 |
| DN40 | 1 1/2 | 48.8 | 48 | 3.2 | 3.57 | 3.61 |
| DN50 | 2 | 60.8 | 59.8 | 3.6 | 5.03 | 5.10 |
| DN65 | 2 1/2 | 76.6 | 75.4 | 3.6 | 6.43 | 6.55 |
| DN80 | 3 | 89.5 | 88.1 | 4.0 | 8.37 | 8.54 |
| DN100 | 4 | 114.9 | 133.3 | 4.5 | 12.2 | 12.50 |
| DN125 | 5 | 138.7 | 140.6 | 5.0 | 16.6 | 17.1 |
| DN150 | 6 | 164.1 | 166.1 | 5.0 | 19.7 | 20.3 |
| AS 1074 | ||||||
| Heavy | ||||||
| Nominal size | Designation of thread(in) | (O.D) | Thickness | Plain end | Screwed and Socketed | |
| (MAX) | (MIN) | |||||
| mm | in | mm | mm | mm | kg/m | kg/m |
| DN15 | 1/2 | 21.7 | 21.1 | 3.2 | 1.44 | 1.45 |
| DN20 | 3/4 | 27.2 | 26.6 | 3.2 | 1.87 | 1.88 |
| DN25 | 1 | 34.2 | 33.4 | 4.0 | 2.94 | 2.96 |
| DN32 | 1 1/4 | 42.9 | 42.1 | 4.0 | 3.80 | 3.83 |
| DN40 | 1 1/2 | 48.8 | 48.0 | 4.0 | 4.38 | 4.42 |
| DN50 | 2 | 60.8 | 59.8 | 4.5 | 6.19 | 6.26 |
| DN65 | 2 1/2 | 76.6 | 75.4 | 4.5 | 7.93 | 8.05 |
| DN80 | 3 | 89.5 | 88.1 | 5.0 | 10.30 | 10.50 |
| DN100 | 4 | 114.9 | 113.3 | 5.4 | 14.50 | 14.80 |
| DN125 | 5 | 138.7 | 140.6 | 5.4 | 17.9 | 18.4 |
| DN150 | 6 | 164.1 | 166.1 | 5.4 | 21.3 | 21.9 |
| |
| Hot dipped galvanized steel pipe | pre galvanized steel pipe |
FAQ
1. Q: Are you a factory or a trading company?
A: We not only have our own factories but also have shares in some other enterprises.
2. Q: Can you provide samples?
A: Yes, if the sample is available in stock.
3. Q: Can you arrange the shipment?
A: Sure, we have permanent freight forwarder who can gain the best price from most ship company and offer professional service.
4. Q: What is the delivery time?
A: It is based on the order, normally 15 - 20 days after receiving the deposit or L/C at sight.
5. Q: Do you have quality control?
A: Yes, we have gained BV, SGS authentication.
6. Q: What are your payment terms?
A: 100% irrevocable L/C at sight. Or T/T, 30% advance, and balance against the copy of B/L within 3-5 days.
7.Q: What is your MOQ?
A: 10 tons for common size, or mix sizes for a 20 GP container.
