Home > Industrial Equipment & Components > Bearing > Angular Contact Ball Bearing > CRB40035 Crossed Roller Bearings 400*480*35mm Slewing Ring for Robots

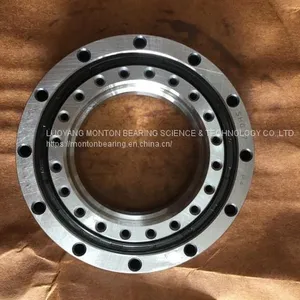

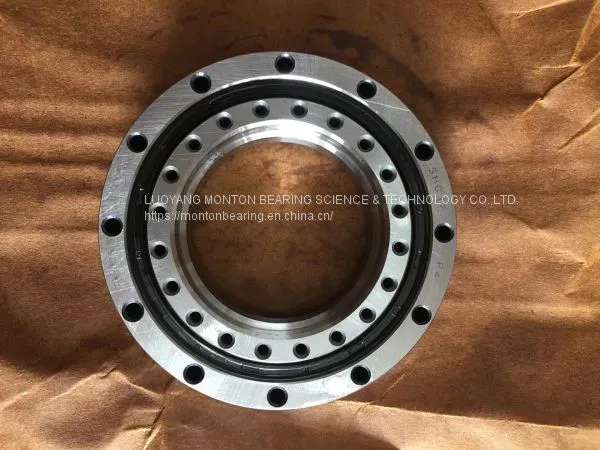

CRB40035 Crossed Roller Bearings 400*480*35mm Slewing Ring for Robots
US$ 100 - 1000
MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
MONTON
Place of Origin:
China
Model Number:
CRB40035
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
7 days
Related Products
-
RB7010UUC0P4 Crossed Roller Bearings 70*116*8mm for High Precision Rotary TableUS$ 100 - 1000MOQ: 1 Piece -
RB14025UUCC0P5 140*200*25mm Crossed Roller BearingUS$ 100 - 1000MOQ: 1 Piece
-
CRBT20A 20*31*5mm Super Slim Type Crossed Roller BearingsUS$ 10 - 1000MOQ: 1 Piece
-
CRBT305A 30*41*5mm Super Slim Type Crossed Roller BearingsUS$ 10 - 1000MOQ: 1 Piece
-
CRBT405A 40*51*5mm Super Slim Type Crossed Roller BearingsUS$ 10 - 1000MOQ: 1 Piece
Brand Name
MONTON
Place of Origin
China
Model Number
CRB40035
Number of Row
Single Row
Seals Type
seals
Precision Rating
P4
Outside Diameter
10, 1000
Bore Size
10, 1000
CRB40035 crossed roller bearings
structure: crossed roller slewing bearing with separators, integrated inner ring with split outer rings.
size: 400*480*35mm
mass: 14.5kg
More CRB slewing bearing models
| PART NO. | Dimesion(mm) | Load capacity | Mass (kg) | Equivalent Model | |||||
| Open type | With seal | d | D | B | rsmin | Cr | Cor | THK | |
| CRB3010 | CRB3010UU | 30 | 55 | 10 | 0.3 | 7.35 | 8.36 | 0.12 | RB3010 |
| CRB4010 | CRB4010UU | 40 | 65 | 10 | 0.3 | 8.33 | 10.6 | 0.15 | RB4010 |
| CRB5013 | CRB5013UU | 50 | 80 | 13 | 0.6 | 16.7 | 20.9 | 0.29 | RB5013 |
| CRB6013 | CRB6013UU | 60 | 90 | 13 | 0.6 | 18 | 24.3 | 0.33 | RB6013 |
| CRB7013 | CRB7013UU | 70 | 100 | 13 | 0.6 | 19.4 | 27.7 | 0.38 | RB7013 |
| CRB8016 | CRB8016UU | 80 | 120 | 16 | 0.6 | 30.1 | 42.1 | 0.74 | RB8016 |
| CRB9016 | CRB9016UU | 90 | 130 | 16 | 1 | 31.4 | 45.3 | 0.81 | RB9016 |
| CRB10020 | CRB10020UU | 100 | 150 | 20 | 1 | 33.1 | 50.9 | 1.45 | RB10020 |
| CRB11020 | CRB11020UU | 110 | 160 | 20 | 1 | 34 | 54 | 1.56 | RB11020 |
| CRB12025 | CRB12025UU | 120 | 180 | 25 | 1.5 | 66.9 | 100 | 2.62 | RB12025 |
| CRB13025 | CRB13025UU | 130 | 190 | 25 | 1.5 | 69.5 | 107 | 2.82 | RB13025 |
| CRB14025 | CRB14025UU | 140 | 200 | 25 | 1.5 | 74.8 | 121 | 2.96 | RB14025 |
| CRB15025 | CRB15025UU | 150 | 210 | 25 | 1.5 | 76.8 | 128 | 3.16 | RB15025 |
| CRB15030 | CRB15030UU | 150 | 230 | 30 | 1.5 | 100 | 156 | 5.3 | RB15030 |
| CRB20025 | CRB20025UU | 200 | 260 | 25 | 2 | 84.2 | 157 | 4 | RB20025 |
| CRB20030 | — | 200 | 280 | 30 | 2 | 114 | 200 | 6.7 | RB20030 |
| CRB20035 | — | 200 | 295 | 35 | 2 | 151 | 252 | 9.58 | RB20035 |
| CRB25025 | CRB25025UU | 250 | 310 | 25 | 2.5 | 69.3 | 150 | 4.97 | RB25025 |
| CRB25030 | — | 250 | 330 | 30 | 2.5 | 126 | 244 | 8.1 | RB25030 |
| CRB25040 | — | 250 | 355 | 40 | 2.5 | 195 | 348 | 14.8 | RB25040 |
| CRB30025 | CRB30025UU | 300 | 360 | 25 | 2.5 | 76.3 | 178 | 5.88 | RB30025 |
| CRB30035 | — | 300 | 395 | 35 | 2.5 | 183 | 367 | 13.4 | RB30035 |
| CRB30040 | — | 300 | 405 | 40 | 2.5 | 212 | 409 | 17.2 | RB30040 |
| CRB40035 | — | 400 | 480 | 35 | 2.5 | 156 | 370 | 14.5 | RB40035 |
| CRB40040 | — | 400 | 510 | 40 | 2.5 | 241 | 531 | 23.5 | RB40040 |
| CRB40070 | — | 400 | 580 | 70 | 2.5 | 470 | 811 | 72.4 | |
| CRB50040 | — | 500 | 600 | 40 | 2.5 | 239 | 607 | 26 | RB50040 |
| CRB50050 | — | 500 | 625 | 50 | 2.5 | 267 | 653 | 41.7 | RB50050 |
| CRB50070 | — | 500 | 680 | 70 | 2.5 | 536 | 1020 | 86.1 | |
| CRB60040 | — | 600 | 700 | 40 | 3 | 264 | 721 | 30.6 | |
| CRB60070 | — | 600 | 780 | 70 | 3 | 591 | 1230 | 102 | |
| CRB600120 | — | 600 | 870 | 120 | 3 | 1250 | 2270 | 274 | |
| CRB70045 | — | 700 | 815 | 45 | 3 | 281 | 836 | 46.5 | |
| CRB70070 | — | 700 | 880 | 70 | 3 | 630 | 1390 | 115 | |
| CRB700150 | — | 700 | 1020 | 150 | 3 | 1660 | 3010 | 478 | |
| CRB80070 | — | 800 | 950 | 70 | 4 | 468 | 1330 | 109 | RB80070 |
| CRB800100 | — | 800 | 1030 | 100 | 4 | 936 | 2040 | 247 | |
| Open type | With seal | d | D | B | rsmin | Cr | Cor | Mass (kg) | Equivalent Models |
CRB series crossed roller bearing provides high and stable running accuracy, suited for precision detecting instrument, robot joints, direct drive torque motor, high-precision turntable, etc.
To learn more about our company or get the Installation Instructions of CRB40035 crossed roller bearings one piece inner ring split outer ring regarding the installation size, weight, basic dynamic load rating, load, limiting speed, and clearance, please contact us. Drawing and sample of CRB40035 crossed roller bearings one piece inner ring split outer ring are available upon request.
