ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory

ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-1
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-2
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-3
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-4
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-5
ER209 ER218 ER219 ER240 St. Steel Welding Wire MIG TIG Factory photo-6
US$ 1,000 - 3,000 MOQ: 500 Tons
Key Specifications
Get Latest Price
Brand Name:
BEALL
Place of Origin:
Jiangsu, China
Model Number:
stainless steel welding wire
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Brand Name BEALL
Place of Origin Jiangsu, China
Model Number stainless steel welding wire

$titel$
1.Easy to operate, no need to add more flux
2.Saving resources
3.Enviro


 Application:

ER316/ER316L: 10Cr-12Ni-2.5Mo (SUS316) used for welding steel, as well as operating Temperature of 600~750 °C chemical, oil refining tube heat exchangers, furnace tubes Peter. Arc stability, weld appearance. Anti-oxidation temperature not less than 870 °C.
ER316LSi: Primarily used for welding of high silicon, low carbon , 18Cr - 12Ni - 2.5Mo steels.
Conform with:AWS:ER316 YB/T:H0Cr19Ni12Mo2 JIS:Y316
AWS:ER316L YB/T:H0Cr19Ni12Mo2 JIS:Y316L
AWS:ER316LSi JIS:Y316LSi

  More Details:



Wire Type Wire Size Spool Size Net Weight
MIG Wire φ0.8~1.6(mm) D100mm D200mm D300mm D270mm 1kg 5kg 15kg 20kg
TIG Wire φ1.6~5.0(mm) 1 meter 5kg 10kg
  chemical composition of welding wire(%)
Type Mechanical Properties or Deposited Metal C Si Mn Cr Ni Mo
Tensile strengthσb(Mpa) Elongationδ5(%)
ER316 578 38 0.050 0.60 1.78 19.61 12.50 2.20 -
ER316L 590 40 0.025 0.42 1.91 19.10 12.58 2.57 -
ER316LSi 562 31 0.021 0.77 1.95 19.20 13.45 2.58 -

Please be noted Welding position
Wire shall be stocked in dry.open the packs just when welding to avoid the wire rust.
Before welding please clean out the oil,rust,water etc from the work parts

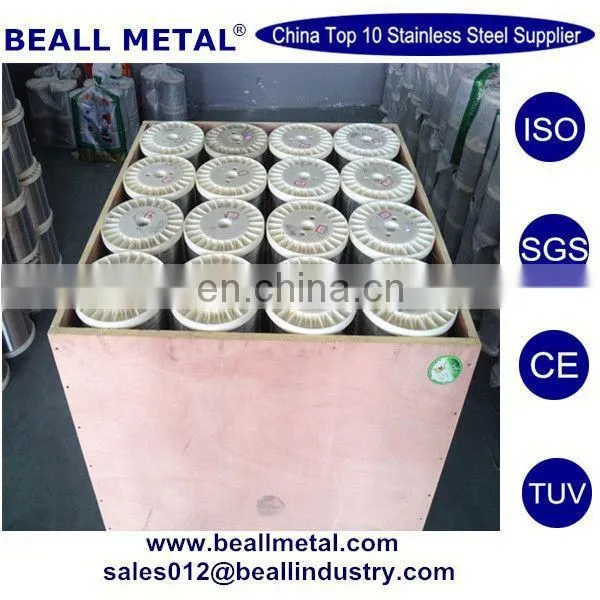

Packaging & Shipping



5kg/box   1 ton/ pallet

15kgs/spool, 72cartons/pallet



Our Services



1. Free sample is available.

2. The third party inspection is accepted.

3. Bottom price for customers.

4. Best quality is provided.
