Three Phase Variable Frequency Inverter Electric Induction Motors

China EM Technology Limited
Three Phase Variable Frequency Inverter Electric Induction Motors thumbnail-1
Three Phase Variable Frequency Inverter Electric Induction Motors thumbnail-2
Three Phase Variable Frequency Inverter Electric Induction Motors photo-1

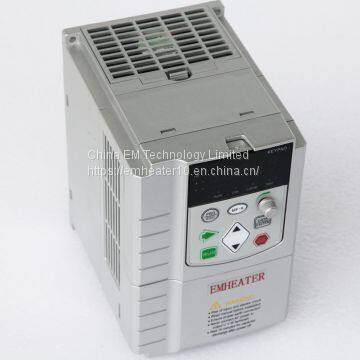

Three Phase Variable Frequency Inverter Electric Induction Motors photo-2
US$ 445 - 459 MOQ: 1 Piece
Key Specifications
Get Latest Price
Brand Name:
EMheater
Place of Origin:
China
Model Number:
EM12-GP3-030
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
10 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name EMheater
Place of Origin China
Model Number EM12-GP3-030
Type DC/AC Inverters
Size 220/320/198mm
Weight 9KG
Output Power 1 - 200KW
Output Type Triple
Output Current 60A
Output Frequency 30KW
Output Voltage 380V
Input Voltage 380-440V

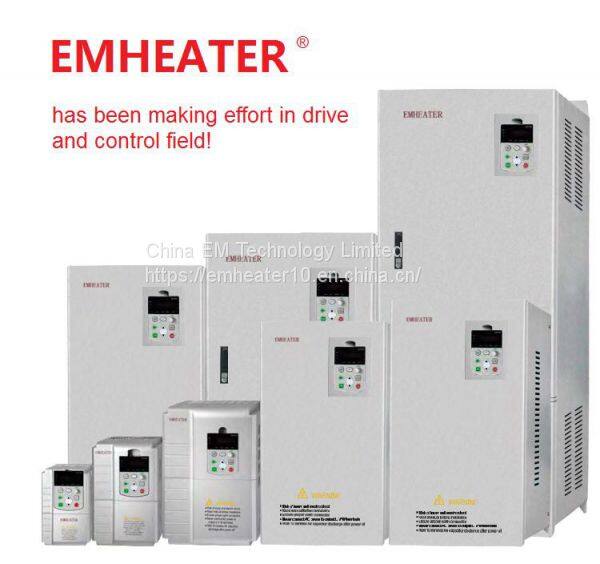

CHINA BEST COST EFFECTIVE FREQUENCY INVERTER

EM12 High Performance Vector Control Inverter



Feature:

EM12 is first class frequency inverter with very strong software and hardware.

It has servo drive feature, with perfect speed control mode, and excellent torque control mode.

It can save 2 group motor parameters , and can drive synchronous motor and asynchronous motor.

It has sensor-less vector control (SVC), vector control+ PG; V/F control and V/F separation control.

It has 49 kinds digital input functions and 38 kinds digital output functions.

It has S curve of acceleration and deceleration, user can self defined S curve turning time.

The IGBT carrier frequency can auto adjustment according to heat sink temperature.

35 kinds protection function, including auto detecting short circuit after power on.

Including textile swing frequency and skip frequency function, etc.

Voltage Range:220V~240V; 380V~440V.

Input Frequency Range:45~65Hz.

Output Voltage Range:ZZ

Output Frequency Range:V/F( 0~3000Hz); Vector Control (0~300Hz).

Overload Capacity:60s with 150% of rated current, 3s with 180% of rated current.

From 0.75~30KW Plastic house; 30~400KW is metal house.

Speed Accuracy: ±0.5% (SVC); ±0.02% (VC).

Pulse setting input: 0Khz~100Khz.

All model built-in RS485 card, and approved by CE, Rohs, ISO9001 quality certificate.EM12-G3/P3 models are integrated IGBT.


EM12-G1 Vector Control Inverter For General Use 200-240V

Single phase input &3phase output

Model No.

Voltage

Power

Current

G.W

Package size

Inverter

(V)

(KW)

(A)

(KG)

L/W/H(mm)

W/H/D(mm)

EM12-G1-d75

220

0.75

4

2

222/165/186

100/151/116

EM12-G1-1d5

220

1.5

7

EM12-G1-2d2

220

2.2

10

3

235/175/214

118/185/157

EM12-G1-004

220

4

16

5

320/230/230

160/247/177

EM12-G1-5d5

220

5.5

23

 EM12-G3 Vector Control Inverter For General Use 380-440V

3 phase input &3phase output

Model No.

Voltage

Power

Current

G.W

Package size

Inverter

(V)

(KW)

(A)

(KG)

L/W/H(mm)

W/H/D(mm)

EM12-G3-d75/P3-1d5

380

0.75/1.5

2.1/3.8

2

222/165/186

100/151/116

EM12-G3-1d5/P3-2d2

380

1.5/2.2

3.8/5.1

EM12-G3-2d2/P3-004

380

2.2/4.0

5.1/9

EM12-G3-003

380

3.0

7

EM12-G3-004/P3-5d5

380

4.0/5.5

9/13

3

235/175/214

118/185/157

EM12-G3-5d5/P3-7d5

380

5.5/7.5

13/17

EM12-GP3-7d5

380

7.5

17

EM12-G3-7d5/P3-011

380

7.5/11

17/25

5

320/230/230

160/247/177

EM12-G3-011/P3-015

380

11/15

25/32

EM12-GP3-015

380

15

32

EM12-G3-015/P3-018

380

15/18.5

32/37

9

390/300/270

220/320/198

EM12-G3-018/P3-022

380

18.5/22

37/44

EM12-G3-022/P3-030

380

22/30

45/60

EM12-GP3-030

380

30

60

EM12-G3-030/P3-037

380

30/37

60/75

25

610/410/350

300/540/240

EM12-G3-037/P3-045

380

37/45

75/91

EM12-G3-045/P3-055

380

45/55

91/112

40

640/450/460

340/580/270

EM12-G3-055/P3-075

380

55/75

112/150

EM12-G3-075/P3-090

380

75/90

150/176

51

670/520/480

410/610/280

EM12-G3-090/P3-110

380

90/110

176/210

EM12-G3-110/P3-132

380

110/132

210/253

75

820/575/560

460/710/335

EM12-G3-132/P3-160

380

132/160

253/304

EM12-G3-160/P3-200

380

160/200

304/377

108

1050/655/590

535/885/370

EM12-G3-200/P3-220

380

200/220

377/426

EM12-G3-220/P3-250

380

220/250

426/465

EM12-G3-250/P3-280

380

250/280

465/520

168

1170*780*635

650/1040/415

EM12-G3-280/P3-315

380

280/315

520/585

EM12-G3-315/P3-355

380

315/355

585/650

EM12-G3-355/P3-400

380

355/400

650/725

252

1430*945*635

815/1350/445

EM12-G3-400/P3-450

380

400/450

725/820



Welcome to contact us

China EM Technology Limited

Cool Wu

Sales Manager

Mob/Wechat:+86 13680311737

QQ:1263424231

website:http//




Product Tags: Motor Speed Controller variable ac drives/vfd/vsd/frequency inverter power supply 3 phase , For Pump Knitting Machine compressor extruding machine injection machine motor braiding pressure fan
