Home > Products > Stainless Steel Wire > mill price 317L Stainless Steel Wire Mesh 0.06mm
mill price 317L Stainless Steel Wire Mesh 0.06mm
- 1000 Ton / Tons per Month
- Shanghai
- T/T Credit Card
- mill price plastic coated stainless steel wire rope
- mill price 316L stainless steel wire rope accessories
- good price 321 stainless steel wire rope china supplier
- 5mm 6mm 8mm 10mm 316 Marine Grade 7x 19 Stainless Steel cable
- 304 7*7 stainless steel rope for fishing,flexible steel wire rope
- PVC/PE Nylon coated stainless steel wire rope/cable
Product Details
Brand Name: | Sakysteel | Place of Origin: | Jiangsu, China | Model Number: | AISI317L |
Material: | Stainless Steel Wire | Type: | Weave Wire Mesh | Application: | Filters |
Technique: | Woven | Wire Diameter: | 0.02 to 2.0mm | Weave Style: | Dutch Weave |
Product Description
Specifications of Stainless steel Wire mesh:
1. Standard: ASTM/JIS/GB
2. Material:AISI 202/304/316/304L/316L
3. Gereral Sizes: 1m x 30m or 1mx100ft
special size we can make it according to your request.
4.Wire Dia:0.02--2.0mm
5.Weave pattern:dutch weave,twill weave,etc
6.Mining industry, petroleum, chemical industry, food, medicine, scientific,research, aviation, and other industries.

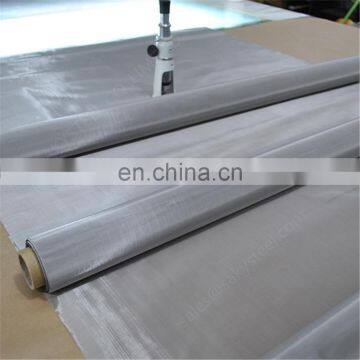

Products Show:
Specification List of stainlesssteelwireCloth | Weight(LB) /100 square Foot | |||||||
mesh/Inch | wire Diameter | Aperture | Open Area | |||||
Inch | MM | Inch | MM | |||||
1x1 | 0.08 | 2.03 | 0.92 | 23.37 | 84.6 | 41.1 | ||
2X2 | 0.063 | 1.6 | 0.437 | 11.1 | 76.4 | 51.2 | ||
3X3 | 0.054 | 1.37 | 0.279 | 7.09 | 70.1 | 56.7 | ||
4X4 | 0.063 | 1.6 | 0.187 | 4.75 | 56 | 104.8 | ||
4X4 | 0.047 | 1.19 | 0.203 | 5.16 | 65.9 | 57.6 | ||
5X5 | 0.041 | 1.04 | 0.159 | 4.04 | 63.2 | 54.9 | ||
6X6 | 0.035 | 0.89 | 0.132 | 3.35 | 62.7 | 48.1 | ||
8X8 | 0.028 | 0.71 | 0.097 | 2.46 | 60.2 | 41.1 | ||
10X10 | 0.025 | 0.64 | 0.075 | 1.91 | 56.3 | 41.2 | ||
10X10 | 0.02 | 0.51 | 0.08 | 2.03 | 64 | 26.1 | ||
12X12 | 0.023 | 0.584 | 0.06 | 1.52 | 51.8 | 42.2 | ||
12X12 | 0.02 | 0.508 | 0.063 | 1.6 | 57.2 | 31.6 | ||
14X14 | 0.023 | 0.584 | 0.048 | 1.22 | 45.2 | 49.8 | ||
14X14 | 0.02 | 0.508 | 0.051 | 1.3 | 51 | 37.2 | ||
16X16 | 0.018 | 0.457 | 0.0445 | 1.13 | 50.7 | 34.5 | ||
18X18 | 0.017 | 0.432 | 0.0386 | 0.98 | 48.3 | 34.8 | ||
20X20 | 0.02 | 0.508 | 0.03 | 0.76 | 36 | 55.2 | ||
20X20 | 0.016 | 0.406 | 0.034 | 0.86 | 46.2 | 34.4 | ||
24X24 | 0.014 | 0.356 | 0.0277 | 0.7 | 44.2 | 31.8 | ||
30X30 | 0.013 | 0.33 | 0.0203 | 0.52 | 37.1 | 34.8 | ||
30X30 | 0.012 | 0.305 | 0.0213 | 0.54 | 40.8 | 29.4 | ||
30X30 | 0.009 | 0.229 | 0.0243 | 0.62 | 53.1 | 16.1 | ||
35X35 | 0.011 | 0.279 | 0.0176 | 0.45 | 37.9 | 29 | ||
40X40 | 0.01 | 0.254 | 0.015 | 0.38 | 36 | 27.6 | ||
50X50 | 0.009 | 0.229 | 0.011 | 0.28 | 30.3 | 28.4 | ||
50X50 | 0.008 | 0.203 | 0.012 | 0.31 | 36 | 22.1 | ||
60X60 | 0.0075 | 0.191 | 0.0092 | 0.23 | 30.5 | 23.7 | ||
60X60 | 0.007 | 0.178 | 0.0097 | 0.25 | 33.9 | 20.4 | ||
70X70 | 0.0065 | 0.165 | 0.0078 | 0.2 | 29.8 | 20.8 | ||
80X80 | 0.0065 | 0.165 | 0.006 | 0.15 | 23 | 23.2 | ||
80X80 | 0.0055 | 0.14 | 0.007 | 0.18 | 31.4 | 16.9 | ||
90X90 | 0.005 | 0.127 | 0.0061 | 0.16 | 30.1 | 15.8 | ||
100X100 | 0.0045 | 0.114 | 0.0055 | 0.14 | 30.3 | 14.2 | ||
100X100 | 0.004 | 0.102 | 0.006 | 0.15 | 36 | 11 | ||
100X100 | 0.0035 | 0.089 | 0.0065 | 0.17 | 42.3 | 8.3 | ||
110X110 | 0.004 | 0.1016 | 0.0051 | 0.1295 | 30.7 | 12.4 | ||
120X120 | 0.0037 | 0.094 | 0.0064 | 0.1168 | 30.7 | 11.6 | ||
150X150 | 0.0026 | 0.066 | 0.0041 | 0.1041 | 37.4 | 7.1 | ||
160X160 | 0.0025 | 0.0635 | 0.0038 | 0.0965 | 36.4 | 5.94 | ||
180X180 | 0.0023 | 0.0584 | 0.0033 | 0.0838 | 34.7 | 6.7 | ||
200X200 | 0.0021 | 0.0533 | 0.0029 | 0.0737 | 33.6 | 6.2 | ||
250X250 | 0.0016 | 0.0406 | 0.0024 | 0.061 | 36 | 4.4 | ||
270X270 | 0.0016 | 0.0406 | 0.0021 | 0.0533 | 32.2 | 4.7 | ||
300X300 | 0.0051 | 0.0381 | 0.0018 | 0.0457 | 29.7 | 3.04 | ||
325X325 | 0.0014 | 0.0356 | 0.0017 | 0.0432 | 30 | 4.4 | ||
400X400 | 0.001 | 0.0254 | 0.0015 | 0.37 | 36 | 3.3 | ||
500X500 | 0.001 | 0.0254 | 0.001 | 0.0254 | 25 | 3.8 | ||
635X635 | 0.0008 | 0.0203 | 0.0008 | 0.0203 | 25 | 2.63 |
Packaging Information of Stainless Steel Wire mesh:
Waterproof paper inside and outside with weaving bag
water proof paper inside with poly film then wooden case
Stainless steel wire mesh FAQ:
Q1. Can I have a sample order for stainless steel wire mesh products?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Sample needs 3-5 days;
Q3. Do you have any MOQ limit for stainless steel wire mesh products order?
A: Low MOQ, 1pcs for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional. For mass products, ship freight is prefered.
Q5. Is it OK to print my logo on products?
A: Yes. OEM and ODM are available for us.
Q6: How to ensure the quality?
A:Mill Test Certificate is supplied with shipment. If needed, a Third Party Inspection is acceptable or SGS
