WG811 GPRS Wireless Diffusion Silicon Pressure Transmitter

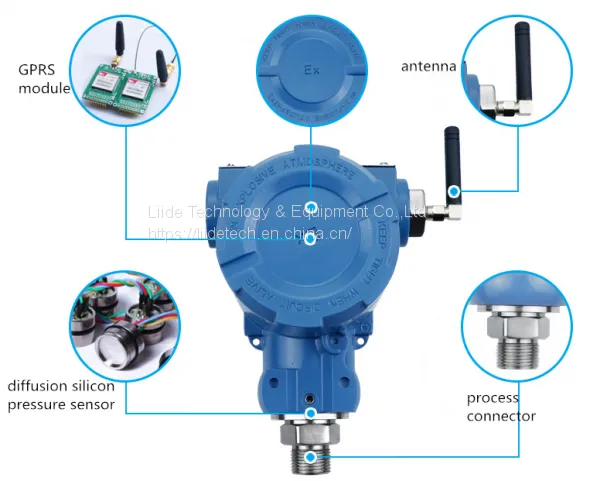

WG811 GPRS Wireless diffusion silicon pressure transmitter is a pressure and level measurement device based on GPRS wilress protocol and diffusion silicon pressure sensor.
Features:
GPRS, wireless, small size, easy installation,
high accuracy, long signal output distance,
3.6V li-ion battery power supply,
LCD/LED display.
Applications:
Pipeline pressure monitoring, petroleum, chemical, electric power, water conservancy, metallurgy, heat, food, medical, environmental control, paper making, and site/filed that power distribution is not covered/convenient.
Specifications:
Pressure range: |
-100Kpa to 20Kpa...6Mpa |
Pressure type: |
Gauge pressure, absolute pressure |
Output signal |
GPRS |
Power supply: |
3.6V li-ion battery |
Long stability: |
0.2% |
Protection: |
IP65 |
Working temperature: |
-20 to 60°C |
Sampling rato |
1 - 600s/time |
Over load |
200%FS |
On rate: |
1 to 1080 minutes settable |
Medium |
Non-corrosive Gas, liquids |
Accuracy: |
0.5%FS, 1%FS. |
Relative humidity: |
≤95% |
Compensation temperature: |
-10 to 70°C |
Housing material |
Aluminium |
Process connection: |
M20*1.15, G1/2, 1/2NPT, others as required. |
WG811 |
GPRS Diffusion silicon pressure transmitter |
|||||
Pressure type |
G |
Gauge pressure |
||||
A |
Absolution pressure |
|||||
Pressure range |
*** |
Write directly, for example 10- 010. -100Kpa to 20Kpa...6Mpa |
||||
Pressure unit |
M |
Mpa |
||||
B |
Bar |
|||||
K |
Kpa |
|||||
Process connection |
N2 |
1/2NPT |
||||
M2 |
M20*1.5 |
|||||
G2 |
G1/2 |
|||||
OT |
Others, please specify |
|||||
