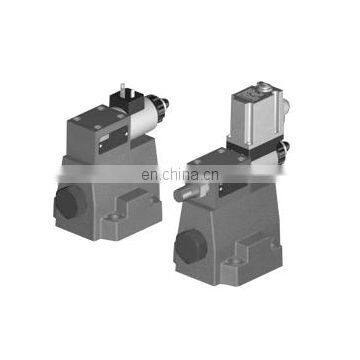

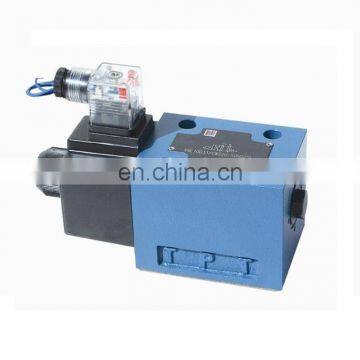

Rexroth DRE of DRE10,DRE20,DRE30,DRECN,DRECN10,DRECH,DRECH20,DRECH30 Hydraulic Valve,proportional Pressure Reducing Valves

Rexroth DRE of DRE10,DRE20,DRE30,DRECN,DRECN10,DRECH,DRECH20,DRECH30 hydraulic valve,proportional pressure reducing valves

1. Completely interchangeable with original
2. Valve used for reducing a working pressure

3. Proportional solenoid actuation

4. For subplate mounting: Porting pattern to DIN 24 340 form D

5. Third flow path A to Y, 6 mm diameter

6. Lowest settable pressure 2 bar at zero command value

7. Linearised command value pressure characteristic curve

8. Main spool closed from B to A in the de-energised position

9. Good transient response

10. Optional check valve between A and B

11. Maximum pressure limitation, optional

12. Valve and electronics from one source

13. Controls for type DRE:

• Analogue amplifier type VT-VSPA1(K)-1 in Eurocard format (separate order)

• Digital amplifier type VT-VSPD-1 in Eurocard format (separate order)

• Analogue amplifier type VT 11724 of modular design

14.Type DREE with integrated control electronics:

• Low scatter for the command value, pressure characteristic curve

• Independently adjustable ramp times for increase and decrease in pressure

15. Very competitive price

16. 1 year of warranty

17. Short delivery time

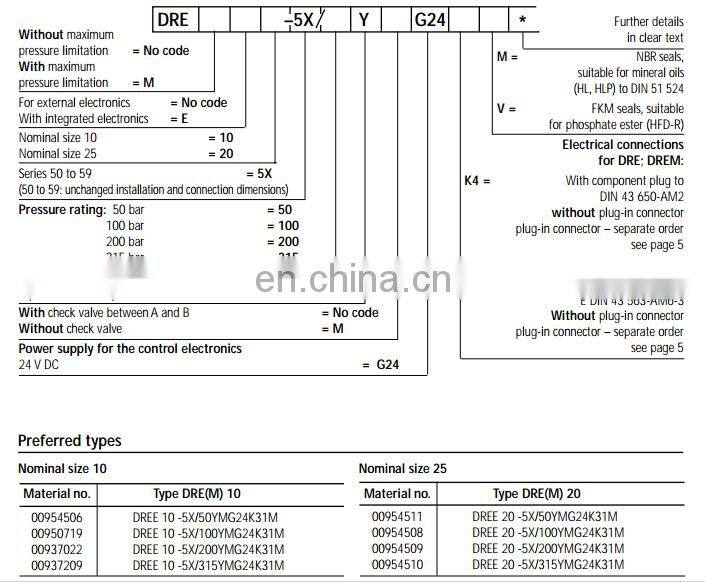

Technical Specifications
