Measuring Instruments low cost electromagnetic flow meter
1.Products features

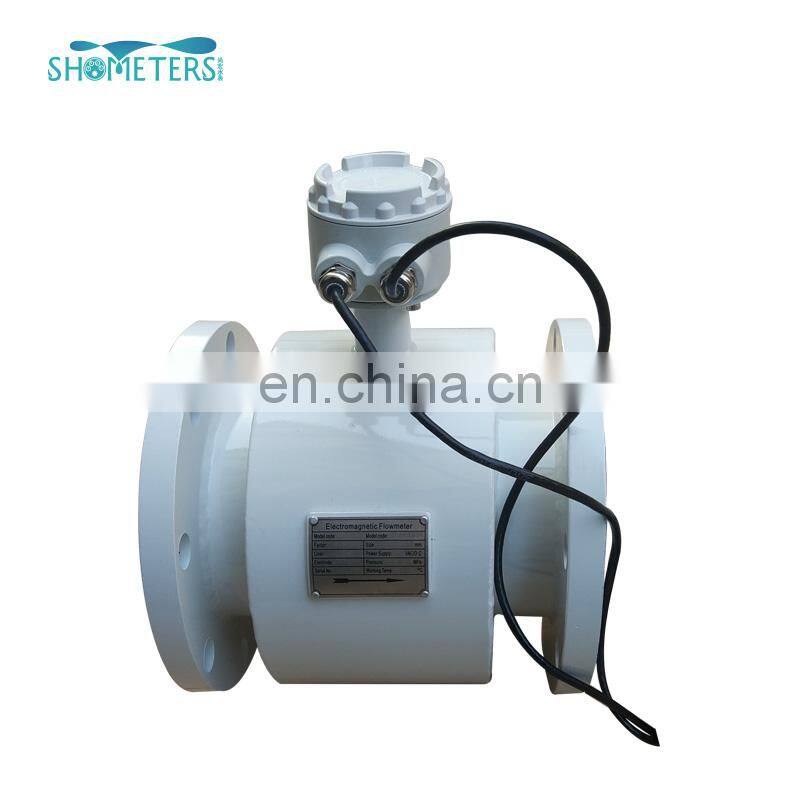

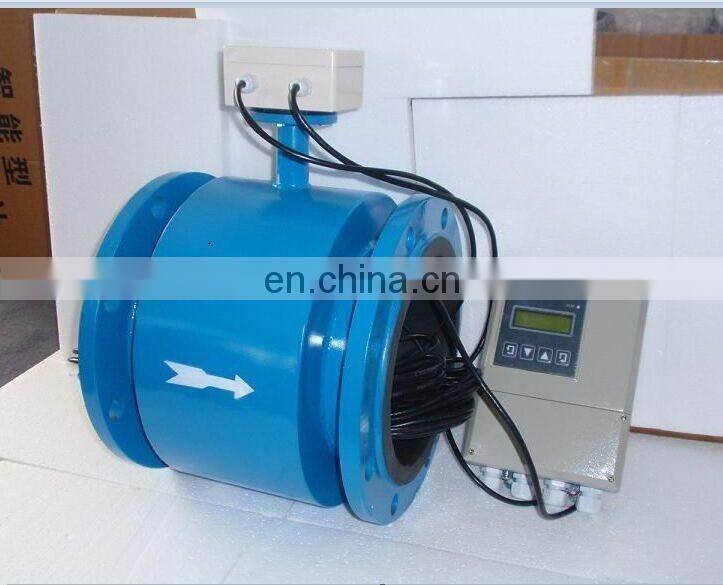

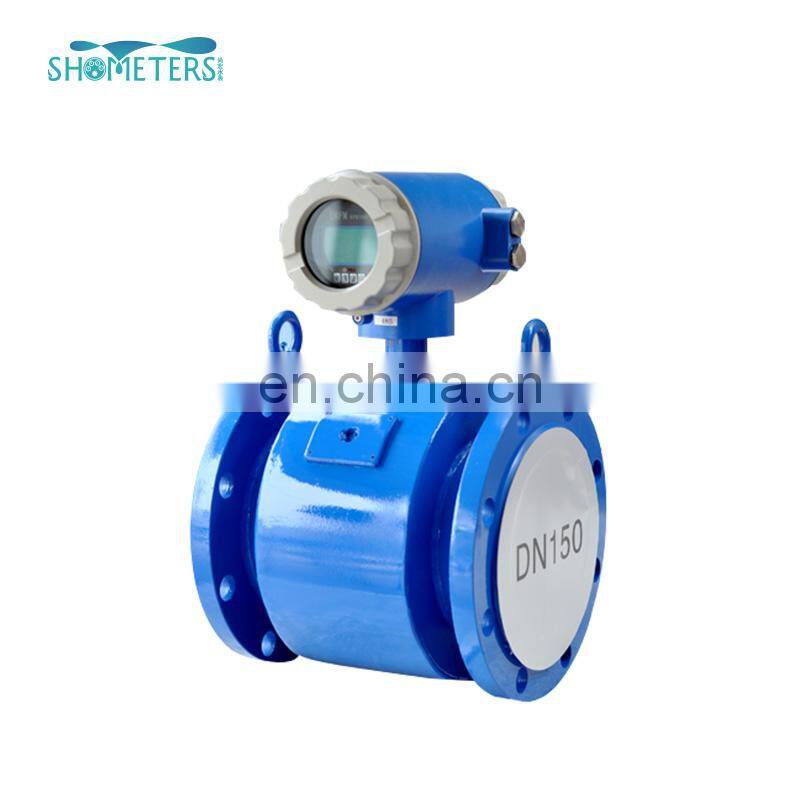

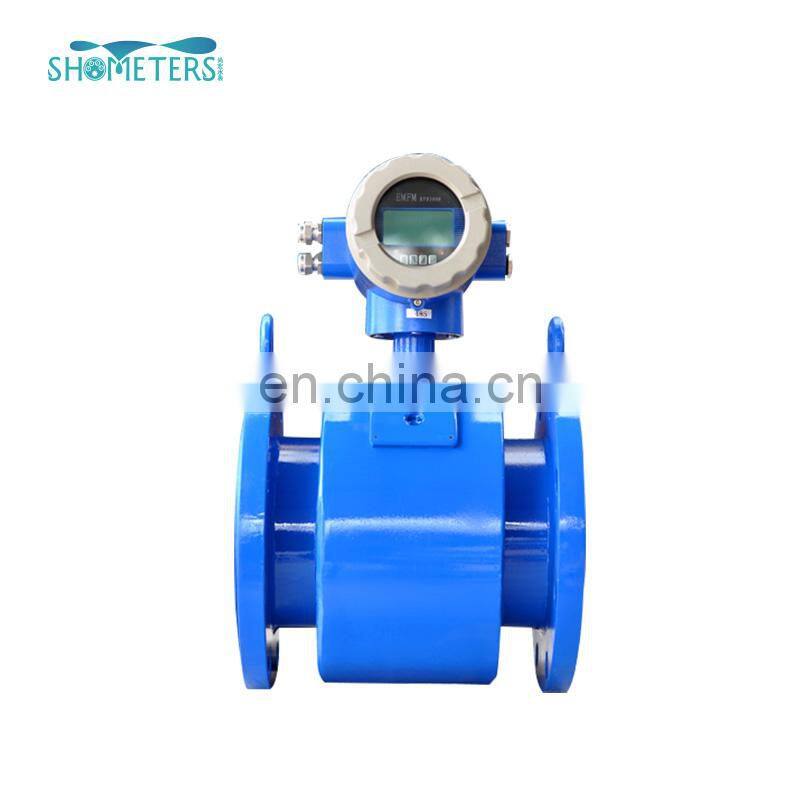

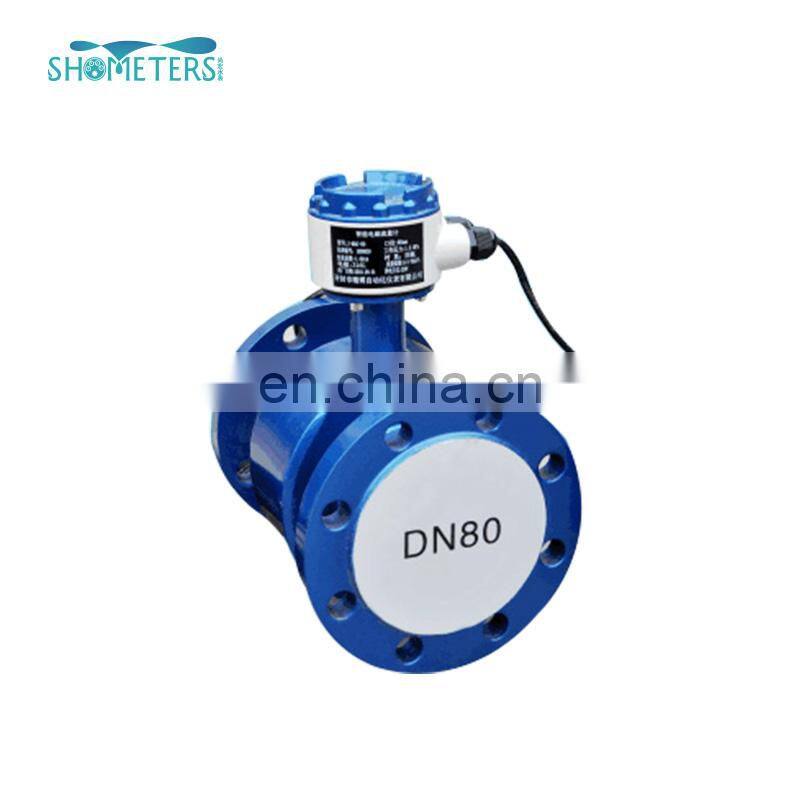

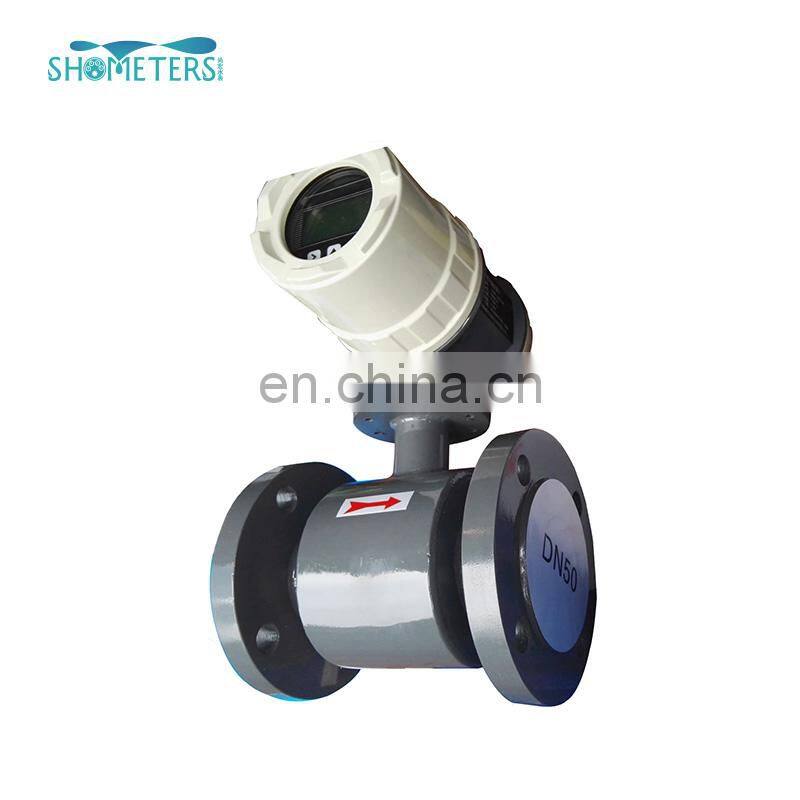

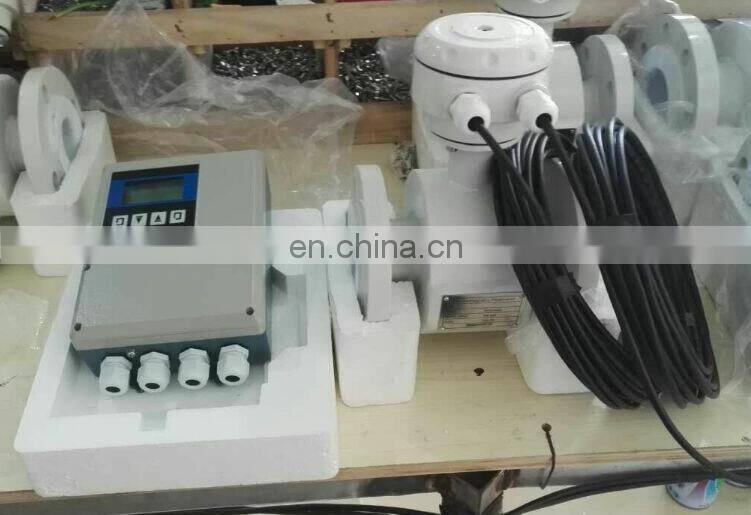

Electromagnetic flowmeter is composed of sensor and converter. It has two forms: compact-type and remote-type. The remote-type also needs a special double-layer shielded cable to connect the converter and the sensor. There are seven kinds of electrode materials and four kinds of lining materials available for sensor.
Technical Specifications | ||||||
|
|
|
|
|
|
|
Peak flow rate |
| 15 m/s |
|
|
| |
|
|
|
|
|
|
|
Accuracy | indication±0.5%(flow rate no less than 0.8m/s) |
| ||||
(refer to accuracy curve) |
| |||||
|
|
|
|
|
| |
|
|
|
|
|
|
|
Conductibility of fluid |
| ≥5μs/cm |
|
|
| |
|
|
|
|
|
|
|
| DN15~DN150 |
|
| 4.0MPa |
| |
Nominal pressure | DN15~DN600 |
|
| 1.6MPa |
| |
DN200~DN1000 |
|
| 1.0MPa |
| ||
|
|
|
| |||
| DN700~DN3000 |
|
| 0.6MPa |
| |
Ambient temperature | sensor |
|
| -25℃~+60℃ |
| |
compact flowmeter and converter |
| -10℃~+60℃ |
| |||
|
|
| ||||
| liner material | Remote-type |
| Compact-type |
| |
| polytetrafluoroethylene | 100℃;150℃(special | 70℃ |
| ||
| order required) |
|
| |||
|
|
|
|
| ||
The liner material and | polyvinyl fluoride | 100℃;150℃(special | 70℃ |
| ||
order required) |
|
| ||||
|
|
|
| |||
maximum temperature of | fluorinated | 100℃;150℃(special | 70℃ |
| ||
fluid | ethylene-propylene(FEP) | order required) |
|
| ||
|
|
| ||||
| polychloropree rubber | 80℃;120℃(special | 70℃ |
| ||
| order required) |
|
| |||
|
|
|
|
| ||
| polyurethane |
| 80℃ |
| 70℃ |
|
|
|
|
|
|
| |
Electrode type | Fixed type(DN150~DN2600); Blade type(DN300~DN1600) |
| ||||
|
|
|
|
|
| |
Material of signal electrode | mo-containing stainless steel,hastelloy B,hastelloy C,titanium |
| ||||
alloy,tantalum alloy, platinum-iridium alloy,stainless steel-coated wolfram |
| |||||
and grounding electrode |
| |||||
| carbide |
|
|
| ||
|
|
|
|
| ||
Flange Material |
| carbon steel |
|
|
| |
|
|
|
|
|
| |
Grounding flange material | stainless steel 1Cr18Ni9Ti |
| ||||
|
|
|
|
|
| |
