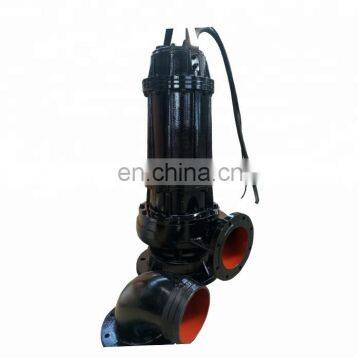

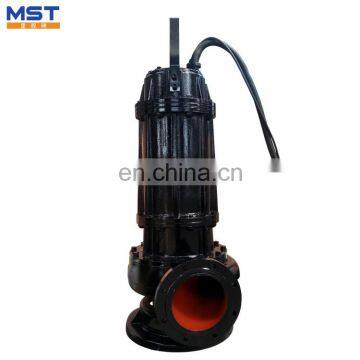

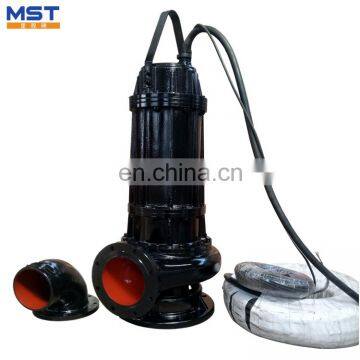

Submersible water pump 6 inch Pump
Condition of use
1. The medium temperature should not be over 40℃, the density no larger than 1200kg/m, and PH value within 5-9.
2.During running, the pump must not be lower than the lowest liquid level.
3.Rate voltage 380v, rate frequencey 50Hz but can custom for 60Hz&400v,440v,460v and so on.The motor can run successfully only under the condition the deviations of both rated voltage and frequency are not over 5%.
4.The maximun diameter of the solid grain going through the pump has not to be larger than 50% of the pump outlet.
| WQ Clean Water Performance | ||||
| Type | Flow | Head | Power | Efficiency |
| m3/h | m | kw | % | |
| 50WQ15-8-0.75 | 15 | 12 | 0.75 | 52 |
| 50WQ25-36-7.5 | 30 | 15 | 7.5 | 48 |
| 65WQ30-10-2.2 | 30 | 10 | 2.2 | 62 |
| 65WQ30-35-7.5 | 30 | 35 | 7.5 | 50 |
| 80WQ50-8-2.2 | 50 | 8 | 2.2 | 60 |
| 100WQ80-7-3 | 80 | 7 | 3 | 64 |
| 150WQ150-10-7.5 | 150 | 10 | 7.5 | 72 |
| 200WQ300-10-15 | 300 | 10 | 15 | 74 |
| 250WQ500-10-30 | 500 | 10 | 30 | 72 |
| 300WQ700-19-55 | 700 | 19 | 55 | 75 |
| 350WQ1100-25-110 | 1100 | 25 | 110 | 76 |
| 400WQ2000-23-185 | 2000 | 23 | 185 | 80 |
| 500WQ3000-15-132 | 3000 | 15 | 185 | 72 |
| 600WQ4000-20-315 | 4000 | 20 | 315 | 77 |
Who we are?
- 20 years experience of manufacture with 5 years oversea service.
- Professional Sand pump and service.
- Advanced equipment with qualified engineers.
- Large foundry to control excellent quality.
small horizontal dry sand filter suction sludge dredge slurry pump for sale
small horizontal dry sand filter suction sludge dredge slurry pump for sale
small horizontal dry sand filter suction sludge dredge slurry pump for sale
