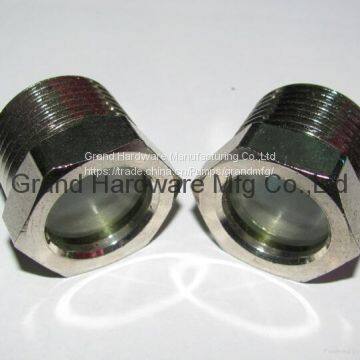

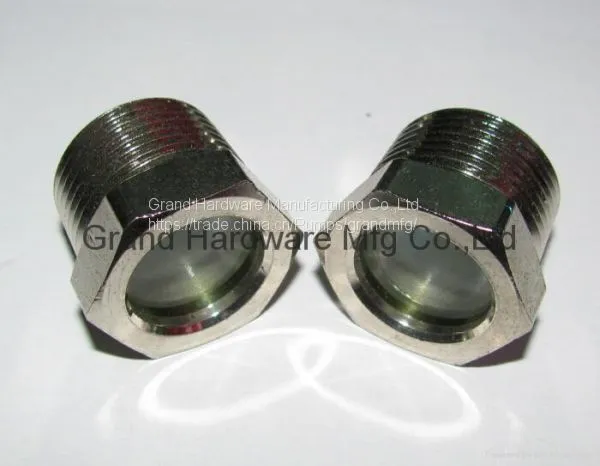

Steel Fused Oil Sight Glass for Refrigeration Equipments
US$ 0.68 - 10
MOQ: 200 Pieces
Key Specifications
Get Latest Price
Brand Name:
grandmfg
Place of Origin:
China
Model Number:
grandmfg
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fused Sight Windows for Vertical Liquid ReceiverUS$ 0.3 - 15.6MOQ: 200 Pieces -
Stainless Steel 304 Flange Sight Glass no Finishing,easy to Mount on EquipmentUS$ 3.68 - 15MOQ: 500 Pieces
-
Steel Fused Sight Window for BizterUS$ 0.68 - 10MOQ: 200 Pieces
-
G 1/2 Carbon Steel Fused Oil Level Sight Glass Male BSP Thread Professional ManufacturerUS$ 0.68 - 10MOQ: 500 Pieces
-
NPT Pipe Thread 1\" Steel Fused Sight Windows Nickel Plated for Refrigeration EquipmentUS$ 0.68 - 10MOQ: 500 Pieces
Brand Name
grandmfg
Place of Origin
China
Model Number
grandmfg
Specifications:
Service: Compatible gases and liquids.
Window: nature glass (3mm to 6mm)
Body: Nickel Plated steet,stainless steel 304 and S.S 316
Reflector: S.S 304 Customers can chosed Plastic float Ball for oil or other liquid.
Temperature: -30'C to 260 'C (500 ‘F).
Max Pressure: 12 MPa(1740Psi)
Connections: NPT,NPTF,UNC,UNF,Metric and BSP (G thread)
Size: 1/4" to 2"
Usage: refrigeration machine, compressor,Hydraulic reservoir,Power Transimission and various machine.
| Item | Fused sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. | |
| Item | Flat flange sight glass |
| Material | steel nickel plated |
| Window | Natural Glass |
| Glass Thickness | 2mm to 5 mm |
| Working Tempreature | : －40℃～200℃ |
| Temperature Assaults Date | : －40℃～180℃ |
| Working Pressure | 2.5, 4.0Mpa |
| Our products are provided with simple structure, novel appearance, high airproof, well poressure, good anti-cold concussion, marked clearly in the indication of liquid location etc characters, and favor of the spacious domestic and overseas air compressor producer deeply. | |
| item | SS sight glasses |
| material | Stainless steel 304,Stainless steel 304L,Stainless Steel 316, Stainless steel 316L |
| O-Ring | Viton,FKM,NBR, Aramid gasket and Copper seal |
| window | Natural Glass,Tempered Glass and Borosilicate Glass |
| Glass Thickness | 2mm to 5 mm |
| Reflectors | Stainless Steel 304 Reflector (Any type you can chose with reflector or without Reflector, You also can add float ball.) |
| Resist Tempreature Range | .-30'C TO 120'C |
| Pressure Range | 5-10 Bar(0.5MPa to 1 MPa). |
| Thread type | NPT,NPTF,UNC,UNF,Metric and BSP(G thread) |
