Product Description

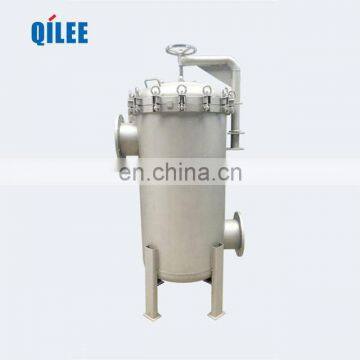

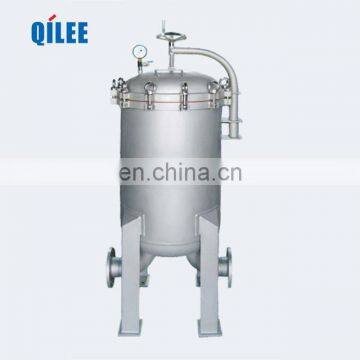

Multi Bag Filter Housing
Filter body is mainly composed of three parts:the filter container,supporting basket and the filter bag,filter process.
Replace or clean the filter bag,just loosen the ring bolt,rotating the hand-wheel lifting cover,can be removed.
Multi bag filter has the characteristics of large capacity,large amount of contamination,obvious filtration effect,simple poeration,low cost operation.

 Waste bag multi high pressure water filter housing





Waste bag multi high pressure water filter housing

High pressure water filter housing Applications
Widely used in chemical industry,industrial wastewater,microelectronics,power plants,textile dyes,papermaking,water prefabricated,paint and ink,food and beverage,cosmetics,chemicals,petroleum products,electroplating,hot solvent,emulsion,ultrasonic cleaning machine,high pressure cleaning machine,industrial water,paint,ink,wax and other industry pre filter or filter.





High pressure water filter housing Features
Can be customized for import and export:

side in side out,side in bottom out,bottom in and out, etc.
Filtration precision:1um-1000um optional.
The design flow can meet the requirements of 50~1000m3/h.
The material of SS304,316L,carbon steel, etc.



 Waste bag multi high pressure water filter housing





High pressure water filter housing selection data sheet

Model

Bag

Filtration Area

m2

D

A

B

C

H

N1/N2

Maximum flow
(m3/H)

Pressure
(Mpa)

QH02P2S

2

1

Ø400

1100

420

650

1600

DN80

80

0.6~1.6

QH03P2S

3

1.5

Ø450

1100

420

700

1600

DN100

120

0.6~1.6

QH04P2S

4

2

Ø500

1100

420

750

1650

DN125

160

0.6~1.6

QH05P2S

5

2.5

Ø550

1150

450

800

1700

DN150

250

0.6~1.6

QH06P2S

6

3

Ø600

1150

450

2000

1700

DN150

240

0.6~1.6

QH07P2S

7

3.5

Ø650

1250

500

2200

1750

DN200

280

0.6~1.6

QH08P2S

8

4

Ø700

1250

500

2230

1750

DN200

320

0.6~1.6

QH10P2S

10

5

Ø800

1250

600

2470

1800

DN250

360

0.6~1.6

QH12P2S

12

6

Ø850

1810

600

2500

1800

DN250

480

0.6~1.6

QH14P2S

14

7

Ø900

1320

650

1200

1850

DN300

560

0.6~1.6

QH16P2S

16

8

Ø1000

1320

650

1300

1850

DN300

640

0.6~1.6

QH20P2S

20

10

Ø1100

1350

650

1400

1900

DN350

800

0.6~1.6



Table number number of the container bag to put up the bag limit, single machine can be 50 above the bag.
The theoretical flow refers to the maximum flow bag initial surface area.
