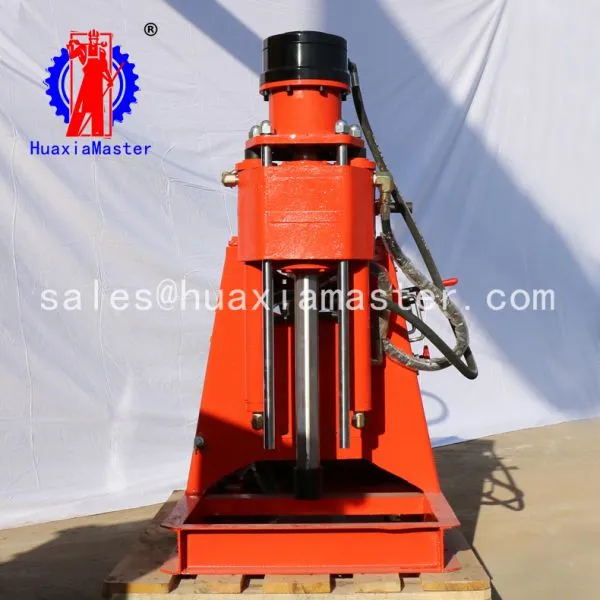

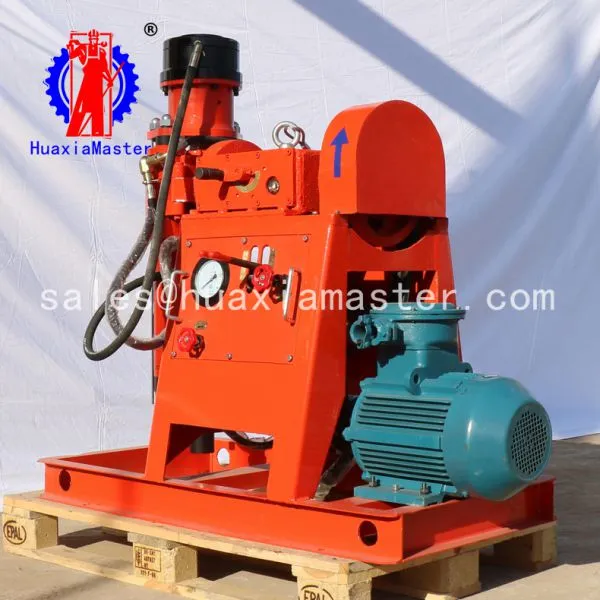

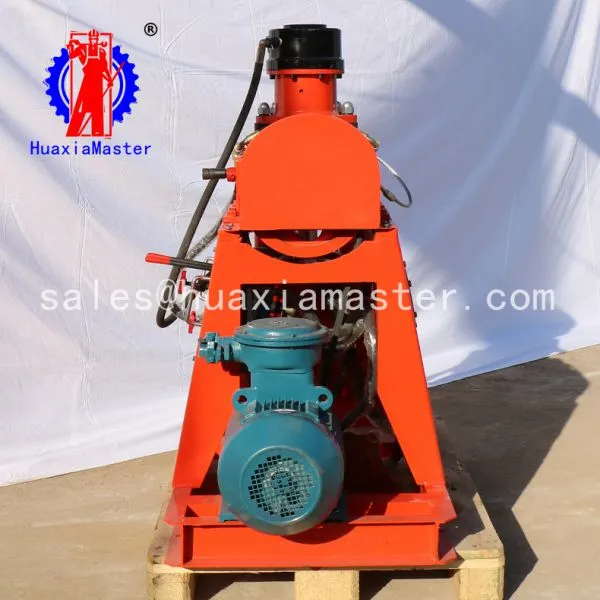

ZLJ350 grouting reinforcement drilling rig
1.Brief introductions of ZLJ350 grouting reinforcement drilling rig
ZLJ350 grouting reinforcement drilling rig is mainly used for grouting reinforcement hole. ZLJ350 grouting reinforcement drilling rig work for under mine, tunnel, subway, slope support. The drilling rig can work different angles of grouting reinforcement and drilling hole.
This drilling rig adopts mechanical drive, hydraulic feed with small size, light weight, The rig is reliable and convenient to operate.
2.Specifications of ZLJ350 grouting reinforcement drilling rig
Drilling diameter |
50-113mm |
Drill rod caliber |
42mm |
Noncoring bit |
50-113mm |
Core bit |
56-113mm |
Vertical rated speed |
340 /192/112 r/min |
Vertical shaft torque rating |
130/ 230 /400 n.m |
Main shaft angle |
0-360 |
Spindle stroke |
400mm |
System pressure rated |
8mpn |
Feed force |
9kn |
Elevating power |
12kn |
Winch lifting capacity |
7.35kn |
Capacity of drum |
26.8m |
Diameter of wire rope |
8.85mm |
Oil pump type |
YBC-12/80 |
Motor power |
5.5kw |
Dimension |
1230*630*1280mm |
Total weight |
430kg |
