1. This  Complete Livestock/Poultry Chicken Feed Line is suitable for producing all kinds of feed pellets for various animals such as chicken, pig, cow, cattle, goat, rabbit and fish, etc.

2. Just use different size of ring die mould to produce different animal feed pellet  according to the requirement of different animal and poultry.

3.  The replacement of the ring die mould is very easy.

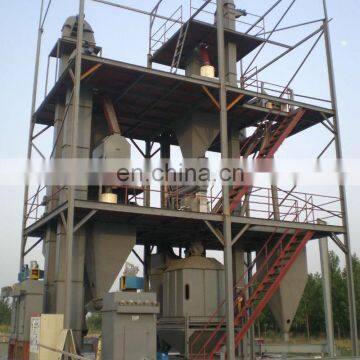

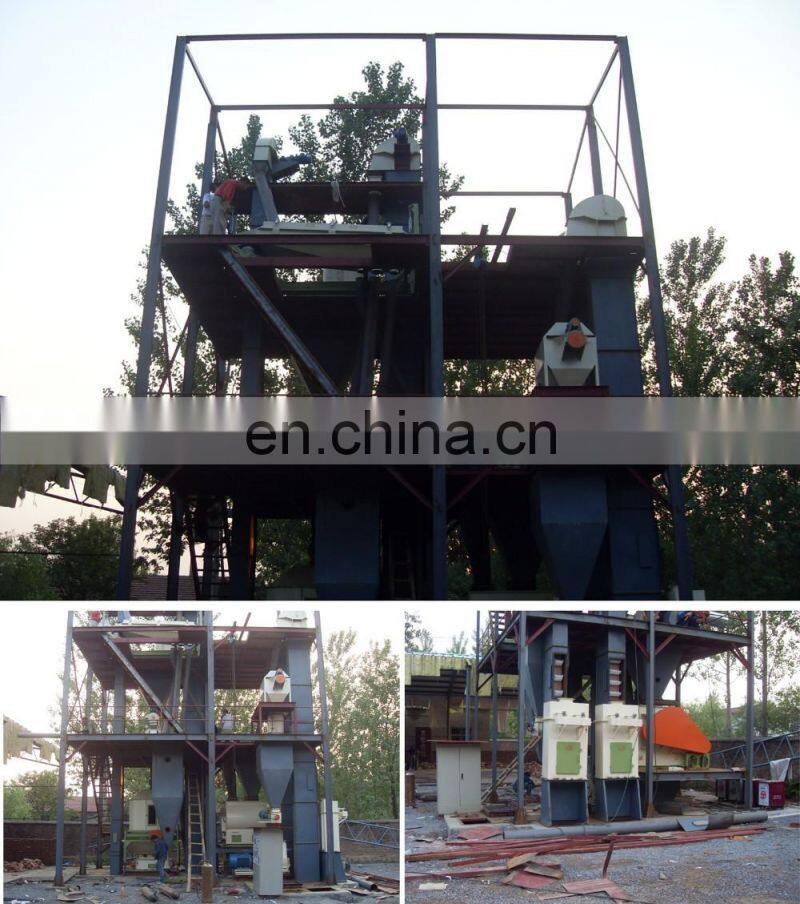

Main Capacity of Feed Production Line

1-2t/h                         5t/h                               10t/h                                    20t/h

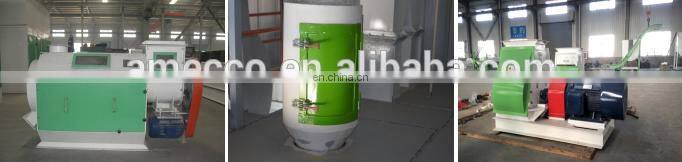

1. Cleaning and Crushing Part

Function: remove the impurities from the raw material to ensure the quality of the final feed pellets and avoid the damage to the machine.

Drum-type Precleaner

Remove the impurities mixed in the raw material.

Permenant magnetic sleeve

  Remove the iron, steel, nails, etc.

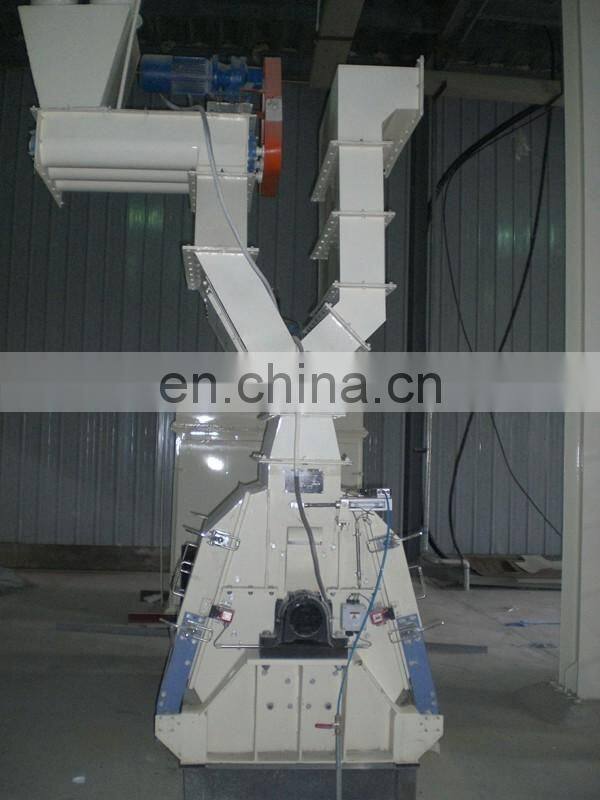

Hammer Mill

Crush the material into small particles suitable for pellet making.

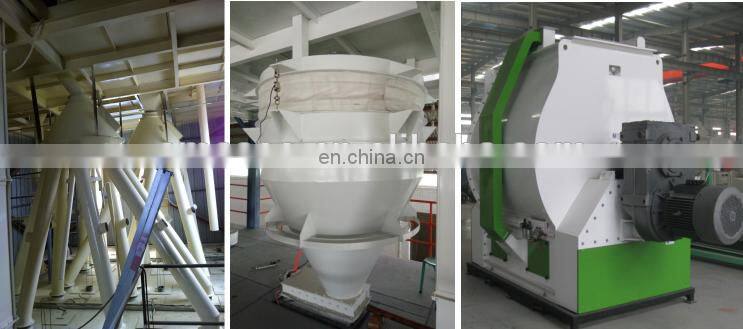

2. Batching&Mixing Part

Function: batch different type raw material into mixer for mixing evennessly according to different animal formula requirements.

Multi-outlet Rotary Distributor

With multi-outlet for distributing different crushed material to pointed silo waiting for mixing.

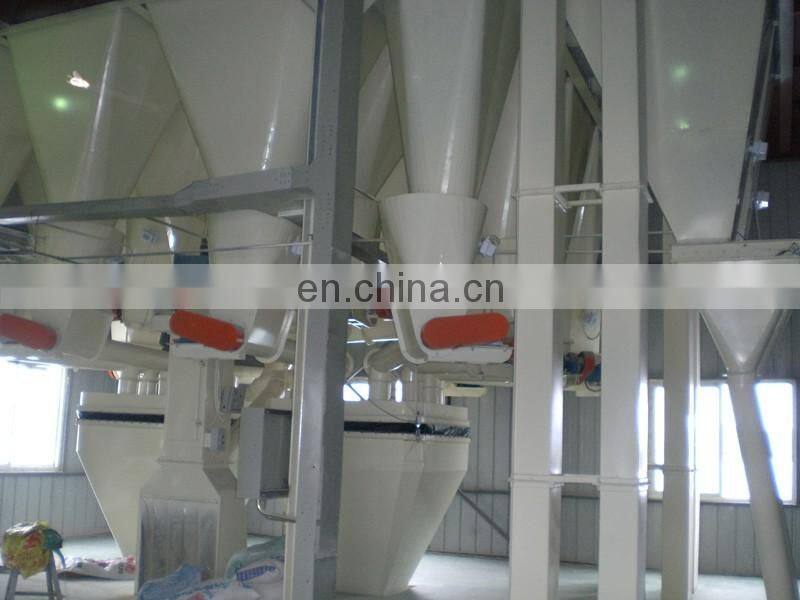

Batching Scale

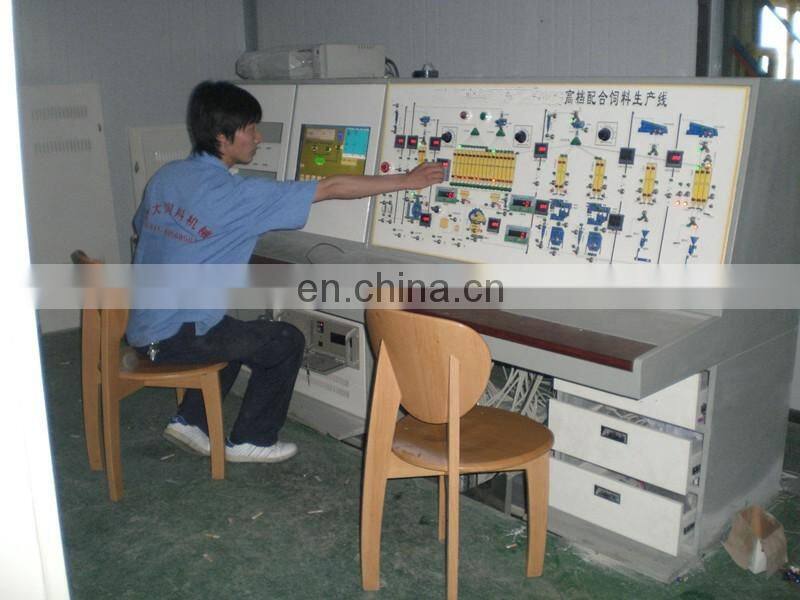

Controlled by computer, 1000kg/batch, when material reaches this capacity, it will be automatically dropped to the hopper under it.

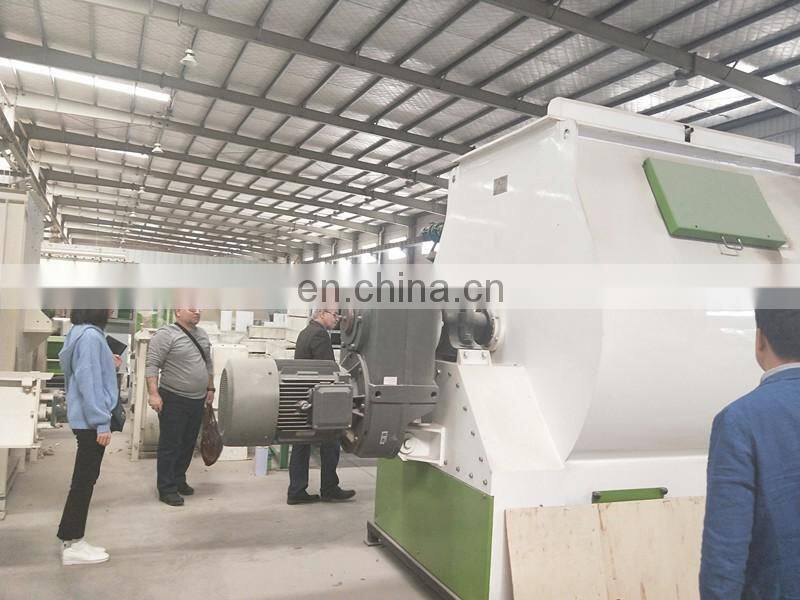

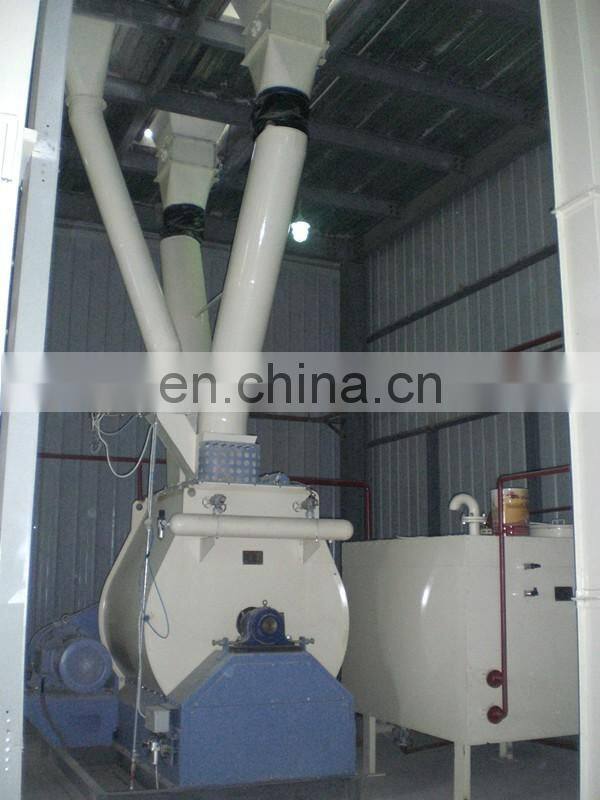

Mixer

Mix different raw material discharged by the batching scale together evennessly.

3. Pelleting&Cooling&Crumbling Part

Function: press the mixed well material into feed pellets, after the cooling of pellets, if needed, the pellets will be crumbed into small pellets.

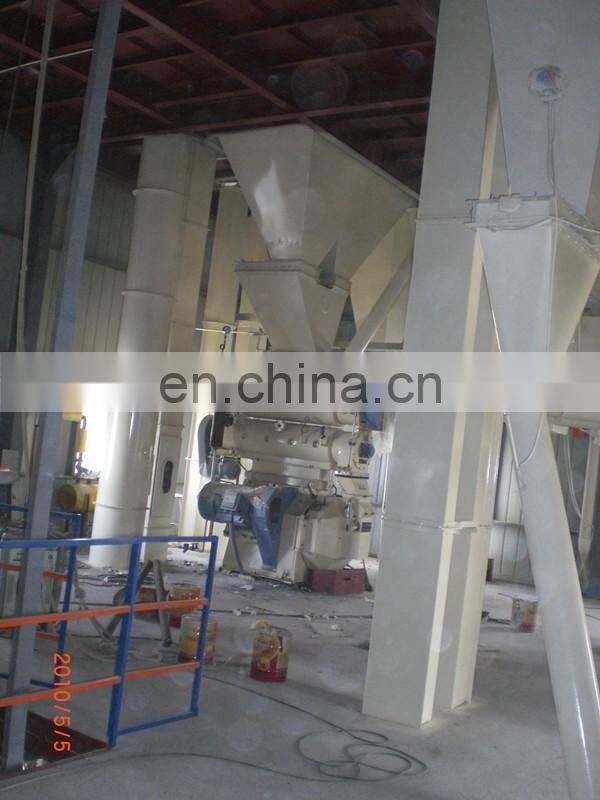

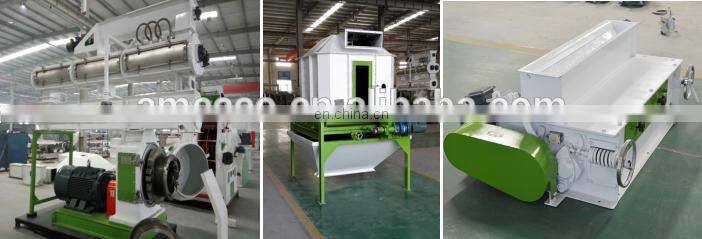

Feed Pellet Machine

Euipped with conditioner, this pellet machine will steam and soft the material first to kill the bacteria and improve the qualitiy and capacity of final feed pellets.

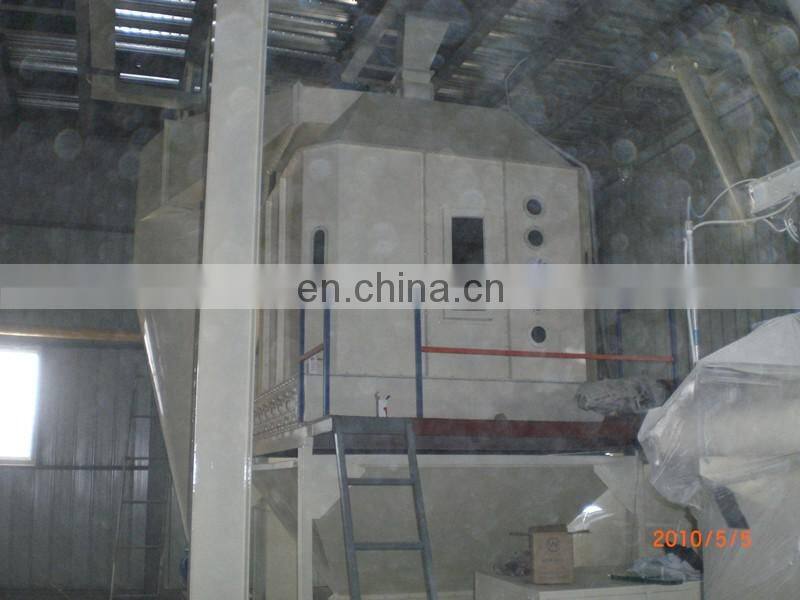

Cooling Machine

For cooling the final pellets to
normal room temperature.

Pellet Crumbling Machine

Crumbling the final feed pellets to small pieces(small animal needs).

4. Pellet Sieving and Packing Part

Mainly needs rotary screen and automatic packing machine to finish this process part.

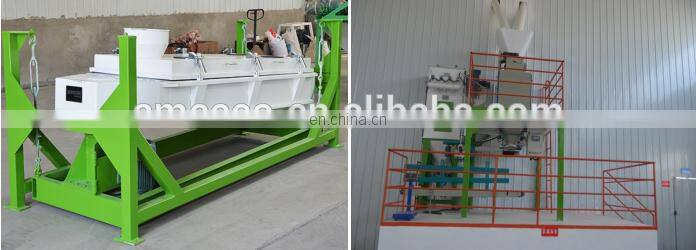

Plane Rotary Screen

Equipped with 3 outlest:
1. the qualified pellets will go directly to the packing machine.
2. the bigger size pellets will go for breaking.
3. the smaller size pellets will go for re-pelleting.

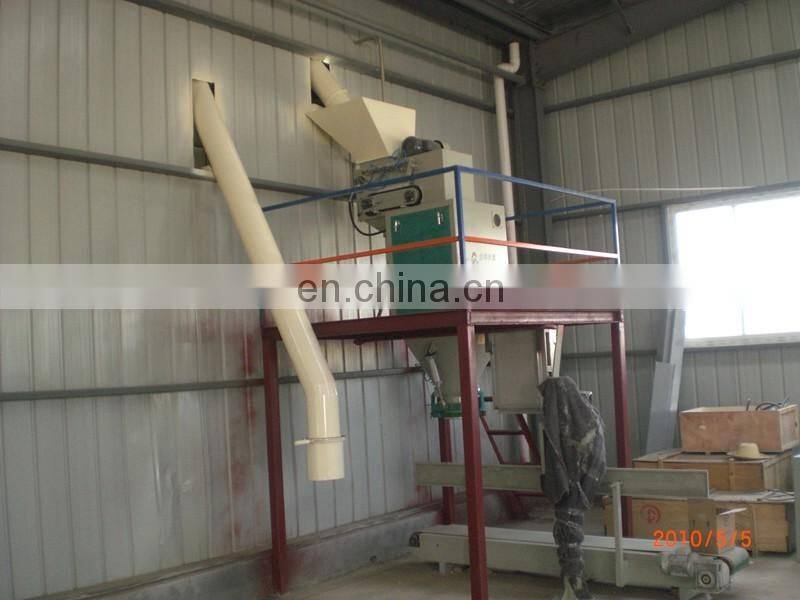

Packing Machine

Packing scope:
5-50kg/bag or according to your needs.
