Home > Products > Potato Chips Line > Semi-automatic French Fries Processing Line Frozen Fresh Potato Chips Making Machine

Semi-automatic French Fries Processing Line Frozen Fresh Potato Chips Making Machine

FOB Price

US$ 15,000 - 20,000 / Plant

1 Plant(Min. Order)

Port Tianjin/Shanghai/Qingdao port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Tonde	Place of Origin	Henan, China
Certification	CE ISO
Warranty	1 year, 1 year	Weight	2210 kg
Dimension(LWH)	15*5 m	Voltage	As per your local voltage
Power(W)	31.6 kw

Product Description

Product Application

This frozen french fries machinery is suitable for making ready-to-sell packed frozen french fries from potatoes. It is also suitable for other fruits and root vegetables, such as sweet potato, yam, cassava, etc.

Main Features

1) Made of stainless steel, durable, healthy and easy to clean.

2) Complete production line, can process fresh potato into bag packed frozen french fries ready to sell.

3) Easy to operate, we send you free recipe for the production.

4) Low investment to make a profitable business.

Production process

1.raw material -->2. peeling and washing --> 3. cutting -->4. blanching-->5. de-watering -->6. frying --> 7. de-oiling --> 8. freezing --> 9. packing

Detailed images

Output 100kg/h Semi Automatic Frozen French Fries Machinery

1. There are 8 machines in this production line, please check the below details.

2. This production line can process 100kg of potatoes per hour.

3. We also have other capacity for your choice: output 200kg/h, 300kg/h and 400kg/h.

	1. Potato Peeling and Washing Machine Model: TP10 Power: 0.75kw/220v Weight: 60kg Dimension:690430860mm Usage: 1. Corundum lining type 2. Can complete cleaning and peeling at the same time 3. High efficiency and low waste
	2. Potato Cutting Machine Model: QS-400 Power: 0.75kw/220v Weight: 60 kg Dimension: 650510700 mm Usage: 1. Can cut potato into chips or strips 2. The slice thickness and cutting size can be adjusted by your needs
	3. Blanching Machine Model: PT-500 Power:12kw/380 Weight:50kg Dimensions:700700950mm Usage: 1. To rinse and blanch the sliced potato slices or strips 2. Protect chips or fries from changing color 3. Protect the natural taste

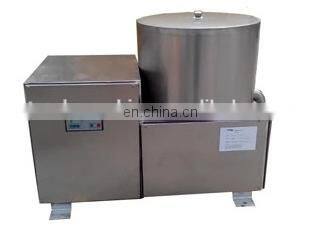

	4. De-watering Machine Model: TS-500 Power: 0.75kw/380v Weight: 400kg Dimension:940x560x830mm Volume:8-10kg Usage: 1. Centrifugal principle 2. Dehydration before frying can largely shorten frying time, make potato chips more tasty

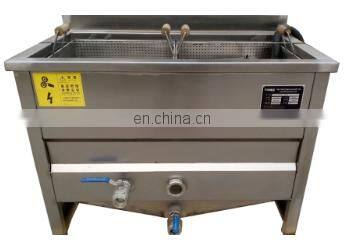

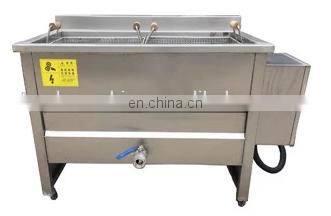

	5. Frying Machine Model:DYZ-500 Power:21kw/380v Weight:120kg Dimension:1380x620x950mm Usage:1. Oil-water mixture frying machine 2. Oil on the top to fry chips, water on the bottom to accept the waste after frying 3. Oil temperature is controlled precisely 4. After working,you can discharge the water and the waste will be discharged together with the water
	6. De-oiling Machine Model:TY-500 Power:0.75kw/380v Weight:400kg Dimension:940x560x830mm Volume: 8-10kg Usage: 1. Centrifugal oil removing machine 2. Take off the oil of fried potato chips, overcome the disadvantage of high oil rate and greasy to improve the taste of chips
	7. Freezing Machine Model:SD-800 Power:3.6kw/380v Dimension:200020002300mm Usage: Freeze the deoiled french fries in a short time, low noise, low consumption, can save 10%-50% energy , equipped with cold source(air cooling),easy to install and can save your cost

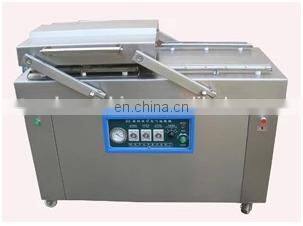

	8. Packing Machine Model:DZ-400 Power:1.1kw/380v/220v Overall dimension:600600850mm Weight:120kg Usage: 1. Fill nitrogen into the bag when packaging, which can effectively prevents chips from broking to prolong shelf life 2. Can complete air inflation, packaging, inkjet printing at the same time

Packaging & Shipping

1. All machines, which is less than a full container, are packed by the standard wooden case for exporting. So it is safe and strong enough for a long journey from our factory to your place.

2. If all the machines are shipped by a full container, the container will be loaded in our factory by our workers. Also, all the machines will be fixed onto the container.

Our Services

1 ) At present, our oil press machine been improved many times and have good performance. Parts are well-known brands at home and abroad, with quality assurance.

2 ) Before the sale, the company must patiently answer the doubts in detail.

3 ) In the sale, The company guarantees that the products are produced and inspected in strict accordance with the relevant national standards and strict international corporate standards, and delivered to customers with satisfactory quality according to quality and quantity.

4 ) The company's product preserve period is one year,The quality problem arising from non-human factors during the warranty period shall be the responsibility of the supplier

Certifications

FAQ

1) When can I get the price?

We usually quote within 24 hours after we get your inquiry. If you are very urgent to get the price, please call us or tell us in your email so that we will regard your inquiry priority.

2) How do you make your price?

We make the price according to our comprehensive costing. And our price will lower than the trade company because we are manufacturer. You will get competitive price and better quality.

3) Can you guarantee your quality?

Of course. We are the manufacture factory. More important, we put a high value on our reputation. Best quality is our principle all the time. You can be assured on our production completely.

4) How long does the whole procedure being worked out?

After you place a order, the production handling time is about 30-45 days. We need 7 days to prepare all the stuff then 30 days for manufacturing.

5) What about the transportation and delivery date?

Normally we use shipment to transport the goods. It is about 25-40 days. It also depends on which country and port you are. If there are some emergencies we can send the goods via air express, as long as you afford the traffic expense.
