Natural Soap Skin Whitening Bar Soap Making Machine
- Tianjing Qingdao
- T/T Credit Card
You May Like
-
Multifunctional Automatic Small Soap Making Machine
-
Large Capacity Automatic Toilet Bath Bar Solid Soap Making Machine Soap Production Line
-
Multifunctional Best Selling Hydraulic Spray Machine Hydraulic Spraying Machine for Polyurea
-
High Capacity Factory Price Hydraulic Spraying Machine
-
Lowest Price High Quality Pig Dehair Machine Pig Hair Removing Machine
-
Factory Directly Supply Best Price Pig Process Machine
Product Details
| Brand Name | RB | Place of Origin | Henan, China | |
| Certification | ISO | |||
| Warranty | 1 Year | Dimension(L*W*H) | Custom Made | |
| Condition | New | Product Type | Soap | |
| Voltage | 220V/380V | |||
| Power(W) | 0.75KW~45KW | Max. Loading Capacity | 5000L | |
| Additional Capabilities | Granulating | Mixer Type | Agitator |
Product Description
bar soap making machine
I. Brief introduction
This whole set of bar soap making machine is designed to produce toilet soap. Material is soap noodle (soap grains).
II. Product process
1. Mix all materials by mixing agitator, grind soap noodles by three-roller mill, make soap materials into soap bar by vacuum plodder, and cut soaps by stamping machine.
2. Distribution boxes are used to control all the motors of machines, and conveyors are used to transport soap materials.
3. Water pump is used to make the water to cool down the vacuum plodder, and vacuum pump is used to vacuum the soap materials.
4. The parts of mixing agitator and vacuum plodder that touch the soap materials are made of stainless steel 304.
III.Specification
1.Finished-products conveyor: Conveying finished-products
2.Soap pneumatic rotary printing-cutting machine: Cutting and printing
3.Control box
4.Double-screw vacuum plodder: Vacuum plodding
5.The hopper of double-screw vacuum plodder
6.Finished-product conveyor: Conveying soap pieces
7.Trio-Muller: Rubbing soap material
8.The hopper of trio-Muller
IV. Parameter
Item | Specification | Power | Voltage | Quantity | |
Oil melting machine | 6m³ |
|
|
| 1 |
Pump |
| 3kw | 50Hz | 380v | 1 |
Soap melting machine | 3000×3200mm | 5.5kw |
|
| 2 |
Soda tank | 1250×2000mm |
|
|
| 1 |
Steel tube | 65,40,25,57 |
|
|
|
|
Valve | 65,40,25,57 |
|
|
|
|
Soap Mixing machine | 1300×1800mm | 5.5kw |
|
| 1 |
Heater | 325×3500mm |
|
|
| 1 |
Dryer | 1500mm | 13.2kw | 50Hz | 380v | 1 set |
Pellet machine | 245 | 15kw | 50Hz | 380v | 1 set |
Separator | 80 |
|
|
| 1 set |
Cooling machine | 98 |
|
|
| 1set |
Tank | 70 |
|
|
| 1 |
Soap cutter |
|
|
|
| 1 |
Separator | 40 |
|
|
| 1 |
Grinding machine | 375 | 7.5kw | 50Hz | 380v | 1 |
Extruding machine | 273 | 18.5+11kw | 50Hz | 380v | 1 |
Pump | W5 | 15kw | 50Hz | 380v | 1 set |
Conveyor |
| 2.2kw | 50Hz | 380v | 2 |
Pump |
|
| 50Hz | 380v | 1 |
Conveyor |
| 2.2kw | 50Hz | 380v | 1 |
Extruding machine | 245 |
|
|
|
|
Crutcher Pan | 150,2.5T/h | 5.2×2kw | 50Hz | 380v | 2 |
Mixer |
| 3kw | 50Hz | 380v |
|
Boiler | 1T |
|
|
|
|
Packing machine |
| 3kw | 50hz | 380v | 1 |

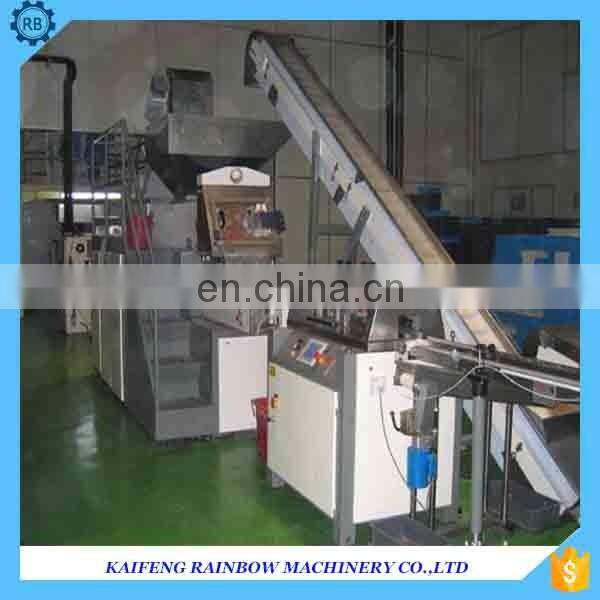

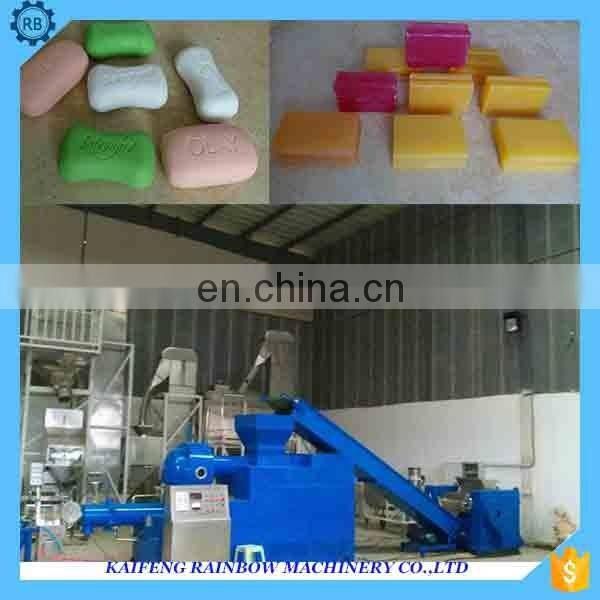

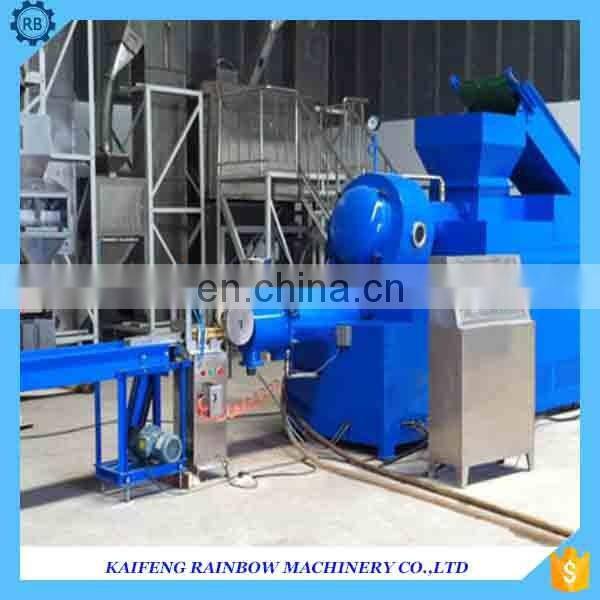

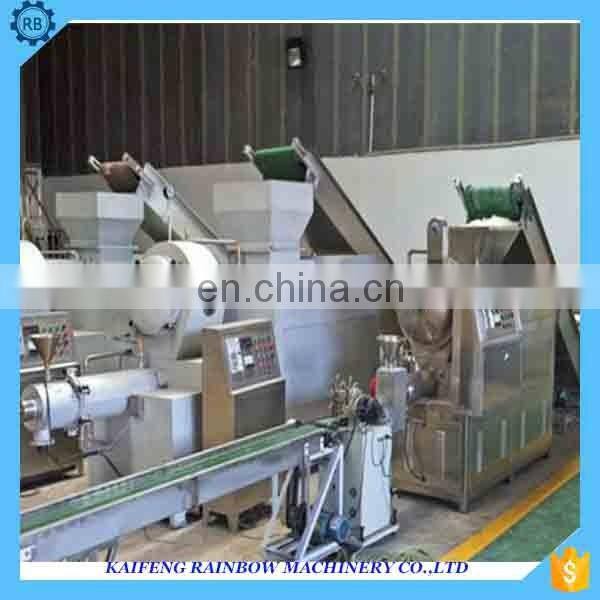

Picture of bar soap making machine
About packaging, for small size or single machine, we can offer free fumigation wooden case with steel frame, it not only can protect machine from damage, but also avoid checking when exporting.
For multiple machines or production line, it's better to loaded in standard container 20GP, 40GP, 40HQ, usually it needs wrapped with plastic firstly, then loaded in container.
we can offer EXW, FOB and CIF terms.
EXW: You arrange the shipping details from our factory to your port by yourself.
FOB: We arrange freight transport to Qingdao, Shanghai or other ports of China, then you arrange the shipping details from China port to your country port.
CIF: We arrange all shipping details to your country port, and ensure machines smooth arrival.

Kaifeng Rainbow Machinery Co., Ltd. is a domestic large-scale new energy environmental protection equipment manufacturers in China. The registered trademark is "Rainbow".
Our company has combined Research and Development, Production, Sales and Service in one, and our main product have Wood Crushing and Recycling Workstation, New Energy Particle Machinery, Feed Machinery, Organic Fertilizer Machinery, Broken machinery. Totally, have a lots of products, more than 300models, which make our company the most professional development and production of high-tech enterprises of new energy environmental protection machinery manufacturer in China.
1. Help you choose the most suitable machine.
2. Making the machine according to your request.
3. Give you machine’s details and video for help you use the machine more better.
4. One year warranty
5. Quality problem,we will send you the accessories.
6. Free repair whole using life without extra charge.
1. What's the delivery time?
We will deliver the product in 7 days after receiving the deposit.
2. What's your payment terms?
We can accept various payment terms if it is convenient for you.
3. what's your MAQ?
Our MAQ is 1 piece.
4. What's the lifetime of the wearing parts?
The material of our product is of high quality, and the lifetime of our wearing parts is twice longer than the others,including the roller skin, die and bearing.
5. What is your warranty?
12 months except the spare parts.
6. Will you send engineers to install the plant?
Of course yes,but at an extra cost will be paid by customers. Or you can get local contractors to do the commissioning and we send one supervising engineer.
7. Do you have some foreign customers using your equipments?
Yes , we have customers all over the world.
