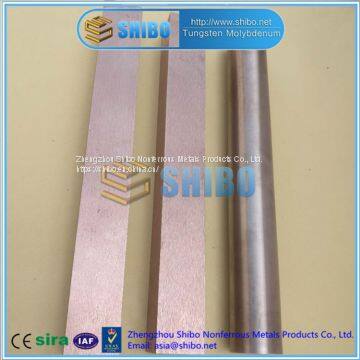

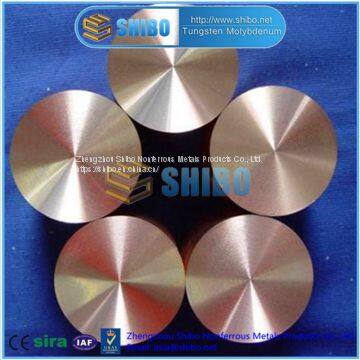

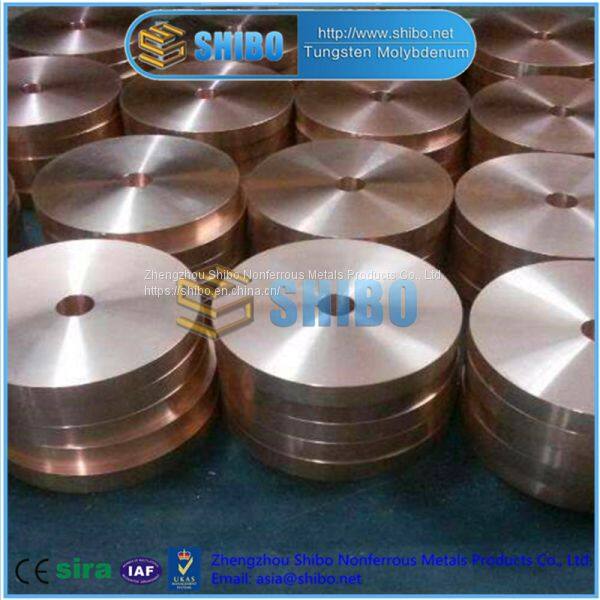

Tungsten Copper Alloy Sheet / Plate / Rod / Bar / Pipe (Cu-W)
Tungsten copper alloy is the composite of tungsten and copper which own he excellent performance of tungsten and copper .
Specification
Name | Chemical composition(%) | Physical properties | ||||
Cu | Impurity | W | Density(g/cm)≥ | Hardness (HB)≥ | Resistivity(µΩ.cm)≤ | |
Copper-tungsten(50) | 50±2.0 | ≤0.5 | allowance | 11.85 | 115 | 3.2 |
Copper-tungsten(55) | 45±2.0 | ≤0.5 | allowance | 12.3 | 125 | 3.5 |
Copper-tungsten(60) | 40±2.0 | ≤0.5 | allowance | 12.75 | 140 | 3.7 |
Copper-tungsten(65) | 35±2.0 | ≤0.5 | allowance | 13.3 | 155 | 3.9 |
Copper-tungsten(70) | 30±2.0 | ≤0.5 | allowance | 13.8 | 175 | 4.1 |
Copper-tungsten(75) | 25±2.0 | ≤0.5 | allowance | 14.5 | 195 | 4.5 |
Copper-tungsten(80) | 20±2.0 | ≤0.5 | allowance | 15.15 | 220 | 5 |
Copper-tungsten(85) | 15±2.0 | ≤0.5 | allowance | 15.9 | 240 | 5.7 |
Copper-tungsten(90) | 10±2.0 | ≤0.5 | allowance | 16.3~16.75 | 260 | 6.5 |
High Specific Gravity (W94) | 6±2.0 | ≤0.5 | allowance | 16.8~17.2 | ||
Character
1. High density
2. Good machinability
3. High absorption capacity against x-rays
4. Harmless to the health
Application
1) Arcing contacts and vacuum contacts in high and medium voltage breakers or vacuum interrupters
2) Electrodes in electric spark erosion cutting machines
3) Heat sinks as passive cooling elements of electronic devices
4) Electrodes for Resistance Welding
