cnc cutting flexible material glass fiber automatic cutting machines
cnc cutting flexible material glass fiber automatic cutting machines
Function Of Torayca Carbon Fiber Strand Cutter / Fiber Cutting Machine
This fiber chopper machine can chop all kinds of fiber like aramid fiber,glass fiber,carbon fiber,polypropylene fiber,non woven fabrics and so on.
Chopping length:1-100mm(adjustable)
Chopping speed:adjustable
Blade is made of alloy,very durable,with rolling that can feeding automatically.
Technical parameters of Acrylic ropes Cutter/ Acrylic fiber cutting machine:
Small capacity
Model |
MNF-140 |
MNF-160 |
Cutting Length |
1-100mm |
1-100mm |
Feeding width |
140mm |
160mm |
Cutting Thickness |
16mm |
25mm |
Cutting speed |
140-180times/min |
200-260times/min |
Capacity(Base on different material ) |
20-200 kg/h |
40-500 kg/h |
Motor power |
2.2kw |
3-4.0kw |
Weight |
500kg |
800kg |
Big capacity
Model |
MNF-220A |
MNF-520 |
Power |
3kw |
7.5kw |
Voltage |
380V 50HZ |
380V 50HZ |
Max chop width |
22cm |
52cm |
Max thickness |
50mm |
40mm |
Chop size |
1-100mm |
1-100mm |
Capacity |
3T/day |
5T/day |
Chop speed |
180times/min |
180times/min |
Machine size |
1100*700*1100mm |
1700*1150*1250mm |
Weight |
700kg |
850kg |

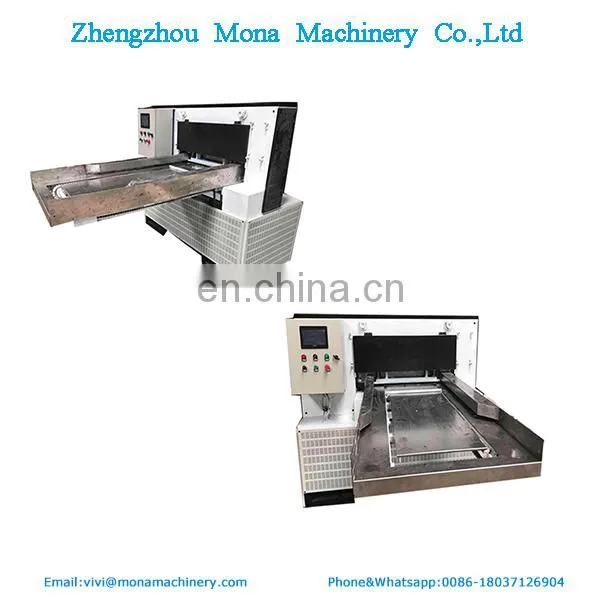

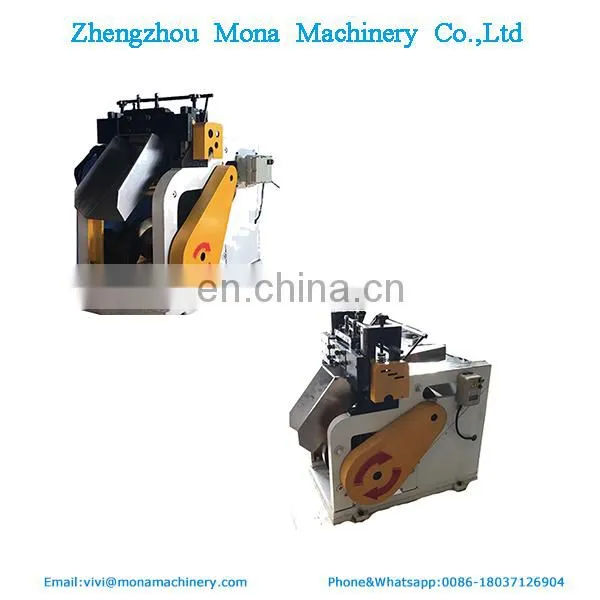

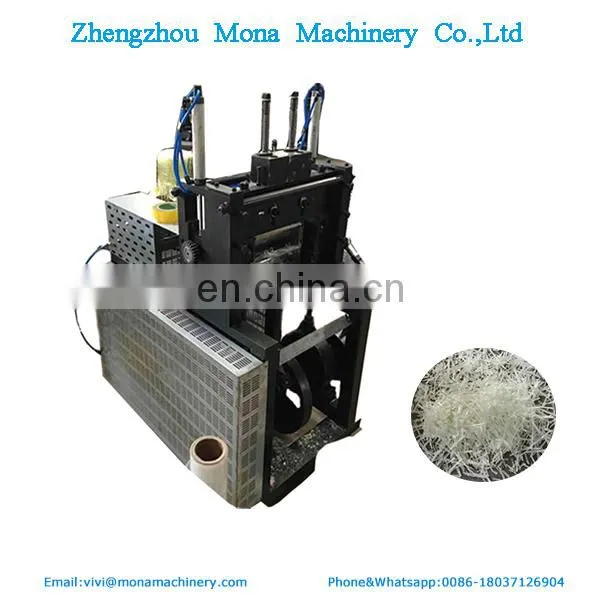

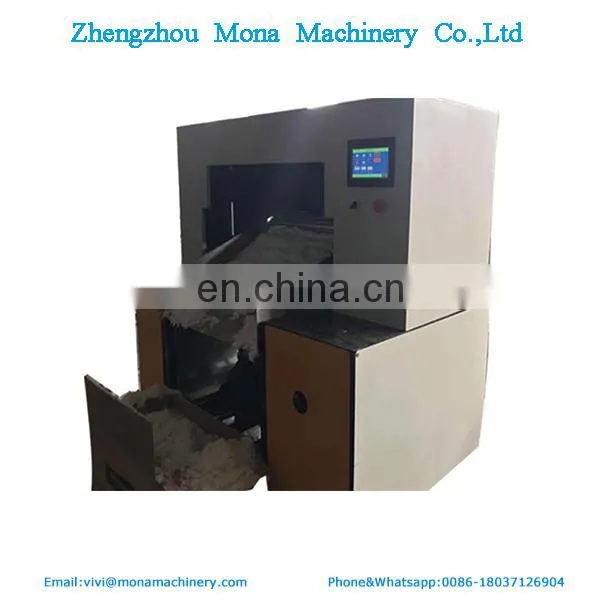

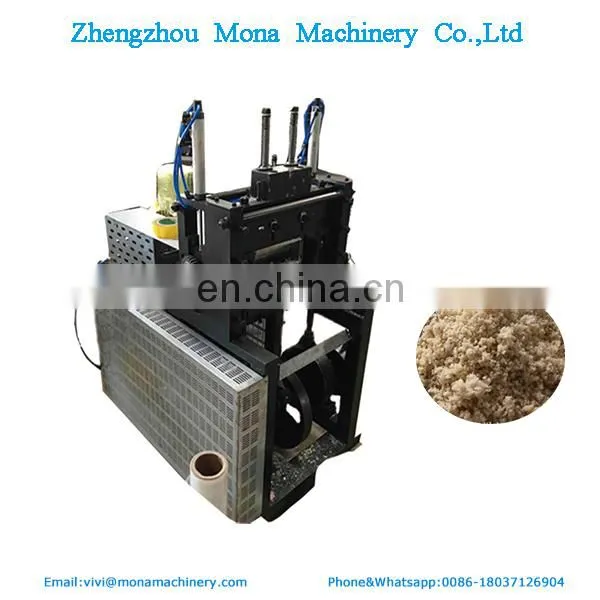

Picture shows of Acrylic ropes Cutter/ Acrylic fiber cutting machine:
Send Inquiry to This Supplier
