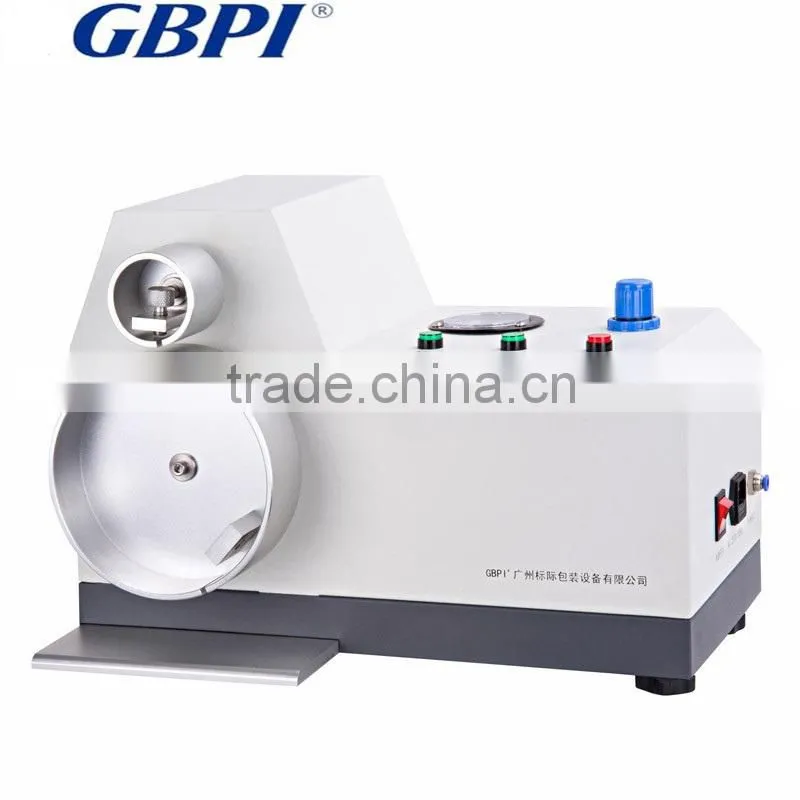

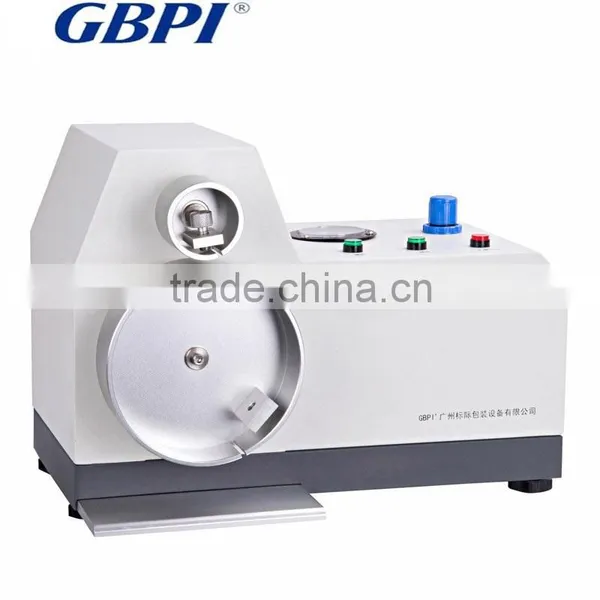

Gx-B1 Printed Ink Rubbing Fastness Tester
Printed Ink Rubbing Fastness Tester
Function and usage:
It is designed to test the fastness combination of gravure printing ink of plastic film and cellophane decorating printed production (including the composite film prints). It can also be used for vacuum coating, surface coating, composite and other related processes to form the surface layer attached to the state tests.It meets GB7707 (gravure printing ink decorating with color fastness) standard.
Application:
*Printed products *Cellophane
Technical specifications:
Rolling speed: 300mm/min Roller load: 20N ± 0.5N
Roll number: 3 (the maximum can be set up 999 times)
Disk A size: Φ170mm, width 55mm
Disk B size: Φ65mm, width 55mm
Plate pressure: 100N
Peeling speed: 0.8m/ s

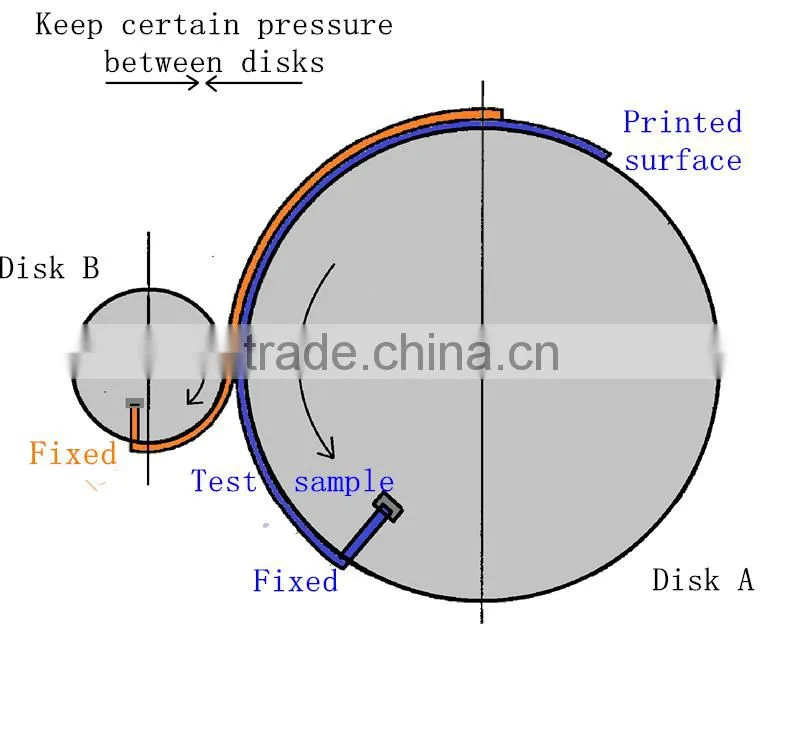

Working principle diagram:
Service:
1. One year guarantee and all lifetime techinical support
2. USA, Australia Aisa Local agent for service
3. Speedy reply, 12hrs response to customer questions
4. Software free update
5. Minor maintenance ---parts ship within 24 hrs
6. Major maintenance---Technical will be sent within 15 days
