Horizontal Machines Cnc Lathe Machine Price Sale in Dubai

FOB Price

US$ 36,000 - 45,000 / Unit

1 Unit(Min. Order)

Port Qingdao Port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

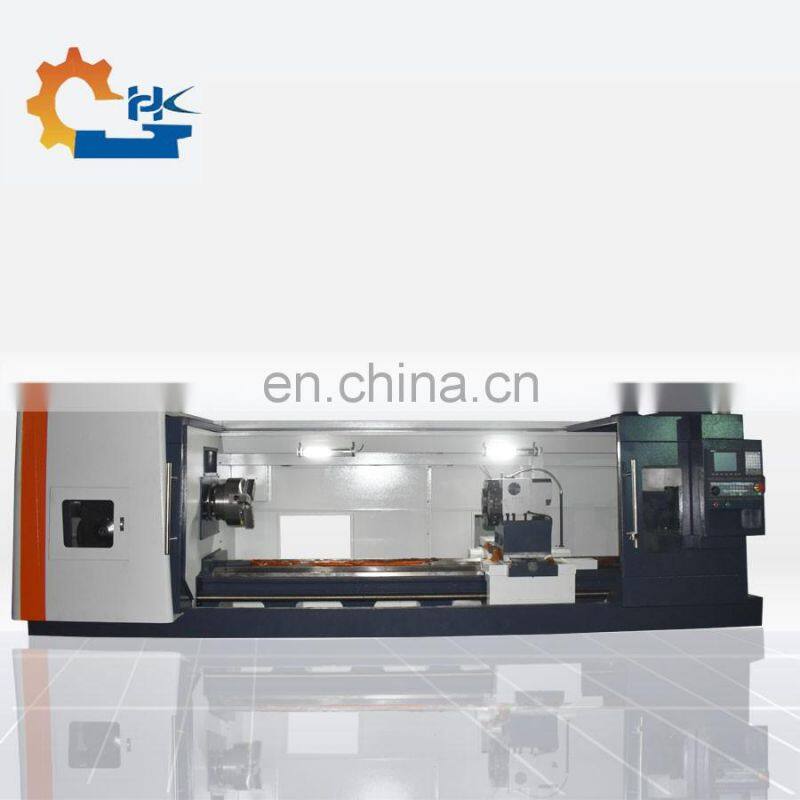

Horizontal Machines Cnc Lathe Machine Price Sale in Dubai

1. This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo.

2. All the two axis are the sliding (hard) rail.

3. The structure and dimension of axis are compact and reasonable.

4. Spindle is gear transmission and fvariable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once.

Detailed Images

Name: Tool turret

Original: China
Standard : 4 station electric tool turret
Option: 6/8 station tool turret
8 station hydraulic tool turret

Name: CNC Controller System

Brand: Siemens/ Fanuc /KND/ GSK/ MITSUBISHI / SYNTEC for your option

Chuck

Name: Chucks
Brand: China
Original: China
Standard configuration is 3/4 manual self centering chucks
And hydraulic chucks for option

Casting body & Ball Screw

Name: Casting body
Original: China &Taiwan
High hardness rail way and large ball screw
Also can be customized as client's detailed requirements

Name: Tailstock

Original: China
Standard : manual operate tailstock
Optional: hydraulic and electric moving tailstock

Technical Parameter

Parameter	Unit	CKNC6163	CKNC6180	CKNC61100	CKNC61125
Max. swing over bed	mm	630	800	1000	1250
Max. swing over slide	mm	350	480	600	850
Max. processing length	mm	1500	1500/3000/6000	1500/3000/6000	1500/3000/6000
Guideway width of bed	mm	550	550	660	660
X axis travel	mm	400	400	520	625
Z axis travel	mm	1000,1500,2000,3000	1500,2000,3000,4000	1500,2000,3000	1500,2000,3000
X/Z axis lead screw	m/min	4/7	4/7	4/5	4/5
X/Z axis rapid speed	mm	0.025/0.03	0.025/0.03	0.025/0.03	0.025/0.03
X/Z positioning precision	mm	0.01/0.015	0.01/0.015	0.01/0.015	0.01/0.015
X/Z Repositioning precision		IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Processing precision		0.01	0.01	0.01	0.01
Surface roughness		Ra1.6	Ra1.6	Ra1.6	Ra1.6
Spindle speed range		Three steps frequency, 40-125, 110-350, 290-950	Three steps frequency, 40-125, 110-350, 290-950	Three steps frequency, 15-500	Three steps frequency, 15-500
Spindle head type		C11	C11	C11	C11
Dia. of spindle Thru-Hole	mm	105	105	130	130
Spindle hole tapper	mm	1:20(metric system)120	1:20(metric system)120	1:20(metric system)140	1:20(metric system) 140
Chuck	mm	320(12")/optional 400,500	400(16")	500(20")	500(20")
Spindle motor power	kw	11	11/15	15	15
Tool holder type		Vertical 4 stations ( optional: horizontal 6 stations)
Turning tool size	mm	30*30	30*30	35*35	35*35
Tailstock sleeve travel	mm	250	250	250	250
Tailstock sleeve dia.	mm	100	100	100	100
Tailstock sleeve taper	mm	Morse 5	Morse 5	Morse 6	Morse 6
Controller		Siemens (standard configuration), Fanuc, Syntec, KND, GSK
N.w	kg	3600	3900	600 8500 13500
Dimension	m	3.71.51.6	3.71.51.6	4.21.921.8(1.5m) 4.751.921.8(2m) 5.751.921.8(3m)

Packing & Delivery

Inner use protective material to make the packages.

Outer use wooden box and steel frame to make the immobilization.

Our Service

Pre-Sales Service

* Inquiry and consulting support.
* Technology support.
* View our Factory.
* Other necessary services
* Certificates showing and supply as requirements

After-Sales Service

* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
* 12 months warranty for whole set machine and all life consulting services

Our Company

Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
