CK6180 Multi-Functional Fanuc Cnc Lathe With Pneumatic Chuck for Metal Spare Parts

FOB Price

US$ 10,000 - 15,000 / Unit

1 Unit(Min. Order)

Port Qingdao Port China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

CK6180 Multi-Functional Fanuc Cnc Lathe with Pneumatic Chuck for Metal Spare Parts

1. This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo.

2. All the two axis are the sliding (hard) rail.

3. The structure and dimension of axis are compact and reasonable.

4. Spindle is gear transmission and fvariable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once.

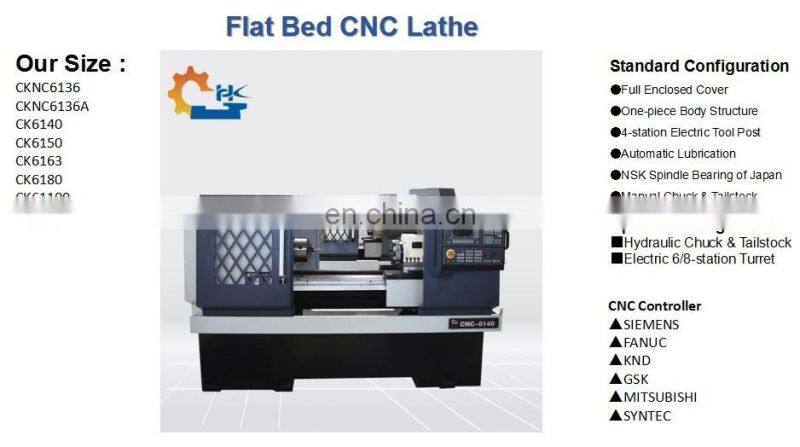

Detailed Images

Technical Parameter

Parameter	Unit	CKNC6163	CKNC6180	CKNC61100	CKNC61125
Max. swing over bed	mm	630	800	1000	1250
Max. swing over slide	mm	350	480	600	850
Max. processing length	mm	1500	1500/3000/6000	1500/3000/6000	1500/3000/6000
Guideway width of bed	mm	550	550	660	660
X axis travel	mm	400	400	520	625
Z axis travel	mm	1000,1500,2000,3000	1500,2000,3000,4000	1500,2000,3000	1500,2000,3000
X/Z axis lead screw	m/min	4/7	4/7	4/5	4/5
X/Z axis rapid speed	mm	0.025/0.03	0.025/0.03	0.025/0.03	0.025/0.03
X/Z positioning precision	mm	0.01/0.015	0.01/0.015	0.01/0.015	0.01/0.015
X/Z Repositioning precision		IT6-IT7	IT6-IT7	IT6-IT7	IT6-IT7
Processing precision		0.01	0.01	0.01	0.01
Surface roughness		Ra1.6	Ra1.6	Ra1.6	Ra1.6
Spindle speed range		Three steps frequency, 40-125, 110-350, 290-950	Three steps frequency, 40-125, 110-350, 290-950	Three steps frequency, 15-500	Three steps frequency, 15-500
Spindle head type		C11	C11	C11	C11
Dia. of spindle Thru-Hole	mm	105	105	130	130
Spindle hole tapper	mm	1:20(metric system)120	1:20(metric system)120	1:20(metric system)140	1:20(metric system) 140
Chuck	mm	320(12")/optional 400,500	400(16")	500(20")	500(20")
Spindle motor power	kw	11	11/15	15	15
Tool holder type		Vertical 4 stations ( optional: horizontal 6 stations)
Turning tool size	mm	30*30	30*30	35*35	35*35
Tailstock sleeve travel	mm	250	250	250	250
Tailstock sleeve dia.	mm	100	100	100	100
Tailstock sleeve taper	mm	Morse 5	Morse 5	Morse 6	Morse 6
Controller		Siemens (standard configuration), Fanuc, Syntec, KND, GSK
N.w	kg	3600	3900	600 8500 13500
Dimension	m	3.71.51.6	3.71.51.6	4.21.921.8(1.5m) 4.751.921.8(2m) 5.751.921.8(3m)

Packing & Delivery

Our Company

Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company. We are located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales.

It was set up by the former Jinan Machine tools factory employees. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

Certifications

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
