Syntec Diagram of Conventional Cnc Lathe Machine Specification CK6140

Syntec Diagram of Conventional Cnc Lathe Machine Specification CK6140

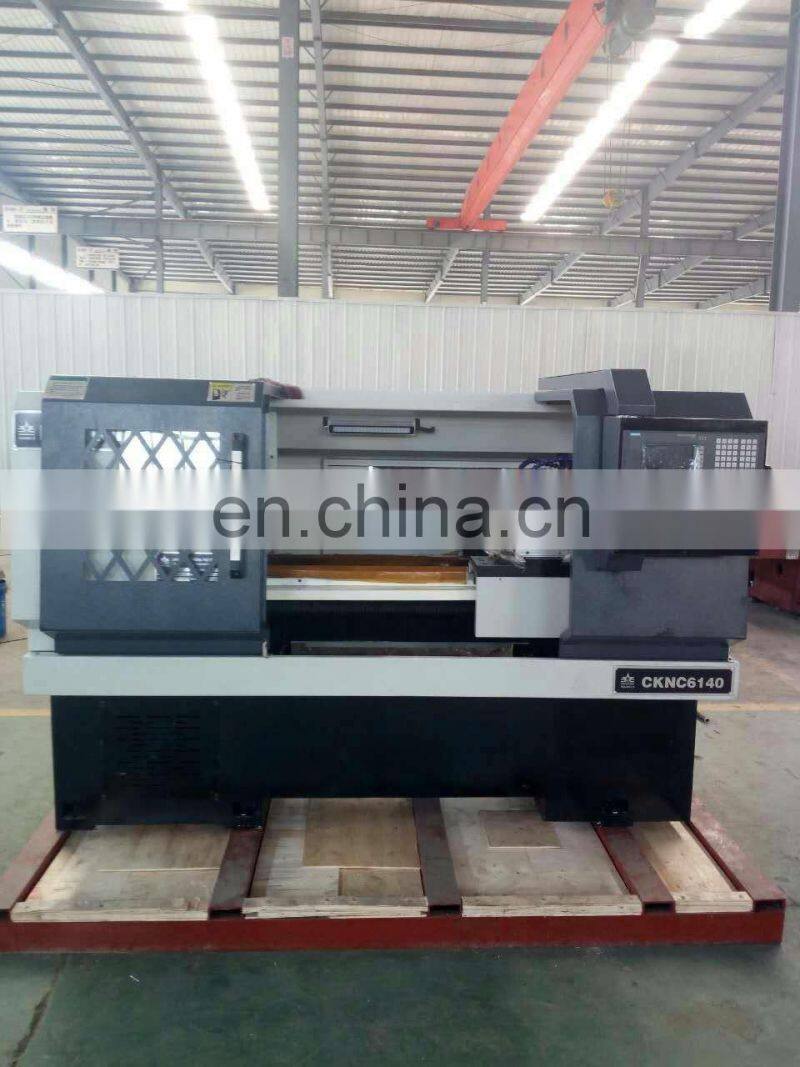

This product is a kind of lathe which the X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the sliding (hard) rail. The structure and dimension of axis are compact and reasonable. Spindle is gear transmission and variable- frequency variable-speed driven by variable frequency motor through belt which can clamping various plate, shaft, and component all at once. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

CK6140 Universal High Precision Tool Turret CNC Lathe Machine for Sale

Standard configuration

1. Full enclosed cover
2. One piece body structure
3. 4-station electric tool post
4. Automatic Lubrication
5. NSK spindle bearing of Japan
6. Manual chuck and tail stock

Optional configuration

1.CNC controller : SIEMENS/FANUC/KND/MITSUBISHI/SYNTEC
2.Hydraulic chuck and tailstock
3.Electric 6/8 station turret

With automatic bar feeder, convenient to operate and work more faster.

1. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing.

2. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

Packing Details : Packing by woodenbox or depend on request

Delivery Details : 7-45 days

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
