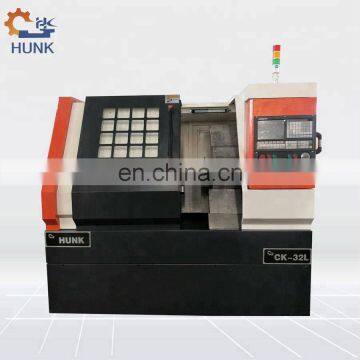

CK32L New Slant Bed CNC Random Tool Change Lathe Machine

FOB Price

US$ 10,900 - 21,900 / Set

1 Set(Min. Order)

Port Qingdao Port for CK32L New Slant Bed CNC Random Tool Change Lathe Machine
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

1)The machine are the slant bed cnc machine tools of higher speed, higher precision and higher reliability.

2)The spindle is in unit structure, the motion given by the frequency motor will be transferred to the spindle through synchronous belt, thus we can get the highest speed.

3) The hydraulic chuck is employed for clamping the work piece, which makes the clamping more convenient, accuracy highly improved and operating strength saved.

4)Machine adopts 45 degrees oblique slide saddle and linear guide rail, stronger in rigidity, faster in feeding speed and easier in chip removal.

5)The X and Z axis screws are in the middle of the carriage, well-distributed in force, smooth in movement, higher in speed.

6) The tools changed quickly, stably, precisely and chooses tool from the nearest.

Item	Unit	CK32L
Max. swing over bed	mm	320
Max. swing over slide	mm	160
Max. processing length	mm	350
Max. cutting dia.(disc type)	mm	200
Max. bar dia.	mm	40
Spindle speed	rpm	4000
Spindle nose ISO form		A2-5
Thru-hole dia.	mm	41
Chunk dia.	mm	160(6")
Motor power	kw	3.7
Body structure		30° integrated
X axis travel	mm	200
Z axis travel	mm	350
X/Z axis rapid speed		24/24
Type
Tool size	mm	20*20
Tailstock sleeve dia.	mm	52
Tailstock sleeve travel	mm	60
Tailstock sleeve taper		MT4
Processing precision		IT6
Repositioning precision	mm	X:0.006, Z:0.008
Roughness		Ra.≤0.8
N.W	kg	1500
Dimension	mm	1600X1400X1600

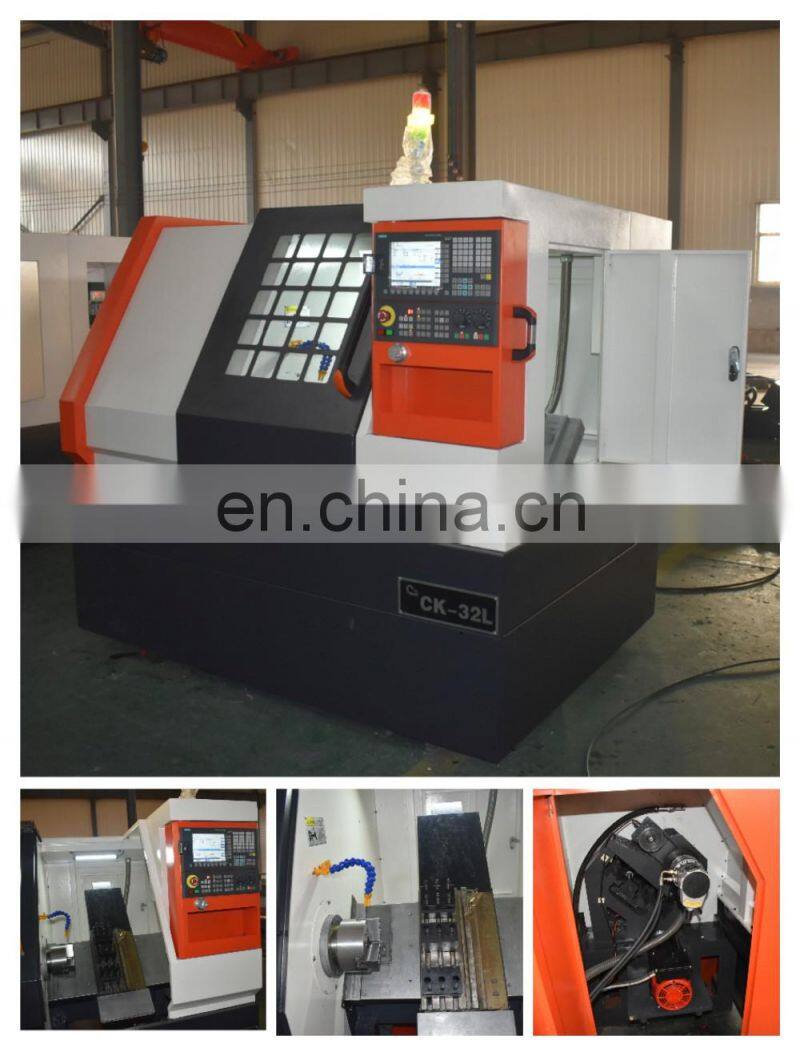

Products Show

Our Company

Shandong Hunk Precision Machinery Co.,Ltd

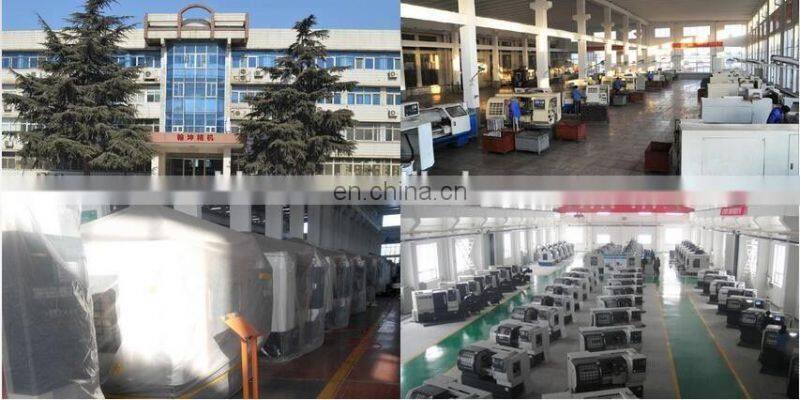

Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

Exibitions

We actively participate exihitions like Beijing, Shanghai, Qingdao, Guangzhou, Jinan and so on.
We also particated the exihitions in Indonisia, happily communicated with our old clients and also met many new clients.

Our certification

We are the Vice President of Shandong International Business Union

Our certification including CE, IQNET, SGS, ISO

Our service:

1.24 hours on Internet and Telephone, free instruction and problem solving.
2. Free training how to use.
3. User-friendly English manual or operating video for machine using and maintaining.
4. on-the-spot training and installation can be met if required.

Our team

Product catagory

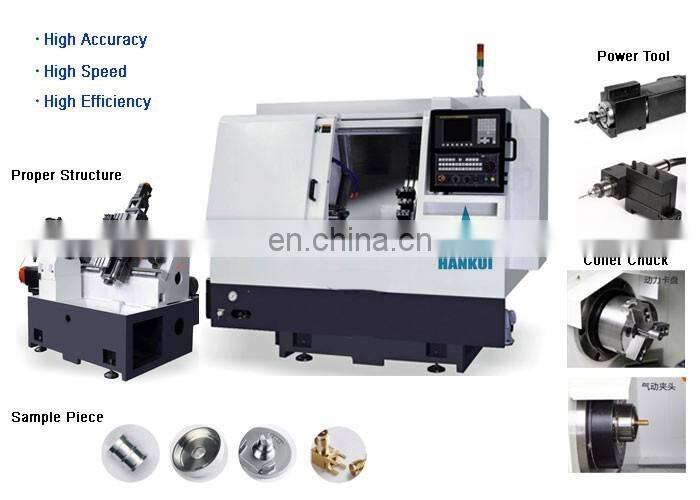

The main products are slant bed cnc lathe/ flat bed cnc lathe/ cnc vertical machining center/ cnc horizontal machining center/cnc gantry machining center.

Packing & Delivery

FAQ

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A:Twelve months warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
