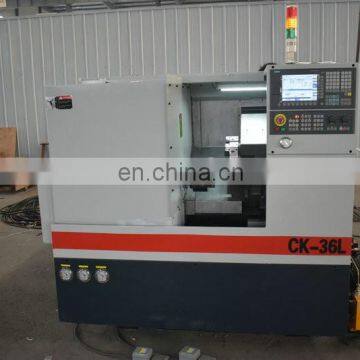

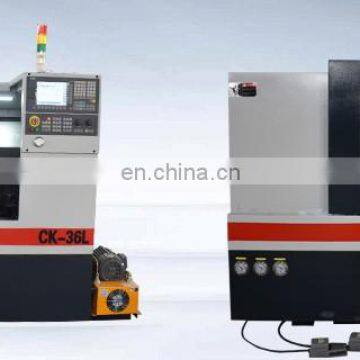

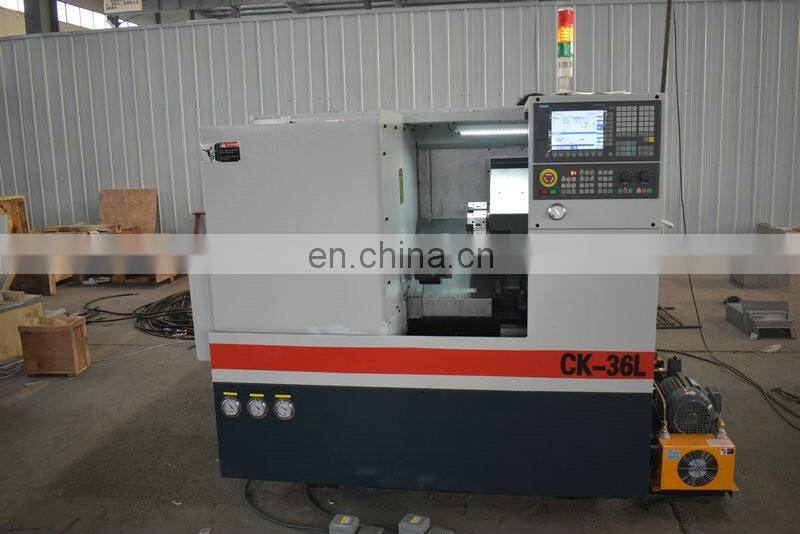

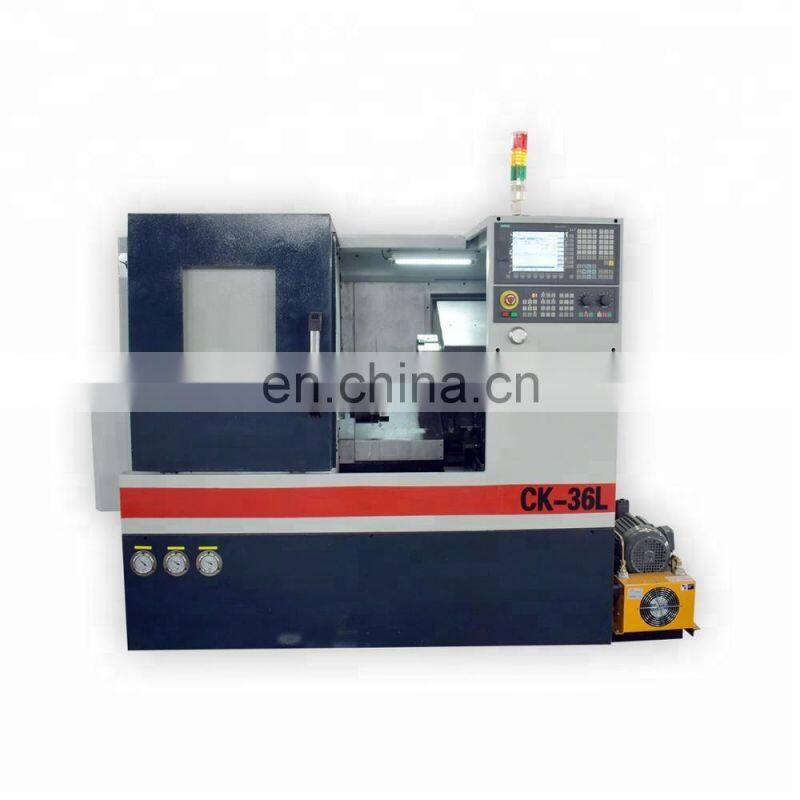

CK36L Hunk Brand Slant Bed Cnc Metal Lathe Machine

CK36L Hunk Brand Slant Bed Cnc Metal Lathe Machine

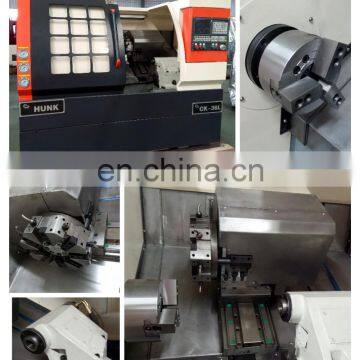

This product uses 45 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the sliding (hard) rail. The structure and dimension of axis are compact and reasonable. Spindle is gear transmission and fvariable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

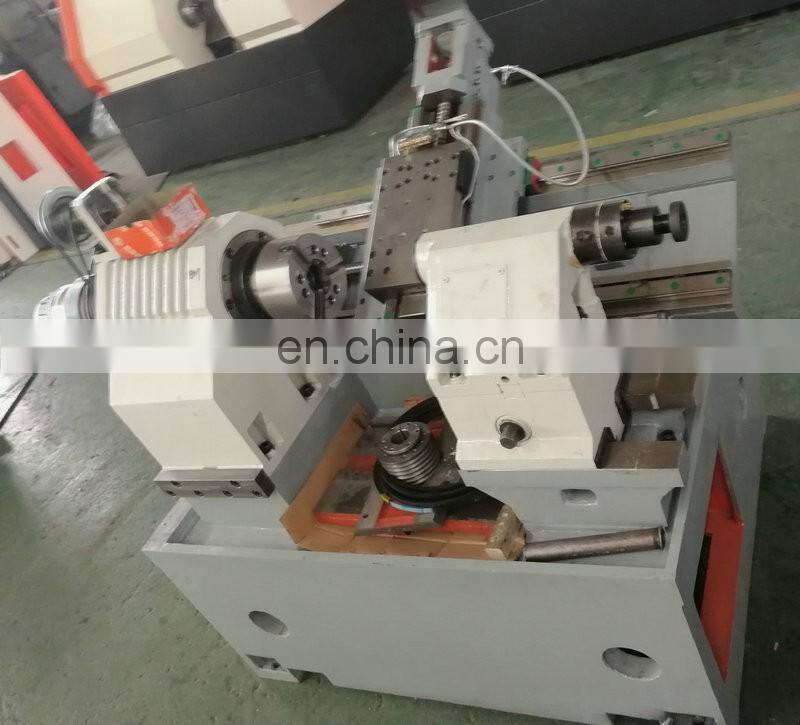

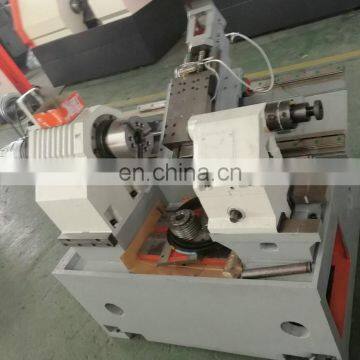

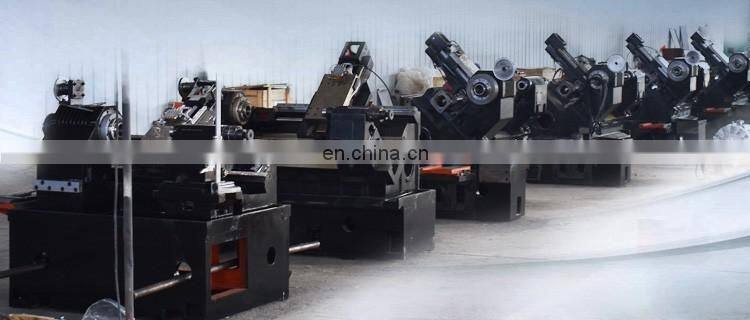

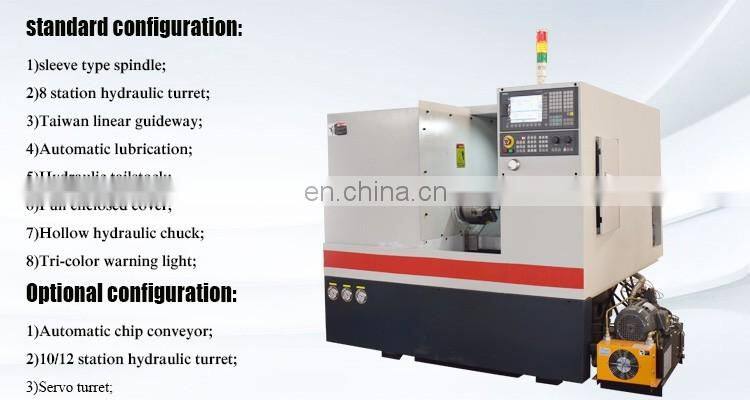

1)The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

2)The middle supporting plate together with the whole lathe bed, the middle slip plate and the sliding surface of supporting plate are all adopt the line rail technology of Taiwan, with fast speed, eliminating intermittent creep, high rigidity, low friction, and low noise characteristics. With automatic pressure lubrication, it improves the machine accuracy.

3)The feed of X, Z direction adopts the inner loop preloading large-lead ballscrew with double nut so it is of high feed speed. The drive motor connect with screw straightly via elastic coupling. The feed servo motor passes power to the high precision ball screw directly . It is no gap, and it ensures the accuracy of positioning and synchronization for the lathe.

4)The spindle box adopts spindle unit which is of independent type and sleeve structure and it is equipped with high intensity special bearing for spindle. In terms of lubrication, it adopts the Germany special lubricating oil of bearing, which greatly reduces the thermal deformation of spindle unit and improves the thermal stability and accuracy. The torque in the process of chipping is greatly increased too. It uses spindle unit which is high speed, high precision, and high rigidity. The bearing capacity of axial and radial is very strong, the top speed can reach to 6000 RPM (optional A2-5), and the standard is 4000 RPM .

5)The two guide rail of X, Z direction and screw are all adopt protective device, which ensures the cleanness of lead screw and guide rail. It also ensures the accuracy of drive and motion and machine service life;

6)The outer protective device of the whole lathe is of the full protective structure. It is easy to operate, safe and reliable, beautiful and generous.

7)It uses a reliable device which is automatic and centralized to lubricate. It can lubricate automatically and intermittently to all lubrication points of CNC lathe. And it can settle lubricating time according to operating conditions.

8)The operating system of the lathe adopts the principle of human body engineering so the operation is very convenient.

Verified Information:
This information was Verified by Bureau Veritas and is valid for the following period: 2018/04/28 --- 2019/04/27
The information below covers both the Gold Supplier and its related companies, which are defined according to china laws and regulations, and which will also be clearly displayed in the full report , for full report, pls contact us.

The competitive advantage of product line:
With superior equipment, advanced technology, detection devices, and the imported parts from Taiwan, Japan, Germany, the machine enjoys fame home and abroad. Approved by CE certification and SGS authentication, Their machines are welcomed by customers not only from domestic market but also from Turkey, Norway, Serbia, Slovakia, Russia, Ukraine, Syria, Bangladesh, Pakistan, India, USA, Mexico, Argentina.

Production Capacity:
CNC machining center, CNC lathe CNC machining center,

CNC lathe: 90 Sets/Year CNC machining center, CNC lathe: 60 Sets

Our Main Products Series Model No. :

1) Slant Bed Cnc Lathe: CK32L/CK36L/CK40L/CK50L/CK63L/CK80L

2) Flat Bed Cnc Lathe Machine: CKNC6136/CKNC6140/CKNC6150/CKNC6163/CKNC6180/CKNC61100/CKNC61125

3) Pipe Threading Cnc Lathe Machine :

QK1313/QK1319/QK1322/QK1327/QK1335/QK1343, Q1313-1B/1319-1B,

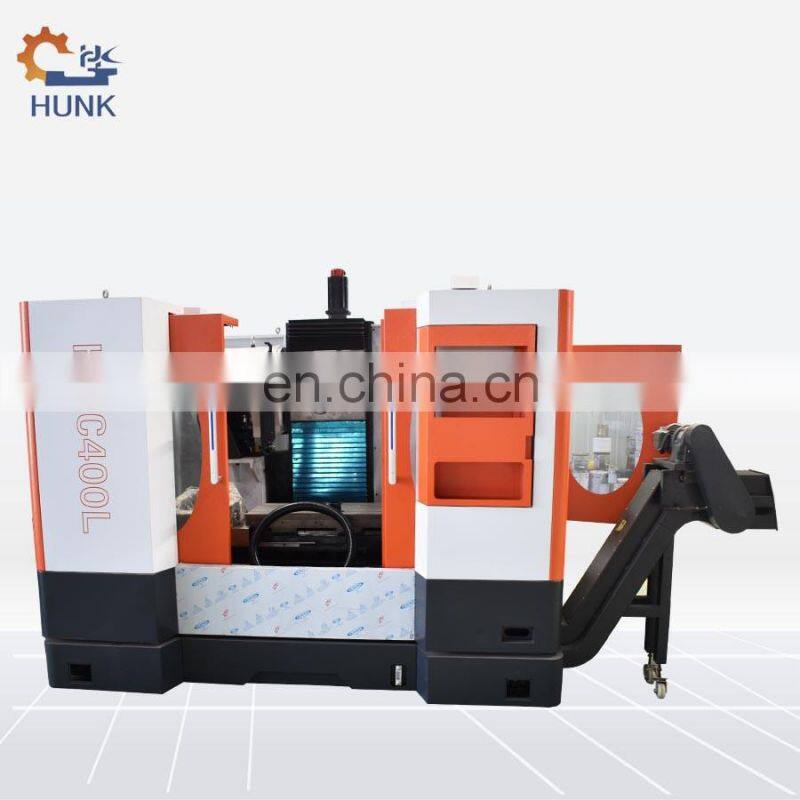

4) Vertical Cnc Machine Center:

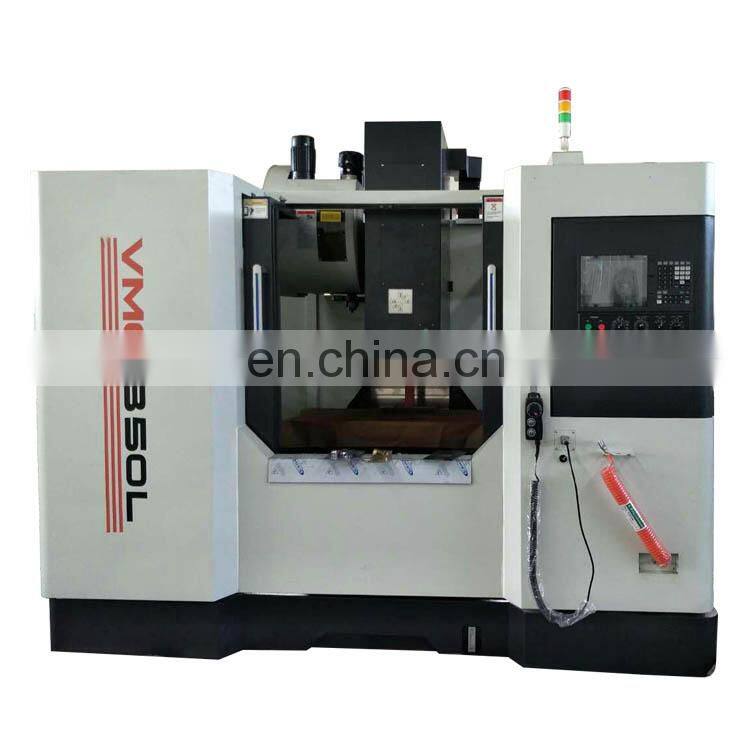

VMC350L/VMC460L/VMC550L/VMC600L/VMC650L/VMC850L/

VMC1060L/VMC1160L/VMC1270L/VMC1380L/VMC1580L/,

5) Horizontal Cnc Machine Center: H40, H45, H50, H63, H80, H100

6) Gantry Cnc Machine Center: GMC1090G, GMC1210, GMC1513, GMC2016, GMC2518, GMC3022

We have passed the CE, SGS, ISO9001:2008 international quality management system authentication.

“Honest and trust, Customer ahead, pursuit of excellent”, we devoted to provide high quality performance CNC products and metal products to you.
