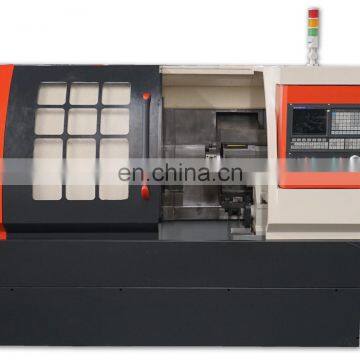

Table Horizontal Drilling Machine Lathe CK32L

FOB Price

US$ 9,800 - 15,000 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

technical parameter

ITEM	CK32L	CK36L	CK40L	CK50L	CK63L	CK80L
Max.swing over bed	320	360	400	500	660	800
Max.swing over slide	160	160	220	320	500	640
cessing length	350	350	450	550	890	890
Max cutting Dia(Disc type)	200	254	360	420	630	800
Max.bar Dia	40	45	51	51	75	90
Spindle speed	4000	4000	3500	2500	2200	1500
Spindle nose ISO form	A2-5	A2-5	A2-5	A2-6/8	A2-8	A2-11
Thru-hole Dia	41	56	56	66/82	86	112
Chuck Dia	160(6")	200(6")	200(8")	250(10")	320(12")	380(12")
Motor power	3.7kw	3.7KW/5.5KW	3.7KW/5.5KW	5.5/7.5/11KW	11/15KW	18-22KW
Body structure	30° integrated	30° integrated	45° integrated	45° integrated	30° integrated	30° integrated
X axis travel	200	200	210	260	410	410
Z axis travel	350	350	450	550	860	860
X/Z axis rapid speed	24/24	24/24	24/24	24/24	18/18	18/18
Type		63-8T	80-8T	100-8T	160-8T	160-8T
Tool size	20*20	20*20	20*20	25*25	25*25	25*25
Tailstock sleeve Dia	52	52	52	75	150	150
Tailstock sleeve travel	60	60	60	100	150	150
Tailsttock sleeve taper	MT4	MT4	MT4	MT5	MT5	MT5
processing precision	IT6
reprocessing precision	X:0.006, Z:0.008			X:0.006, Z:0.01
Roughness	Ra.≤0.8			Ra.≤1.25
Net weight	1500	1700	2700	3500	5500	5600
Dimension	1.61.41.6m	1.81.61.6m	2.81.61.6m	3.11.81.8m	3.82.22.2m	3.82.22.2m

Main feature

Main components

NO	ITEM	Model No.	Origin	Quantity	Note
1	The top		Domestic	1 set
2	X screw pair to the ball	2505	Taiwan	1 pair
3	Z screw pair to the ball	3210/P3	Taiwan	1 pair
4	Angular contact ball bearings		NSK	1 set	With screw
5	X, Z line rail		Taiwan
6	Angular contact ball bearings		NSK	2 sets	With screw
7	Double grinding coupling		Domestic	2
8	Cooling pump		Domestic	1
9	Lubrication system		Domestic	1 set
10	The hydraulic power tool turret of 8 stations		Taiwan	1 set

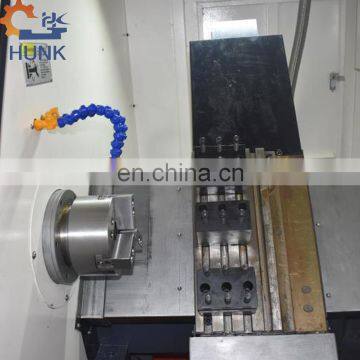

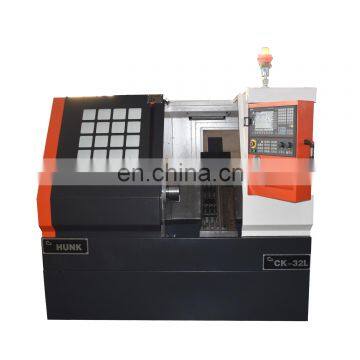

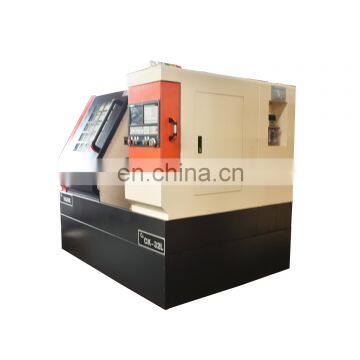

Photos of CNC lathe

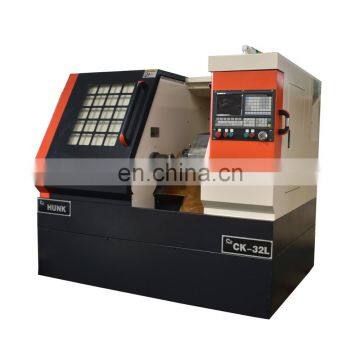

Hobby Benchtop Best Micro CNC Mini CNC Turning lathe machine CK32L

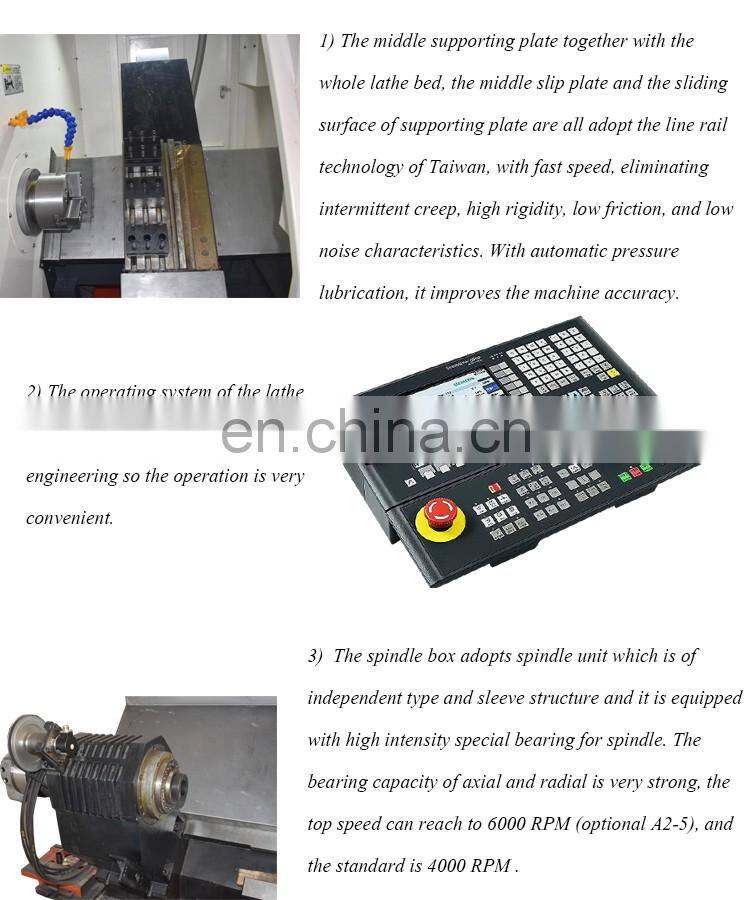

This product uses 45 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the sliding (hard) rail.
