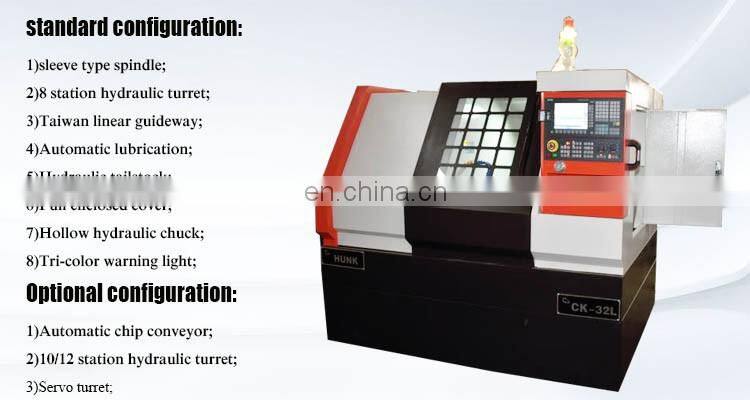

CK36 Revolver Lathe-machines With Multi-purpose Machine

This product uses 30 degrees of inclined type layout with one-piece hollow tubular bed, which greatly improves the flexural rigidity and torsional stiffness of machine when working. At the same time after two aging treatment, it has improved the stability, high rigidity and stability of the machine, which ensure high accuracy of the whole machine. The X and Z axis control the half close loop CNC lathe by direct-connected servo. All the two axis are the linear guide rail. The structure and dimension of axis are compact and reasonable. Spindle is gear transmission and variable- frequency variable-speed drived by variable frequency motor through belt which can clamping various plate, shaft, and component all at once. It can complete the processing of vehicles, groove, inner (outer) hole, spherical, R cone angle, curved shape, cone shape, face shape, male thread single head, thread single head and multiple thread processing. It is applicable for multi and mass production, and can meet the processing demands for complex and high precision parts.

1)The major basic parts such as the lathe bed, lathe feet, the middle supporting plate, the spindle box are all made of HT300 cast iron. The whole lathe bed and the lathe feet are all adopt 45 degrees casting structure as a whole. The compact and reasonable symmetric structure ensures high rigidity and bending vibration performance of basic parts. The guide rail surface of lathe bed adopts superaudio quenching and the penetration depth can reach to 2 mm, which provides the guarantee for the stability of lathe for a long time using.

Shandong Hunk Precision Machinery Co.,Ltd
   Shandong Hunk Precision Machinery Co.,Ltd, is a CNC machine tools factory, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees.The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.

  With good quality and professional service, our company cooperate with the customers from India, Mexico, USA, Turkey, Norway, Bangladesh, Indonesia, Pakistan,Syria and so on. There is 24 hour online servive and   oversea technology support in our company.

We are the vice president of Shandong International Business Union, our certification including CE, IQNET, SGS, ISO and so on.

Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.

Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine

Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable

Q: Do you have a warranty on your machines?
A:Twelve months warranty excluding electrical components.

Q: What sales terms do you have?
A:T/T, L/C,West Union.

Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,

Q: Once machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.

Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.

Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD

Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.

Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
