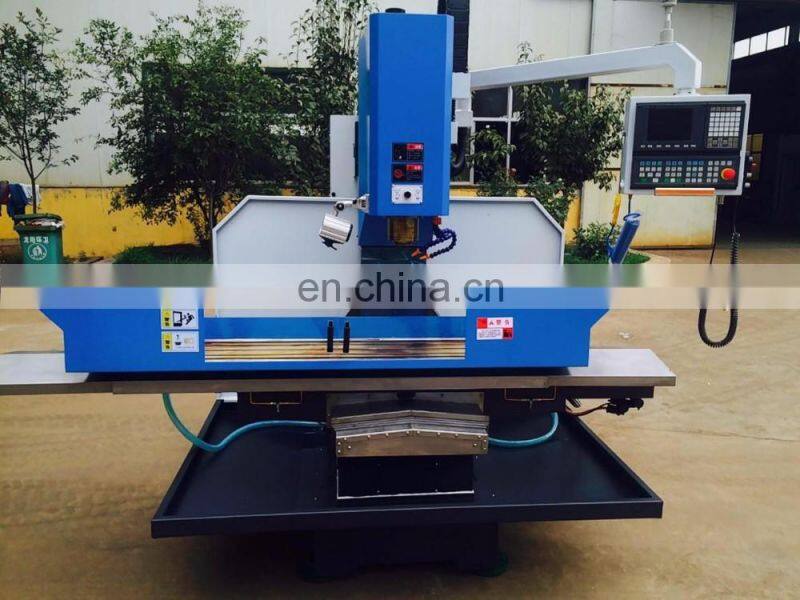

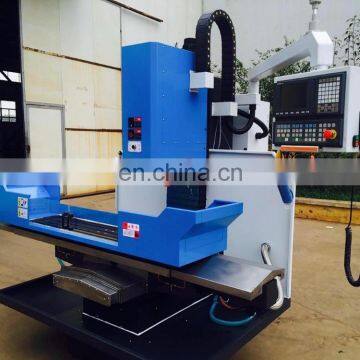

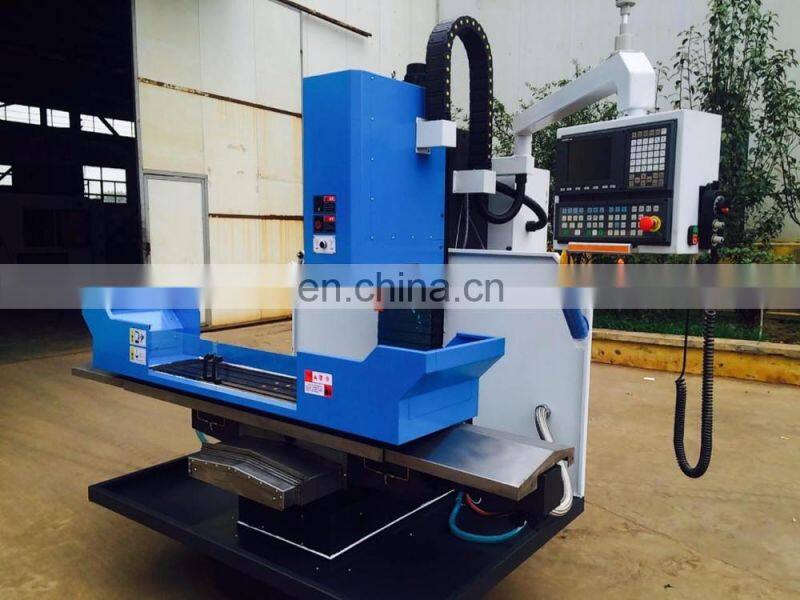

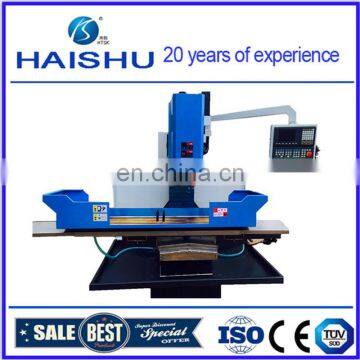

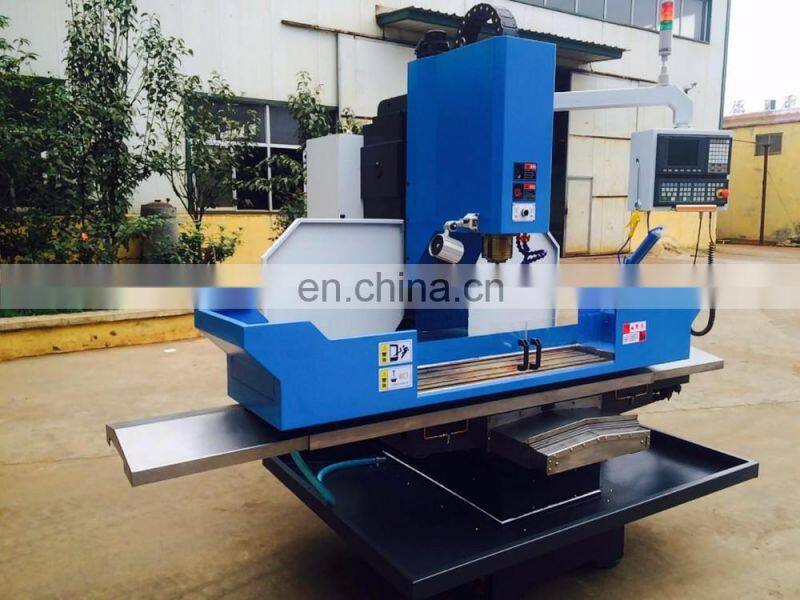

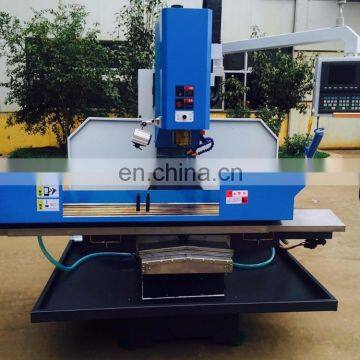

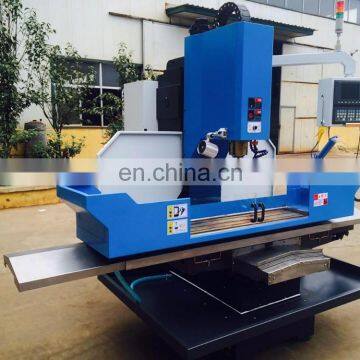

High Efficiency CNC Vertical Milling Machine XK7132Q
CNC Vertical Milling Machine XK7132Q is used CNC machine tools for metal milling, drilling, reaming and other machining functions. HAISHU brand CNC Vertical Milling Machine XK7132Q includes high precision ball screws, square box supported the table and hardened dovetail guideways that can ensure the accurate alignment and the best surface-finish performance for every application. . The CNC milling machine can process the plate, shell, mold and other complex and high precision metal parts. CNC Vertical Milling Machine XK7132Q is the ideal processing equipment for such industries as machinery, electron, instrument, instrument, mould and automobile etc.
CNC Vertical Milling Machine XK7132Q Specifications
| No | Item | Unit | Specifications |
|---|---|---|---|
| 1 | work table size | mm | 1250×320 |
| 2 | Table T slot (slot number/width /spacing) | mm | 3/16/75 |
| 3 | Movement range (X, Y, Z) | mm | 800x400x500 |
| 4 | Distance from spindle end face to table | mm | 100~600 |
| 5 | Distance from spindle center to column guideway | mm | 410 |
| 6 | Fast-moving feed (X, Y, Z) | m/min | 5/5/4 |
| 7 | X/Y/Z direction motor | N.m | 6/6/7.7 |
| 8 | Taper hole of spindle | BT40 | |
| 9 | Spindle speed (spindle unit) | r/min | 50-8000 |
| 10 | Spindle power | kw | 3.7 (servo) |
| 11 | Power | 380V±10% 50Hz±1% | |
| 12 | Machine Size (L×W×H) | mm | 1800x1600x2100 |
| 13 | Package Size (L×W×H) | mm | 1900x1700x2300 |
| 14 | Net weight | kg | 2300 |
| 15 | Gross weight | kg | 2500 |
CNC Vertical Milling Machine XK7132Q Configurations
Standard Configuration
- CNC system – GUNT 330iM
- Taiwan brand high speed and high precision spindle unit – 8000rpm
- Precision ball screws
- Stainless steel internal protection
- Automatic lubrication system
- Cooling system
- Pneumatical system
- Trichromatic lamp
- Hand wheel
Optional configuration
- CNC system: GSK, Siemens, Fanuc, etc
- The four axis
- Central water cooling for spindle
- Tool magazine
standard exported wooden case
GUARANTEE AND AFTER-SALE SERVICES:
1.one year guarantee for whole machine
2.24-hours technical support by E-mail or telephone
3.User-friendly English software or Russian or Spanish, Users manuals and Detailed Videos/CD
4.Provide extra accessories for the machine
5.Also provide service of make program according to your drawings
6.Customized or special design is OK.
Taian Haishu Machinery Co., Ltd. is the professional CNC machine designer and manufacturer dedicated in supplying all kinds of cnc machine to worldwide customers. We had been always worked hard to become the leader in designing and manufacturing CNC lathes since the foundation in 2001. There are more than 60 talented experts and more than 12,000 square meters factory to guarantee the production and quality of CNC lathe machines. Our innovative, high-quality products include CNC lathe, wheel repair machine, cnc milling machine and other customized CNC machines. Product innovation, quality assurance and customer satisfaction are our long term commitment to our worldwide customers. Hope to build strong business relationships with you!
