Precision CNC 4 Axis 10 Inch CNC Machine Indexing Rotary Table from China
Feature:
Feature:
1. This 4 Axis CNC rotary table use imported precision dual-lead worm, turbine,
turbine with aluminum bronze alloy,ensure the transmission positioning in high
precision accuracy.
2. Three-piece clutch gear for precise positioning accuracy,ensure the work
table’s stability.
3.The vertical and horizontal can interchangeable.

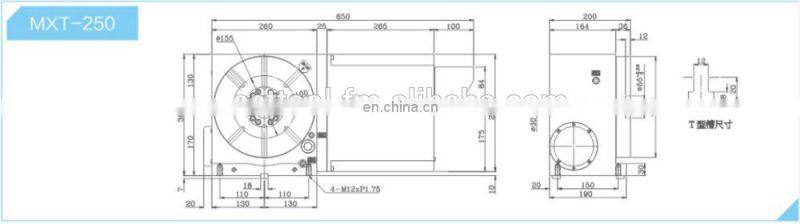

Specification:
MXT-250
The Disc diameter | 250mm |
The disc spindle center hole | 55H7mm |
The disc spindle center through hole | 30mm |
Level placement height | 200mm |
Level placement center height | 170mm |
T-slot width of the rotary shaft disc | 12H7 |
Guide block width | 18H7 |
Working applicable environment temperature | 18~40 degree |
Pressure of the locking device | 35(hydraulic) kg/cm2 |
The mini angle of equal division | 5 degree |
Total gears rate | 1/120 |
Max speed of the rotary disc | 3000 RPM X |
4000 rpm 53.3 | |
Division precision | ±4” |
G.W weight | 94kg |
