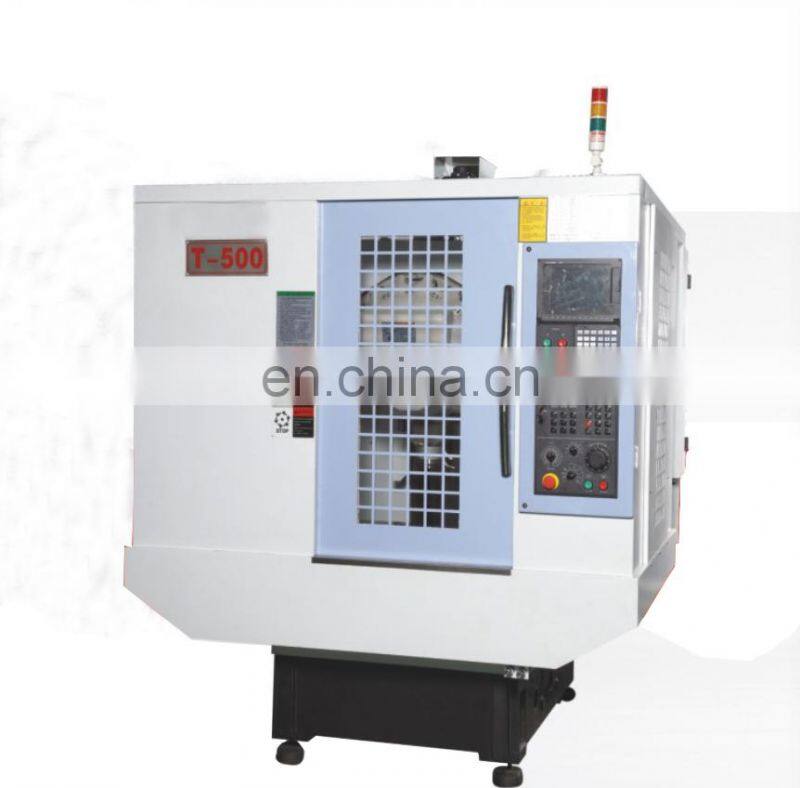

Big horse cnc tapping machine with mitsubishi M70 system for small metal workpiece
Feature :
1.Direct resultant rotation:the motor and the spindle contact directly
2.With Mitsubishi M70 spindle motor
3.Spindle diameter up to 70mm.
4.45# diameter bearing.
specification
Model T500 | |
Work table size | 650x400mm |
T slot | 3x14x100mm |
Max loading | 250kg |
Spindle speed | 12000 r/mini |
X axis travel | 500mm |
Y axis travel | 400mm |
Z axis travel | 300mm |
Motor | 5.5KW |
The distance from spindle nose to work table | 150-450mm |
The distance from spindle center to the column |
420mm |
Spindle taper |
BT30 |
Transmission | direct |
X.Y.Z moving speed | 48000mm/min |
X.Y.Z fast feeding | 1-16000 mm/min |
Tool holder type | BT30 |
Tool magzine |
16 pcs (or21pcs) |
Tool Magazine type |
arm type |
Max tool diameter | 80mm |
Max tool length | 250mm |
Position accuracy | +-0.005/300 mm |
Re-position accuracy | +-0.003/300 mm |
Weight | 2300kg |
Packing size | 1750x3150x3100mm |

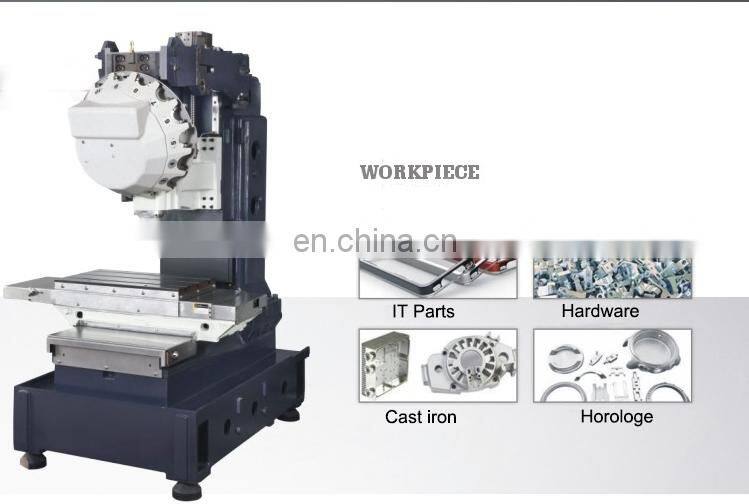

Processing sample :
Q: Are You Trading Company Or Manufacturer ?
A: SHIN CHENG is a professional manufacturer,have more than 30 years experience in tool
holder and NC rotary table.
Q: Is Free Shipping Possible?
A: We don't offer free shipping service,but we will give you some discount if you buy large quantity
products.And we have cooperation Express Companies,can offer you the best price of shipping cost.
Q: Can You Send Products To Our Forwarder In China?
A: Yes,if you have Forwarder in China,we will glad to send products to him/her.
Q: What's The Warranty Of The Goods?
A: All products from us wanrranty is 12 months .
Q: What's The System Of Your NC Rotary Table Use ?
A:Our NC rotary table support :FANUC , Mitsubishi,GSK etc.
