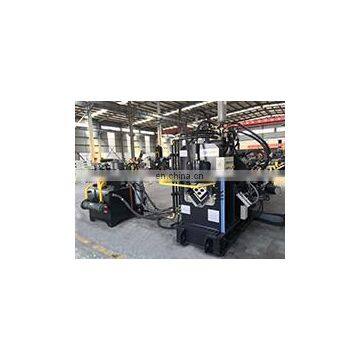

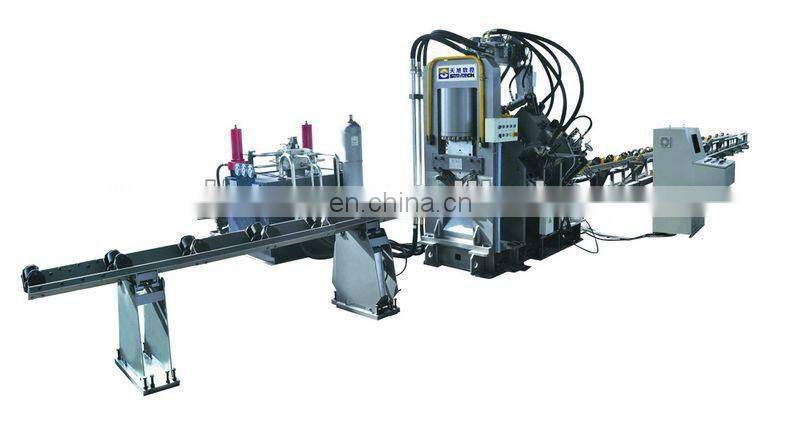

Angle Punching line
Applicable Industry:
Angle Punching line is the special equipment used for angle steel punching,
marking & shearing mainly in the field of angle steel tower industry.
Product Feature:

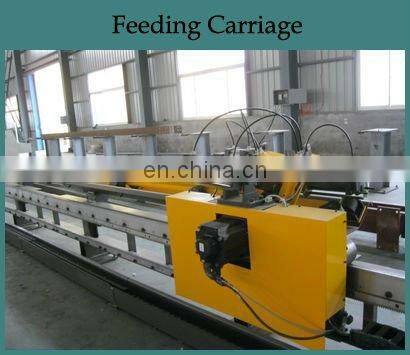

1.Adopt CNC technology, servo motor infeeding, with high efficiency, stable workpiece precision.

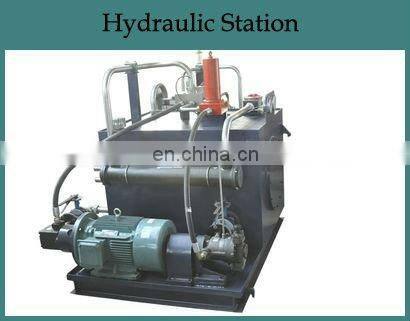

2.Key hydraulic, pneumatic and electric parts are all world famous brand.
3.Easy programming and can directly use the program data made by lofting software.
4.Computer with Chinese/English interface, easy operation, and can display the drawing of workpiece.

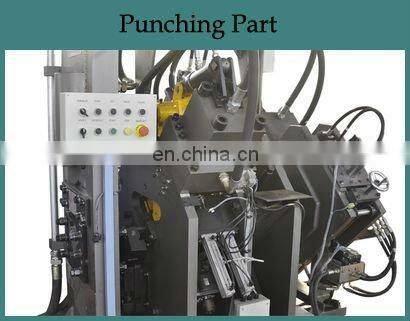

5.All marking, punching and shearing in automatic completeness, all finished angles can be unloaded by pneumatic turnover device so as to lighten the working strength.
6.Only need to input size of workpiece, diameter of holes, stadia and quantity of workpiece when edit program.
7.The angle line installs supporting & pressing device to meet the requirements of processing angles with bigger bending.

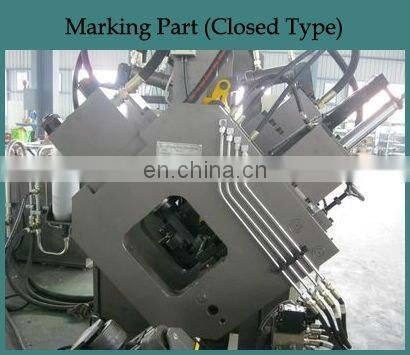

8.Marking unit adopts closed frame with good rigidity. Marking stadia can be set at will.
9.With avoided shearing functions, so as to process fixed-length angles.
10.With self-diagnosis failures function.

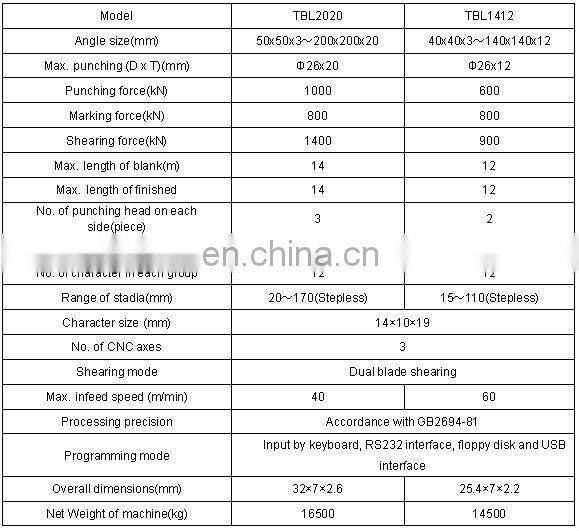

Specifications:
