TBD200/3, TBD1010 GANTRY MOVEABLE
CNC BEAMS DRILLING LINE
1, About Our Company- We always do the best !
JINAN SUNRISE CNC MACHINE CO., LTD. is a specialist company dedicated to developing, studying, designing, manufacturing, and selling CNC machines, for example, drilling machine, punching machine, band sawing machine, shearing machine, bending, beveling, chamfering, milling, welding machines and other optical-electro-mechanical integration equipments, which mainly used for processing angle steel, metal plate, H-beam, channel steel, box steel, round steel, flange plate and etc in power tower, transmission tower, telecom tower, steel structure, central air-conditioner, automobile, household appliance, petrochemical, construction industries.
2, Details of products:
Product Feature:

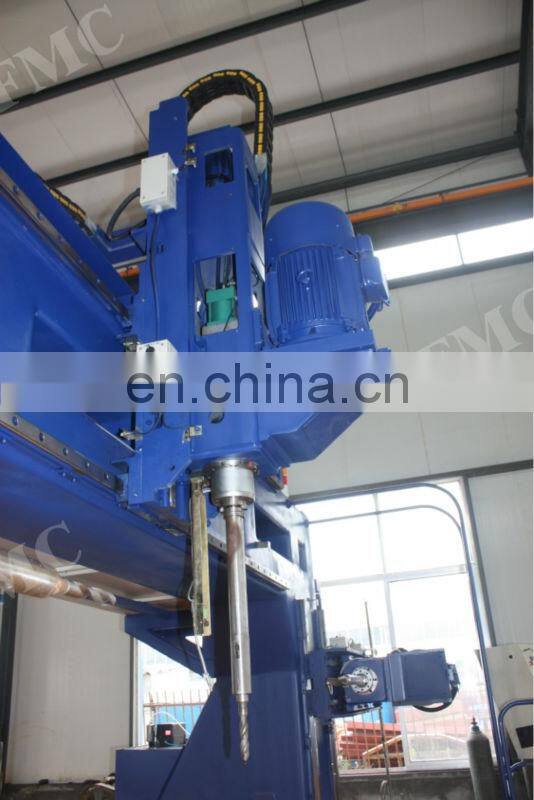

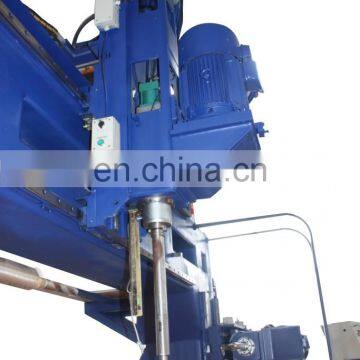

1. Three slipway type CNC drilling spindles respectively on the up, left & right, can drill holes simultaneously.

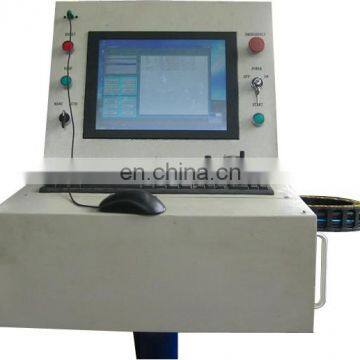

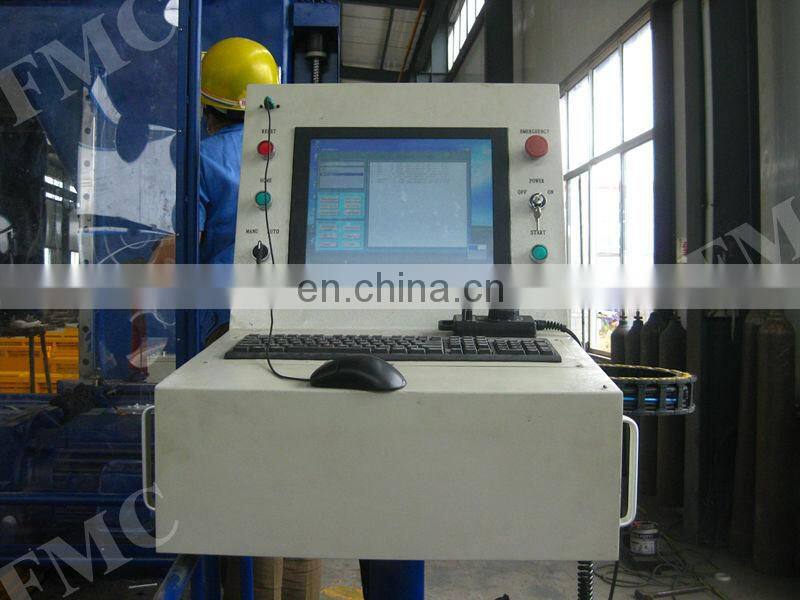

2. CNC & PLC systems, CRT display.
3. Eight CNC axes.
4. Coordinates of drilling can be directly transferred to CAD/CAM.
5. Automatic chip removal, circular coolant.
6. Laser alignment conveniently.
Specifications:
Model | TBD200/3 | TBD1010 | |
Workpiece size | Max. section size (W×H) (mm) | 2000×1000 | 1000×1000 |
Min. section size (W×H) (mm) | 1000×400 | 300×300 | |
Max. length (m) | 16 | 2~20 | |
Drilling unit | Type | CNC slipway type | CNC slipway type |
Quantity | 3 | 3 | |
Max. drilling dia. (mm) | Φ50 | Φ50 | |
Rotation speed (r/min) | 120~560 Frequency conversion | 120~560 Frequency conversion | |
Axial stroke (mm) | 600 | 600/400/400 | |
Feeding speed (mm/min) | 0~4000 | 0~4000 | |
Motor power of spindle (kW) | 5.5 (×3 ) | 5.5 (×3 ) | |
Power of servo motor (kW) | 1 (×3 ) | 1 (×3 ) | |
movement of gantry (X axis) | Stroke (m) | 16 | 20.5 |
Max. moving speed (m/min) | 8 | 8 | |
Power of servo motor (kW) | 2 (×2 ) | 2 (×2 ) | |
Transverse movement of vertical drilling unit (Y axis) | Stroke (mm) | 2000 | 1000 |
Max. moving speed (m/min) | 10 | 8 | |
Power of servo motor (kW) | 1 | 1.5 | |
Up and down movement of left/right drilling unit (Z,W axes) | Stroke (mm) | 1000 | 1000 |
Max. moving speed (m/min) | 10 | 8 | |
Power of servo motor (kW) | 1.5 (×2 ) | 1.5 (×2 ) | |
Hydraulic pump | Motor power (kW) | 2.2+0.75 | 2.2+0.75 |
Swarf-converor | Motor power (kW) | 0.75 (×2 ) | 0.75 (×2 ) |
Cooling pump | Motor power (kW) | 0.45 | 0.45 |
Power supply | Total power (kW) | 35 | 40 |

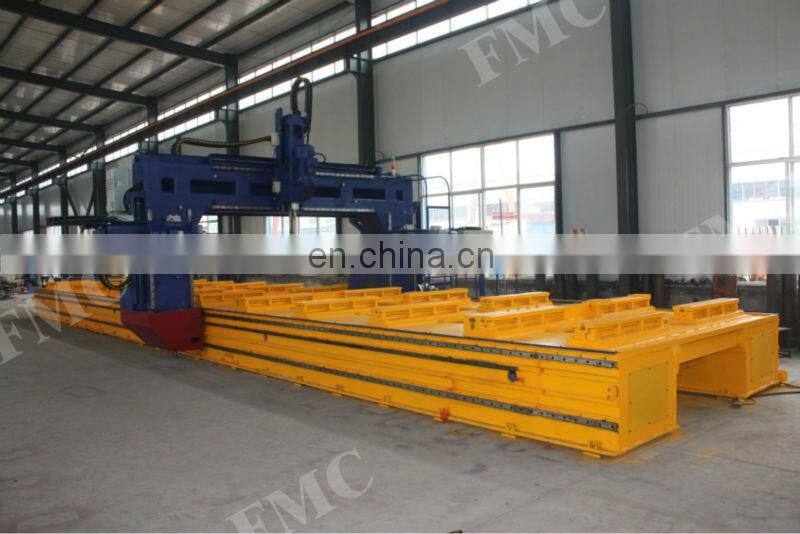

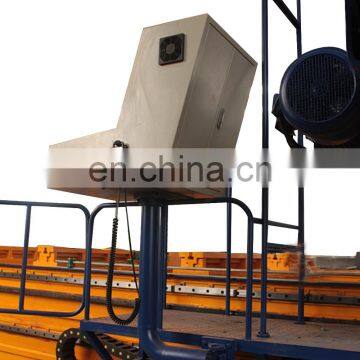

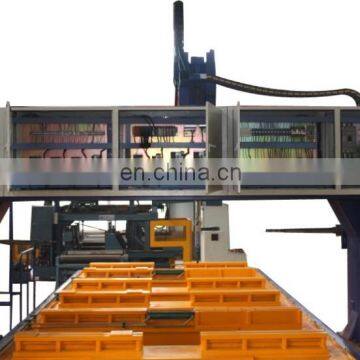

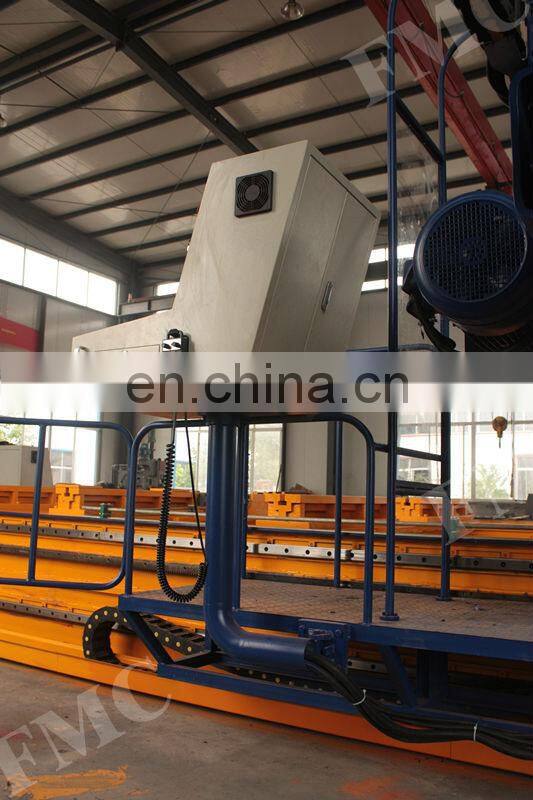

3,Pictures Of Products:
