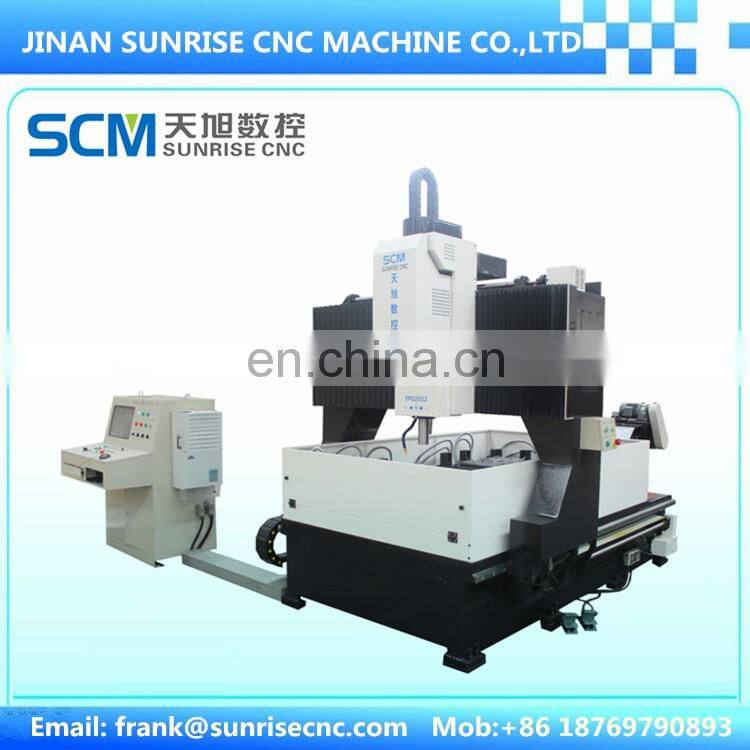

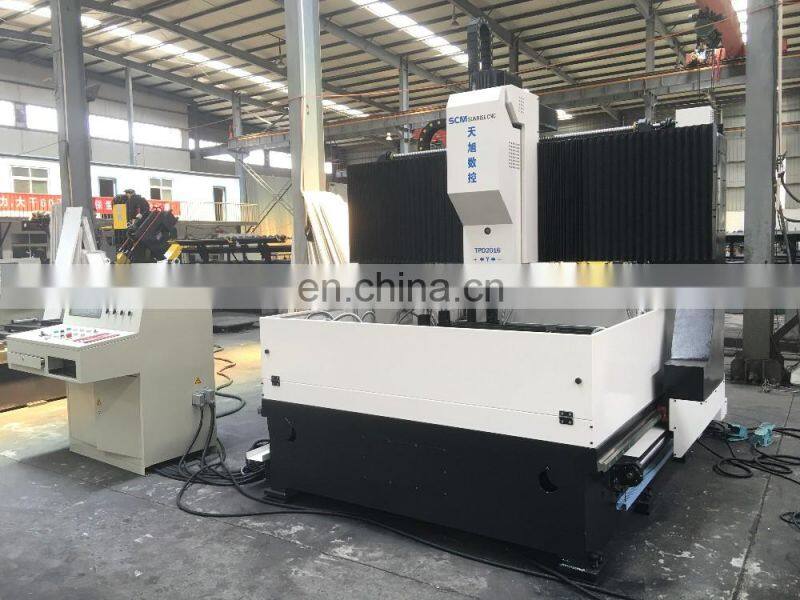

1. cnc plate drilling machine
2. cnc drilling machine for metal plates

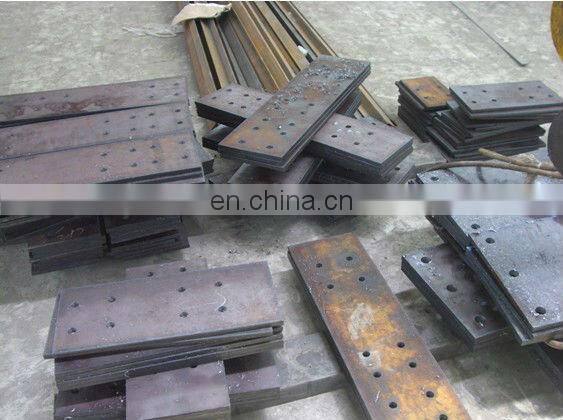

Applicable Industry:Special CNC machine for drilling connection boards and base plates of steel structure, tower, bridge and other industries.
Product Feature
1. CNC slider and drilling unit head, can control depth of holes, with function of drilling blind hole, reaming, chamfering angle.
2. Can automatically find holes to drill at X,Y axis.
3. Four processing position, 12 rapid hydraulic clamps, capable of clamping four sets of work pieces, and downloading work pieces when drilling simultaneously.

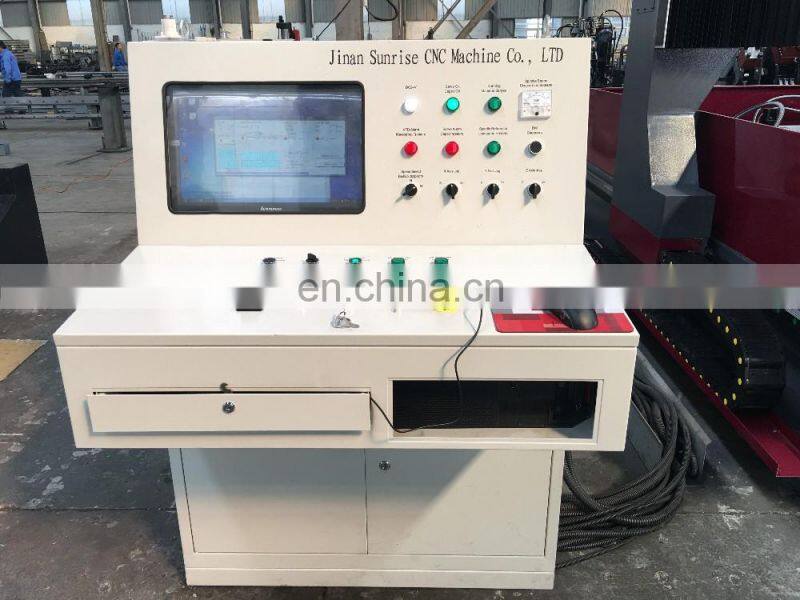

4. CNC, PLC systems, CRT display.
5. Programming software based on WINDOWS platform with CAD connection, fast and convenient programming, and visual previewing.
6. Automatic chip removal, coolant circulation cooling.
7. Key machinery, hydraulic pressure, electric components are chose from famous cooperation domestic and abroad.
8. Optimized integration design for complete machine, no foundation requirements.
Specifications:
Model | TPD2010 | TPD2012 | TPD2016 | ||
Max size of work piece(mm) | one piece | 2000×1000 | 2000×1200 | 2000×1600 | |
two piece | 1000×1000 | 1000×1200 | 1600×1000 | ||
four piece | 1000×500 | 1000×600 | 800×500 | ||
Max. thickness of work piece | Max.100mm, can overlap processing for thinner plates | ||||
Morse taper | #4 | ||||
Max. drilling diameter | Φ50mm | ||||
Drilling spindle | Rotating speed(rpm) | 120-560(Stepless speed adjustment) | |||
Max. feed stroke(mm) | 350 | ||||
Motor power(kW) | 5.5 | ||||
No. of champs | 12 | ||||
Clamping force(kN/each) | 7.5 | ||||
Motor power(kW) | Servo motors | X axis | 1.3 | ||
Y axis | 1.3 | ||||
Z axis | 0.85 | ||||
Pump motor | 2.2 | ||||
Motor for swarf conveyor | 0.4 | ||||
Motor for cooling pump | 0.25 | ||||
Net weight(kg) | 5200 | 6200 | 7200 | ||
Overall dimensions(L×W×H)(mm) | 3000×1950×2790 | 3000×2150×2790 | 3000×2420×2790 | ||
