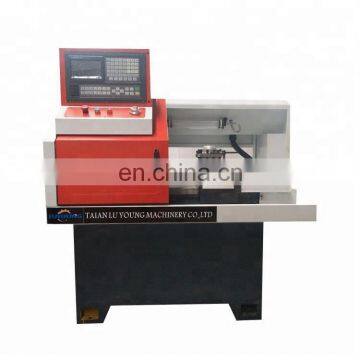

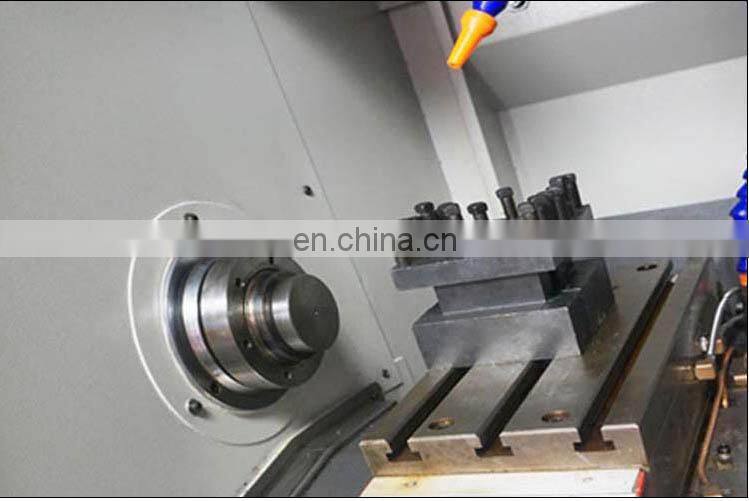

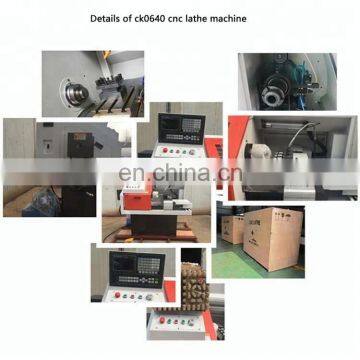

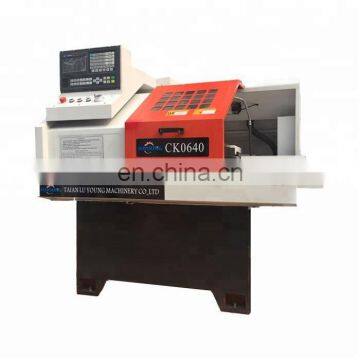

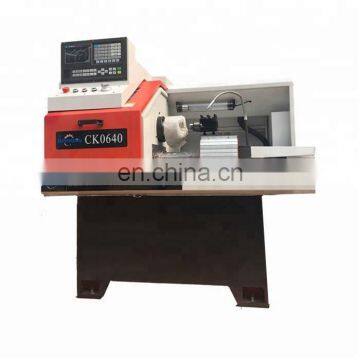

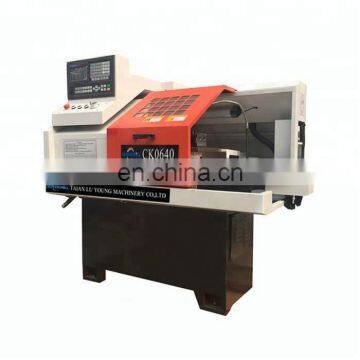

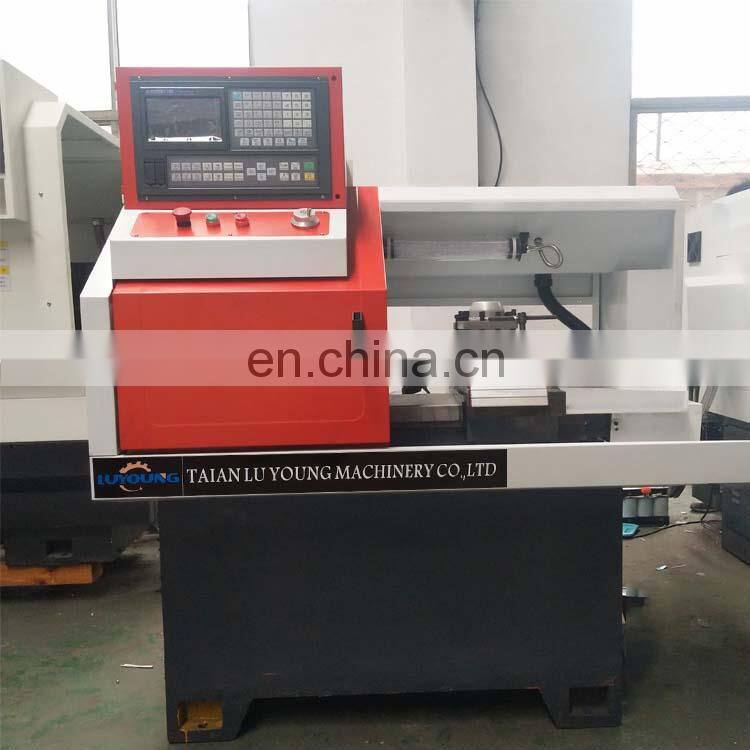

ck0640 high speed precision mini cnc meter lathe
ck0640 high speed precision mini cnc meter lathe using the GSK controller system to realize the Two - axis Control .The use of FANUC, Siemens, KND and other systems; with less noise, high precision, excellent performance characteristics, the CNC machine tools using mechanical and electrical integration design. Beautiful appearance, reasonable structure, wide range of uses, easy to operate. The machine can be automatically controlled, can automatically process a variety of parts of the first round, end, slot, any cone, spherical, and a variety of British and English cylindrical, tapered thread
specification of ck0640 high speed precision mini cnc meter lathe
ck0640 high speed precision mini cnc meter lathe | |||
| Item | Parameter | Unit | CK0640 CNC LATHE |
| Capacity | Max.swing over bed | mm | Φ300 |
| Max.swing over cross slide | mm | Φ130 | |
| piece length | mm | 240 | |
| Spindle | spindle speed | rpm | 50-2500 |
| Fast feeding speed | X-axis Fast feeding speed | m/min | 1-2000 |
| Z--axis Fast feeding speed | m/min | 1-1800 | |
| Axis stroke | X-axis travel stroke(mm) | mm | 200 |
| Z--axis travel stroke(mm) | mm | / | |
| Power | Main motor power | KW | 3 |
| Clamping | Type | / | Pnematic collet |
| Thread machining scope | Metric system(mm) | mm | 0.25~12 |
| British system | 28~3 1/2 | ||
| Tailstock | Tailstock sleeve dia. | mm | / |
| Tailstock sleeve travel | mm | / | |
| Tailstock sleeve taper | / | ||
| Dimension | length× width × high | mm | 1550×920×1450 |
| Weight | Net weight | KG | 850 |
| Standard configuration | Option configuration | ||
| GSK928TD-L | Siemens, Fanuc cnc controller | ||
| Pneumatic spring collet(2pcs free) | Pneumatic chuck | ||
| Gang type tool carrier | 4 station electrice tool holder | ||
| Auto lubrication system | Auto feeder system | ||
| Lighting system | Hydraulic chuck | ||
| cooling system | tailstock | ||
| 380V 3 phase | if your local have special request pls let us know | ||
Optional configuration of ck0640 high speed precision mini cnc meter lathe
Application of CNC lathe machine:
Product process of ck0640 high speed precision mini cnc meter lathe:
Hot selling flat bed high precision CNC lathe machine for metal
CK0640 mini CNC lathe machine CK6432 small CNC lathe machine |
CK6130 small CNC lathe machine CK6132 small CNC lathe machine |
1.Strong strength,The company has 20 years of production experience, rich product range to meet the needs of different customers.
2.Quality product ,Workshop workers skilled and rigorous testing of product quality, strict control of each production process.
3.Direct factory price,provide competitive factory price and save your costs.
4.7×24 hours after-sale service,Any questions, please contact us directly at any time
5.Strong packing,will protect the goods from any possible damage during transit.
6.TRADE ASSURANCE,protect your orders from payment to delivery.
Strong strength :20 years' production experience
The main product of Shandong Luyoung Machinery Co.,Ltd is CNC lathe machine, CNC milling machine, CNC machine centers,CNC swiss type automatic lathe.
Annual output is 900sets/ year.
1.More than 20 years of production experience.
2.Exported more than 40 countries.
3.More than 300 staffs in factory.
4.CE and ISO9001 certification
5.7×24 hours online service
Exported more than 40 countries around the world, please look who choose us:
Feedback from our customer:
7×24 hours after-sale service
1. Warranty for one year .
2.Supply 7×24 hours online technology support.
3.Professional solution one by one.
4.Free training for customers online or in our factory.
5.The oversea service is available.
Strong packing will protect the goods from any possible damage during transit
Packaing information of ck0640 high speed precision mini cnc meter lathe
| Packaging material | Non-fumigation plywood crate |
| Base plate | Steel |
| Packaing size of CK0640(mm) | 1650×1050×1700 |
| packaging feature | 1.Non-fumigation packaging, we use seaworthy plywood. 2. Steel base plate, it is stronger 3-5 times than normal plywood base plate. 3.Water-proof and damp proof, water resistant film wraped all the machine. 4.Fully sheathed case,prevention of collision and keep the goods intact. |
FAQ
1.How to get the best quotation?
Tell me the model ,quantity and your requirements, then we will give you our best price to you.
2.If we don’t know the model of the lathe,how to choose the model?
Send the drawing of the workpiece ,then our technicist will recommend the exact model to you.
3.How about the MOQ(Minimum Order Quantity)?
1 set
4.Can we place an order by TRADE ASSURANCE?
Of course, all of our orders can be placed by this way. Please rest assured your money.
5.How long about your guarantee period?
12 months. If there are accessories damaged during the warranty period,we will we will replace it for free.
How to contact us?
Tel:86-0538-8881618
Mobile:8618660853235
Whatsapp:+8618660853235
Wechat:18660853235/QQ:3494630853
Skype: live:sales03_1722
Website:
Any questions please let us know,don't hesitate! Thanks in advance!
