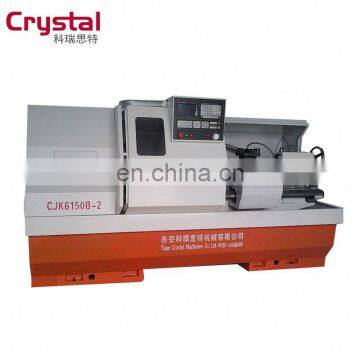

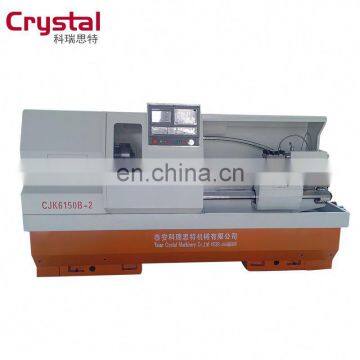

Economic big bore large cnc lathe CJK-series 6150

Economic big bore large cnc lathe CJK-series 6150

Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also can process the single and multiple threads in metric, inch and other standards.

CJK6150B-2 Lathe Features:

1. High frequency quenching rail, hardness and high wear resistance

2. 3-gear spindle speed, step-less in gear

3. Spindle with high speed and high precision bearings

4. Increase the spindle diameter to φ82mm, chuck diameter φ250mm

CJK6150B-2 Lathe Specifications:

 CJK6150B-2 Lathe Details:

1. Guide width: 90mm

2. Spindle bore: 82mm

3. 4-position electrical tool carrier/turret/post

4. Spindle speed: auto 3 -steps speed change by one handle, stepless speed change in the step ( range of spindle speed: 20-100,100-550,400-1600rpm)

5. X/Z axis servo drive

6. CNC system: GSK980TB2

7. Motor power: 7.5KW

8. Automatic electronic pump lubrication

9. Semi-enclosed protection

10. Manual chuck,manual tailstock

CJK6150B-2 Lathe Optional Configuration :

1. Siemens system /Fanuc system

2. Hydraulic chuck/ pneumatic chuck

3. Hydraulic tailstock/ pneumatic tailstock

4. 6-piece electric tool post/8- piece electric tool post/ Gang type tool

5. Auto bar feeder

1.Q:Can we pay by L/C?

   A:Yes, we can do T/T, L/C etc.

2.Q: What is your payment terms?

   A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.

3.Q: What is your delivery time?

   A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange

       shipment as soon as we receive the payment.

4.Q: Can we go to your factory and learn how to use the machine?

   A:We sincerely welcome you come to our beautiful city. The training is free. It would

       be great honor to us.

5.Q:Can you arrange training in our place after we bought your machine?

   A:We can arrange oversea training. Buyers will be responsible to the costs.

6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your

machine?

   A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.

7.Q: Do you have CE certification?

   A: yes, we have CE certification, machine quality is guaranteed.

8.Q: Is your company a factory or trading company?

   A: We are factory and have more than 18 years production experience.

9.Q: How can I get the quotation?

   A:You can send the inquiry on , or send email to us. It is better if you can

       tell what is your detailed requests. We will reply to you within 1 hour.

10.Q:What is the Control of your lathe? Can I change it to other brand?

   A:The standard control of our lathe is GSK. You also can change other controls,

       such as FANUC,Siemens and so on.
