Mazak CNC Lathe Machine Brand for Sale CK6150T
- 1000 Set / Sets per Month
- T/T Credit Card
- High Efficiency CNC Lathe Machine Metalworking CK6140A
- Chinese high precision lathe CNC machine CK6140 for metal machining
- automatic turning machine KND system cnc lathe CK6140A
- Professional Factory Produce horizontal cmc lathe CK6140A
- Metal CNC Lathe Machine Automatic Feeder CK6136A-2
- oil-bath automatic feeder cnc lathe frame CK6132A
Product Details
Brand Name: | Crystal | Place of Origin: | Shandong, China | Model Number: | CK6150T |
Year: | 2018 | Condition: | New |
Product Description

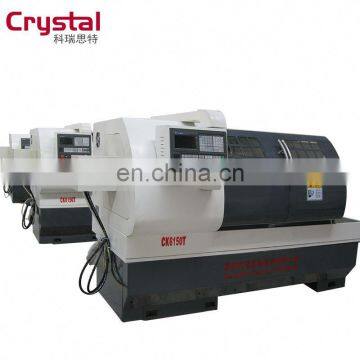

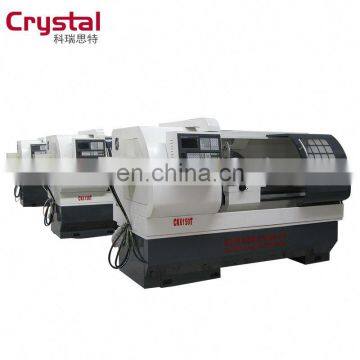

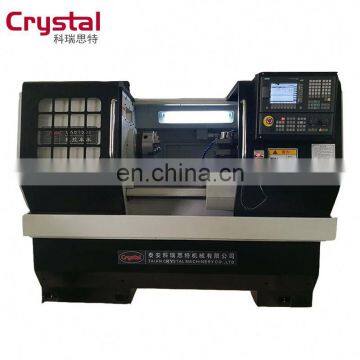

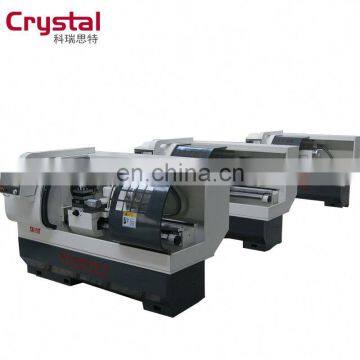

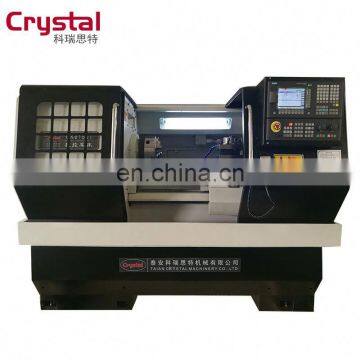

Mazak CNC Lathe Machine Brand for Sale CK6150T
The machine through the numerical control system could automatically process the inside and outside cylinder surface, cone surface, circular, arc surface, end face etc. Also can process the single and multiple threads in metric, inch and other standards.
A. Main Features
1. It is made from the whole cast-iron, which is heavy enough with good rigidity and
stability.
2. Three gears controlled by a handle, stepless speed regulation, with lower noise and
high- standard machining accuracy, is an environmental- protective machine.
3. The spindle is the high- rotate speed and sophisticated bearing with smooth surface.
The extra size diameter of the spindle bore is φ72mm while the diameter of chuck is
φ250mm.
B.Specification of CK6150T
ITEMS | Specifications |
Max. swing over bed | Φ500mm |
Max. swing over carriage | Φ290mm |
Max. length of work piece | 1000mm |
Width of the machine | 360mm |
Size of three-jaw chuck | 250mm |
Range of spindle speed | 150-2000rpm |
Spindle bore | Φ72mm |
Spindle taper | 1:20/Φ90 |
Spindle nose | Type of spindle head D-8 |
Spindle speed step | step-less |
Stations of tool carrier | 4 station electric tool carrier |
Tool bar section | 25X25mm |
X/Z axis position accuracy | 0.02/0.025mm |
X/Z axis repeatability | 0.01/0.012mm |
X/Z axis torque | 6/10N.M |
X/Z axis travel | 280/1000mm |
X/Z axis fast feeding speed | 8/10 M/MIN |
Taper of tailstock quill | MT5 |
Max. range of tailstock quill | 150mm |
Motor power | 7.5KW |
Packing size(length ×width ×height) | 2660mm×1560mm×1730mm |
Gross weight | 2500kg |
C. Standard configurations
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station electric tool carrier
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50/60Hz
D. Optional configurations
1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
Make you satisfied is our business!
1. The first batch of supplier joined Alibaba Trade Assurance.
Amount up to the top of Machinery Industry. Zero-risk Purchase service.
2. Over 400 clients from more than 80 countries could tell you we are your reliable
partner.
3. Professional in cnc machine.
Our price could beat any competitors in China market.
4. We supply professional solution based on your own process one by one.
5. Customer-made configurations available. Provide you more choices.
6. 7*24 hours before and after sale service.
7. 2 years guarantee for whole machine, 3 years warranty fro CNC system, servo
motor, guide-rail.
