Product Details
| Brand Name | crystal | Place of Origin | Shandong, China | |
| Model Number | CK6140A | |||
| Year | 2019 | Condition | New |
Product Description

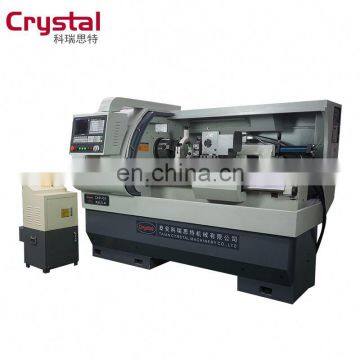

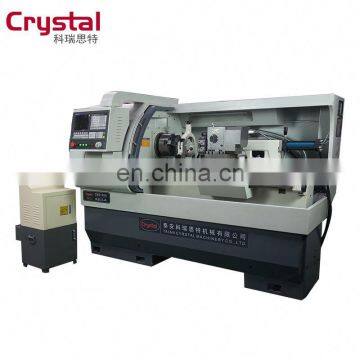

Top Quality Factory Supply CK6140 cnc lathe torno cnc
Machine can automatically process the inside and outside cylinder surface, cone surface, circular arc surface, end face, such as processing, and also
can process the single and multiple threads in metric, inch and other standards.
Main Features:
Frequency conversion stepless speed regulation
Higher working efficiency
Higher rigidity cast iron
Fully enclosed-safety
CK6140A Specification:
Max. swing over bed | mm | Φ400 |
Max. swing over cross slide | mm | Φ225 |
Max. processing length | mm | 750/1000 |
Spindle Taper |
| MT6 |
Thu-hole dia. of spindle | mm | Φ60 |
Max. spindle speed | rpm | 150-2500 |
Chuck size | mm | 250 |
Spindle motor | kw | 5.5 |
X/Z axis Position accuracy | mm | 0.01/0.015 |
X/Z axis repeatability | mm | 0.012/0.013 |
X/Z axis feed motor torque | N.m | X:5 Z:7.5 |
X/Z axis fast feeding speed | Mm/min | X:6 Z:8 |
Tailstock sleeve travel | # | 120 |
Tailstock sleeve taper | # | MT4 |
Tool post type |
| 4 -piece electric tool post |
Tool bar section | mm | 20*20/25*25 |
Machine dimension (L×W×H) | mm | 2120/2370×1400×1700 |
N.W | Kg | 1800/1950 |
Standard configuration:
1. System:GSK-928TDL,
2. 3 jaw manual chuck
3. 4 station tool
4. Manual tailstock
5. Lighting system
6. Cooling system
7. Automatic lubrication system
8. 3 phase 380v 50Hz
Optional configuration:
Siemens system /Fanuc system
Hydraulic chuck/ pneumatic chuck
Hydraulic collet/ pneumatic collet
6-piece electric tool post/8- piece electric tool post/ Gang type tool
Auto bar feeder


1.Q:Can we pay by L/C?
A:Yes, we can do T/T, L/C etc.
2.Q: What is your payment terms?
A:Our payment term is 30% T/T in advance, 70% T/T before shipment.It is negotiable.
3.Q: What is your delivery time?
A:Usually, one machine takes 15-20 days. IF we have in stock, we can arrange
shipment as soon as we receive the payment.
4.Q: Can we go to your factory and learn how to use the machine?
A:We sincerely welcome you come to our beautiful city. The training is free. It would
be great honor to us.
5.Q:Can you arrange training in our place after we bought your machine?
A:We can arrange oversea training. Buyers will be responsible to the costs.
6.Q:How many Voltage ? How many Phases 1 or 3? How many hertz (Hz)? of your
machine?
A:Our standard is 3 phase, 380V, 50/60Hz. All can be customer made.
7.Q: Do you have CE certification?
A: yes, we have CE certification, machine quality is guaranteed.
8.Q: Is your company a factory or trading company?
A: We are factory and have more than 18 years production experience.
9.Q: How can I get the quotation?
A:You can send the inquiry on , or send email to us. It is better if you can
tell what is your detailed requests. We will reply to you within 1 hour.
10.Q:What is the Control of your lathe? Can I change it to other brand?
A:The standard control of our lathe is GSK. You also can change other controls,
such as FANUC,Siemens and so on.
