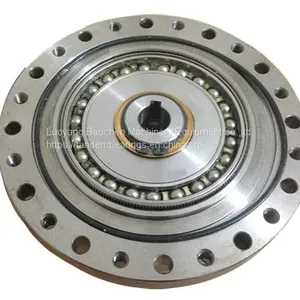

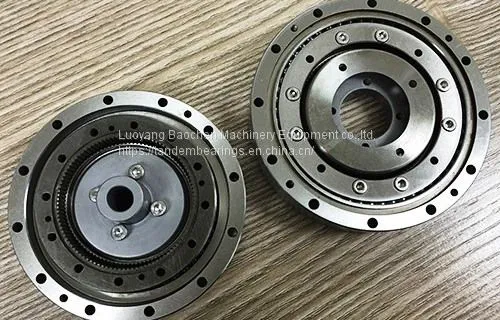

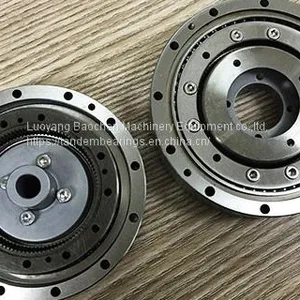

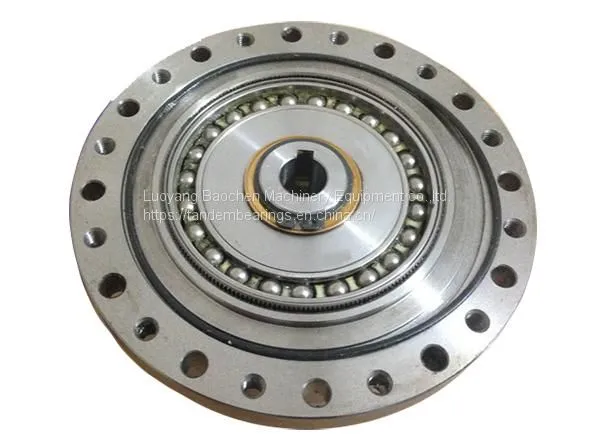

Ultra-flat Actuator MUA060
1.O.D: Φ75mm
2.Length: 35.3mm
3.Momentary max. output torque（withstand in 5 seconds）：35Nm
4.Output torque up to 12Nm in output speed of 60rpm
Product description: An optimized combination with pancake BLDC external rotor motor within Hall effect and thermal sensor and planetary gearbox. Saving weight and space in top priority.
1.Advantages: Ultra-flat body, High torque, High shock load capability；
2.Features and benefits：
Ultra-flat body
Supply voltage DC 24v
Hall effect sensor and thermal sensor（option）
Low cogging
Low on starting torque
Low back-driving torque
Saving weight and space
3.specification：
We provides a variety of custom-made options and configurations, please email us.
Item |
Unit |
Model |
|
MUA060 |
MUA07 |
||
Supply voltage of power |
V |
24 DC |
24 DC |
Supply voltage of Hall effect sensor |
V |
5 DC |
5 DC |
Reduction ratio |
63:1 |
55.6:1 |
|
Momentary max. output torque(withstand in 5 seconds)*1 |
Nm |
35 |
80 |
Momentary max. Current(withstand in 5 seconds)*1 |
A |
13.5 |
40 |
Momentary max. output torque(withstand in 30 seconds)*2 |
Nm |
19 |
45 |
Momentary max. Current(withstand in 30 seconds)*2 |
A |
7.5 |
22 |
Max.Speed under no load |
rpm |
84±15% |
105±15% |
Continuous torque in speed of 60rpm*3 |
Nm |
12 |
23 |
Continuous current in speed of 60rpm*3 |
A |
4.5 |
11 |
Design life Ld*4(grease lubrication) |
h |
6000 |
6000 |
Actual service life L (grease lubrication) |
h |
Ld：design life Navg：avg. Speed N0=40rpm Tavg：avg. load torque T0=10Nm |
Ld：design life Navg：avg. Speed N0=40rpm Tavg：avg. load torque T0=20Nm |
Torque constant |
Nm/A (rms) |
2.6±15% |
2.2±15% |
Inertia |
Kgm2 |
0.1 |
0.2 |
Backlash |
Degree |
0.3(approximate) |
0.3(approximate) |
Back-driving torque |
Nm |
1.2 |
1.5 |
Bending moment |
Nm |
32 |
80 |
weight |
g |
410 |
645 |
IP class |
IP00 |
IP00 |
|
Notes：
1. Assuming ambient temperature of 25°C,0.1 bar, continuous torque and current delivered by actuator at 5 second overload period;
2. Assuming ambient temperature of 25°C,0.1 bar, continuous torque and current delivered by actuator at 30 second overload period；
3. Assuming ambient temperature of 25°C,0.1 bar, continuous torque and current delivered by actuator at saturation temperature of wire.
4. Assuming the planetary gearbox is able to work well in design life period.
