6050 Cnc Coin Mold Engraving Magic 3 Axis Metal Sign Making Machine
- T/T Credit Card
You May Like
-
Milling Machines Shoe Mouldworking Aluminum Metal Processing Cnc Mill For Sale
-
Milling Machine For Making Shoe Mould With Oil Chiller Linear Guide High Definition Cnc Engraver
-
Multi-purpose Linear Guides AC Servo Motor Metal Engraving Machinery
-
DC6050A High Accuracy CNC Aluminum Production Moulds Making Machine
-
DC6050A Good Price CNC Milling And Engraving Factory Machines
-
Cnc Vertical Cnc Milling Machine With FAGOR Controller
Product Details
| Brand Name | KAIBOCNC | Place of Origin | Zhejiang, China | |
| Certification | CE, ISO9001, ISO14001 | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 2500Kg | |
| Application | Wood, Aluminum, Iron | Rated Power | 9Kw | |
| Condition | New | Engraving Speed | 8m/min | |
| Dimensions | 1850*1800*1910mm | Milling Cutter Diameter | 3.17-12mm | |
| Feeding Height | 1m | Main Axle Rotational Speed | 24000rpm |
Product Description

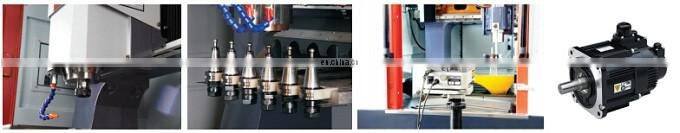

Standard features:
1. Cooling system: Oil circulating oil cooler for spindle, cooling workpieces with water or oil in the tank or saponification liquid through or spray nozzle
2. Gantry structure: The double column is whole part, greatly increase machine rigidity.
3. Quality assurance: Each device before leaving the factory, we will test the cue with laser interferometer
4. SYNTEC control system: from Taiwan with high performance and competitive price
5. Servo motor and drives: from Japan with high precision and long life
6. HIWIN linear guide: made from Taiwan,used for linear reciprocating stadium
8. Main axle:3kw high precision variable frequency main axle turns machining into a kind of artistic model.
Application:
Processing material: Steel, iron, copper, aluminum, glass, wood and other materials
Option parts:
1.The working range can be customized as per your requests;
2.Control system: Weihong(Syntec or FAGOR) or as your request
3.Can be 3 axis and 4 axis or 5 axis universal.
4.Different linear guide, precision ball screw, servo motor, system components as your request
1.Description of CNC Machine
| Main Specification | Unit | metal sign making machine |
| X-axis travel | mm | 600 |
| Y-axis travel | mm | 500 |
| Z-axis travel | mm | 170 |
| Z-axis space | mm | 380 |
| Positioning accuracy | mm | 0.01/300 |
| Repeatable Accuracy | mm | 0.01 |
| Worktable size | mm | 600X535 |
| Max. Loading | kg | 250 |
| Rapid speed | m/minute | 8 |
| Spindle speed | rpm | 21000 |
| Machine weight | T | 2.5 |
| Overall size | mm | 2100*1700*1900 |
| Power | three-phase 380V | 9KW |
| Servo motor power | W | 750W |
| Servo motor drive | W | 750W |
| Tool holder | Er20 | |
| Standard Accessories | Linear Guides(HG30-30) | Hiwin/Taiwan or Rexroth/German |
| Ball Screw(2505) | Hiwin/Taiwan | |
| Servo Motor(750w) | Panasonic /Japan | |
| Servo Motor Drives(750w) | Panasonic /Japan | |
| High-speed Spindle(3.0kw) | Bohua / China | |
| Spindle Inverter(3.7kw) | Taian/Taiwan | |
| Electronic Hand-Wheel(EHDW-BA5S-1) | Yuanzhan/Taiwan |

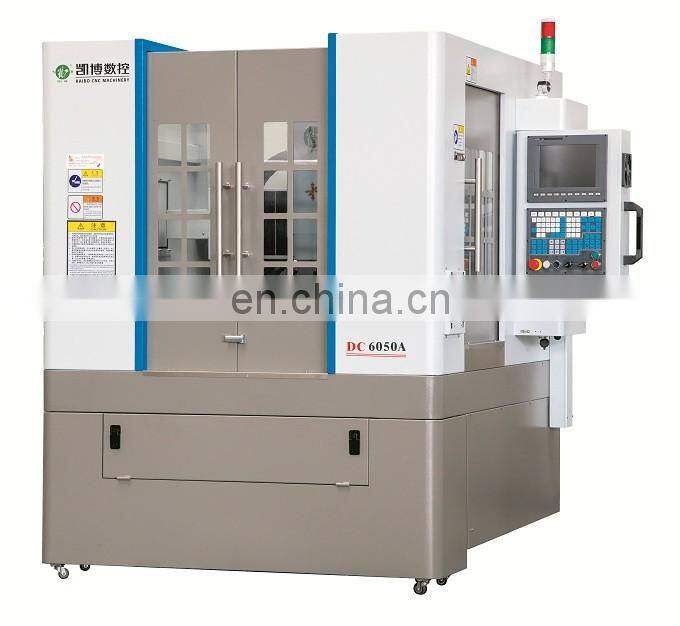

2.Pictures of CNC Machine
Trade Item Of Products
| Transportation | always by sea |
| Payment terms | T/T,L/C At Sight or as your request |
| Package | 1 piece/carton,piece into a master carton |
| Delivery time | by sea,within 45 work days |
Our Best Services For You
1.Technician available for training and installation at customer's company
2.Internet service by sending emails and videos,communicating online or calling
3.We will reply you as soon as possible after we receive your email
4.We can offer both OEM and ODM service according to customers' request
5.If novelties exist in any non-human-made problems,please contact us at your first time and we will offer you a satisfied
solution according to your suitation
1.About Us
With over 20 years of machine tools manufacturing experience,in particular CNC engraving milling machines.
Kaibo with independent research and development, design, production, has been named China famous brand.
In china,only CNC Engraving milling machines share more than 30% market.
Kaibo developed the CNC engraving milling machine corporate standards, Was designated as the national standard
by GB in 2009.Kaibo total of three plants, 360 staffs,210 technicians. From 2007,output value of more than 20
millon dollars,So far remained 20% -30% growth each year,each year produce over 2000pcs .
Kaibo excellent quality CNC engraving machines has won wide recognition of mold manufacturing, metal cutting
and other sectors.And exported to many countries such as Vietnam, India,Indonesia,Bangladesh,Turkey,Iran,Russia,
South America.
We will always work with aim of "Forging competitive engraving products to meet demand of customers"and will
try our best to offer highly active service."
2.Our Company Show
3.Certificates For Our CNC Machine
4,Welcome To Contact Us
