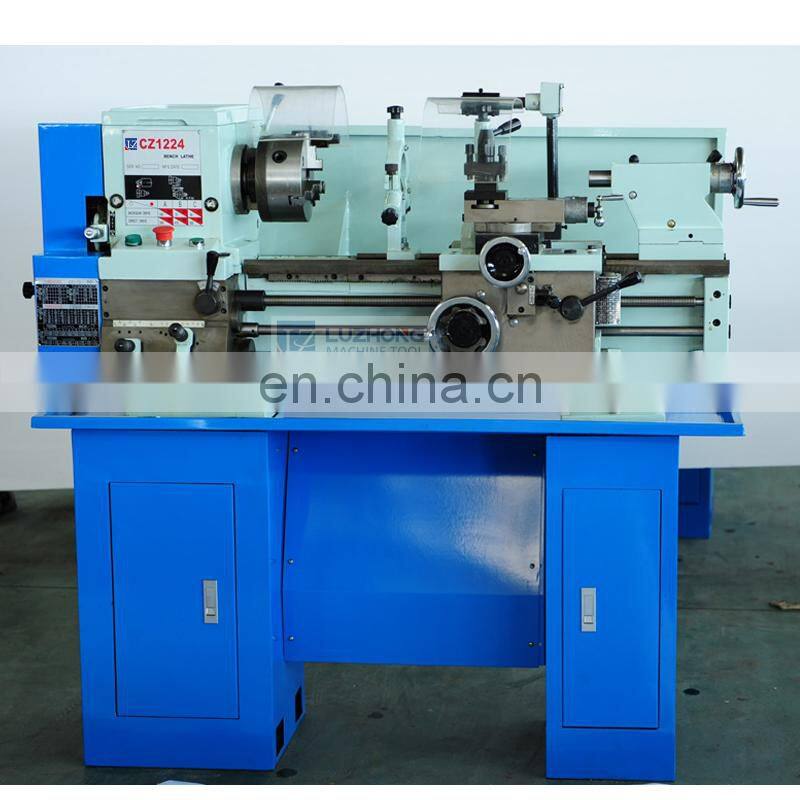

CZ1224 CZ1237 Mini bench hobby lathe lathe machine price
The main performance characteristics:
1.Engineered from high grade castings
2.V way bed ways induction hardened and ground
3.Gap bed
4.Cross and longitudinal interlocking feed, enough safety
5.Inching switch for test running
6.Metric/Imperial threading available
7.Belt-driven headstock,low noise and easy operation
Product main technical parameters:
Specifications |
| CZ1224 | CZ1237 |
Swing over bed | mm | 305 | 305 |
Swing over carriage | mm | 173 | 173 |
Swing over gap | mm | 440 | 440 |
Width of bed-way | mm | 182 | 182 |
Distance between centers | mm | 530 | 940 |
Spindle taper |
| MT5 | MT5 |
Spindle bore | mm | 36 | 36 |
Step of speed |
| 12 | 12 |
Range of speed | rpm | 50-1200 | 50~1200 |
Metric thread | mm | 15 kinds(0.25~7.5) | 15 kinds(0.25~7.5) |
Inch thread | T.P.I | 40 kinds(4~112T.P.I) | 40 kinds(4~112T.P.I) |
Range of feed amount | Mm/r | 0.12~0.42(0.0017’’~0.0165’’) | 0.12~0.42(0.0017’’~0.0165’’) |
Diameter of lead screw | mm | 22(7/8’’) | 22(7/8’’) |
Pitch of lead screw |
| 3mm or 8 T.P.I | 3mm or 8 T.P.I |
Saddle travel | mm | 510 | 810 |
Cross travel | mm | 150 | 150 |
Compound travel | mm | 90 | 85 |
Barrel travel | mm | 100 | 95 |
Barrel diameter | mm | 32 | 32 |
Taper of center | mm | MT3 | MT3 |
Motor power | Kw | 1.1 | 1.1 |
Motor for coolant system’s power | Kw | 0.04 | 0.04 |
Machine(L×W×H) | mm | 1420x750x650 | 1780x750x650 |
Stand (left)(L×W×H) | mm | 400x370x3700 | 400x370x3700 |
Stand (right)(L×W×H) | mm | 300x370x700 | 300x370x700 |
Machine | Kg | 365/415 | 385/435 |
Machine stand | Kg | 60/65 | 60/65 |
Tengzhou Luzhong Machine Tool Co., Ltd. is a large-scale manufacturing enterprise with glorious chievement and long history .Founed in 1992 ,company covers an area of 30 thousand square meters, the construction covers area of 250 thousand square meters.
Our main products are : CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machine ,Drilling Machine ,Milling Machine and others metal cutting machine tools .All the products above have passed CE ,ISO ,SGS ,TUV certificates .

Machine Model: CZ1224 CZ1237 Mini bench hobby lathe lathe machine price
Type of package: Plywood case
N.W./G.W.: 365/415GS 385/435kg

1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.
4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )
