Home > Products > Alloy wheel repair equipment > High Quality Cnc Wheel Repair Lathe Machine for Sale AWR3050

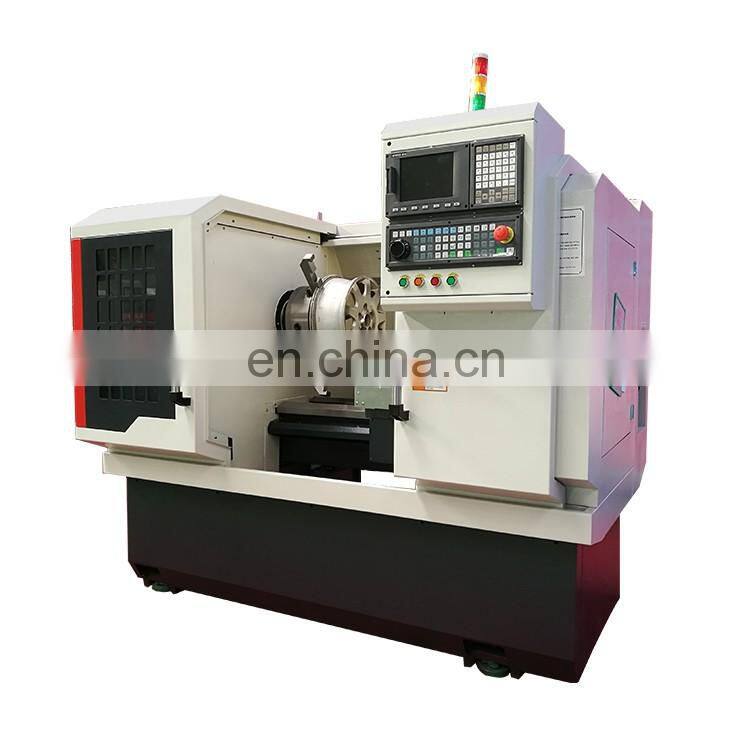

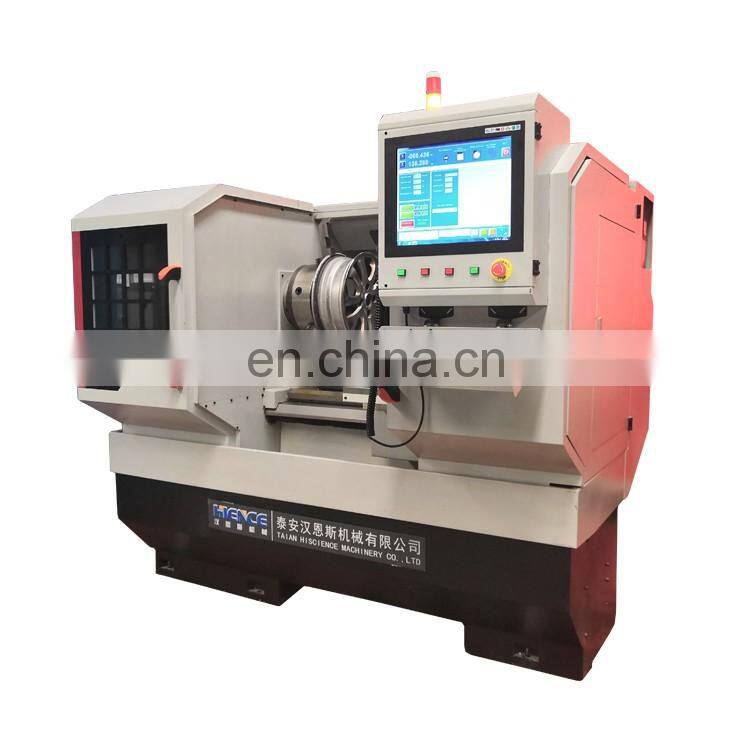

High Quality Cnc Wheel Repair Lathe Machine for Sale AWR3050

FOB Price

US$ 15,000 - 17,000 / Set

1 Set(Min. Order)

Port Qingdao Ningbo Shanghai
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	AWR3050
Condition	New

Product Description

Product Application

1. Diamond Cutter 1 set;
2. 3-Jaws Chuck(With Special Soft Jaws)
3. Pioneer Sensing Probe TP300;
4. S YTEC control system;
5. Manual Quick Change Toolpost,Four-station;
6. Work Lighting System;
7. Automatic Lubrication System;
8. Cooling System;
9. Full Enclose(Security Guard Door);
10. Tools&Tool Box
11. Specific Digital Optimization Software;
12. Training Video CD;

ITEMS	AWR3050
Max. swig over bed (mm)(inch)	Φ820 (32')
Max. Size of alloy wheel (inch)	Φ770 (30')
Adjustable stroke of carrier in X direction	400
Max. Stroke of the Z-axis (mm)	1050
Width of the rail (mm)	400
Length of the rail (mm)	1630
Size of the three-jaw chuck (inch)	16'
Range of spindle speed (RPM)	50~1800
Spindle speed control	Automatic
Spindle bore (mm)	Φ82
Taper of spindle bore	1:20(Φ90)
Max. size of tool post	25×25mm
Stations of tool carrier	4 position
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 6m/min
Motor power	7.5KW
Machine base(cast iron base)	Whole
Machine size	2450mm×1820mm×1900mm
Package size	2550mm×1920mm×2200mm
weight	2600kgs

Main Features

1.Our machine can probe and cutting alloy wheels automatic.
2.Can probe and cut different difficult deep dish wheels by longer probe and longer cutter.
3.Can realized different cutting effect according to your request by adjust detection parameters, can realize rainbow line.
4.Can save program for next save models wheels, so no need to probe again for same model wheels. Can save time and money.
5.We offer detailed training video and manual with machine, you can learn the machine by yourself.
