Fast Speed Cheap Swiss Type Cnc Lathe for Sale H-F203E

FOB Price

US$ 30,000 - 37,000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	H-F203E	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Fast speed cheap Swiss type cnc lathe for sale H-F203E

Product Description

Standard specification

Description		Unit	Specification
(Main spindle)	Stroke	mm	75 (Standard) ; 120 (Optional); 210 (Optional) (All travel synchronised guide sleeve)
	Max. RPM	rpm	100~12000
	Max. turning diameter	mm	20
	Additional positive brake	°	Infinite
	Main spindle bore diameter	mm	22
(Tooling)	Number of O.D tools	ea	5
	OD tool size	mm	12X12
	Number of front work tools	ea	4
	Max. drilling diameter(front)	mm	7(ER11)
	Max. tapping diameter(front)	mm	M6(ER11)
(Motor)	Number of cross driven tools	ea	4
	Cross driven tools Max .rpm	rpm	5000
	Max. drilling diameter( radial direction)	mm	8(ER16)
	Max. tapping diameter( radial direction)	mm	M6(ER16)
	Maximum diameter of saw blade milling tools( radial direction)	mm	30(ER16)
	Main spindle motor	kw	2.2/3.7
	Cross driven tools motor	kw	0.75
	Servo motor	kw	(X,Z,Y)0.75
	Lubricant motor	kw	0.25
	Coolant pump	kw	0.85
	Rapid traverse rate	m/min	X/Y 30,Z24
(Others)	Coolant tank capacity	L	100
	Lubrication tank capacity	L	10
	Center height	mm	1050
	Dimensions(L×W×H)	mm	1750×910×1700
	Machine weight	kg	1780
	Power consumption	kw	7
	CNC controller	Standard	LNC-T568

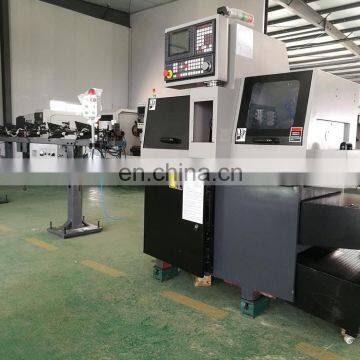

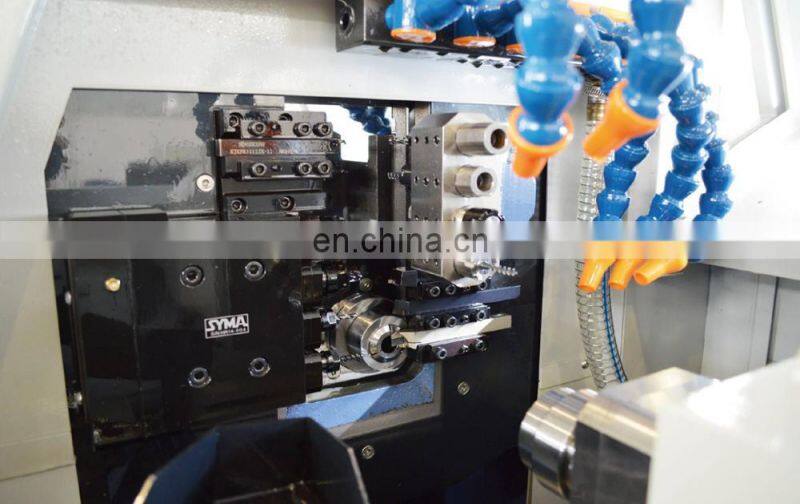

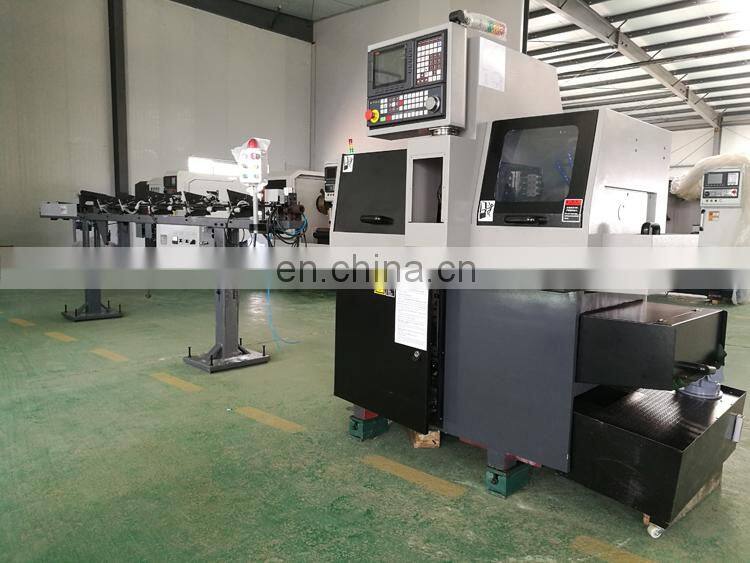

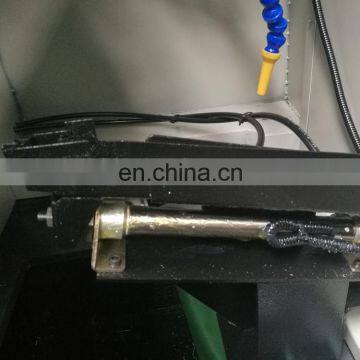

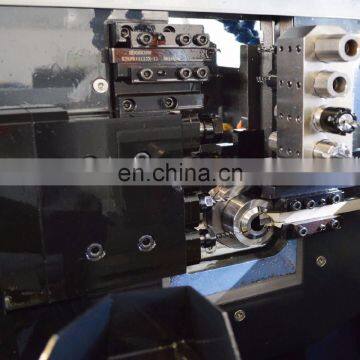

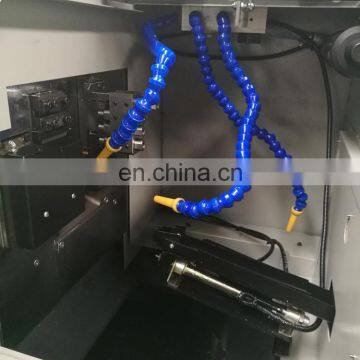

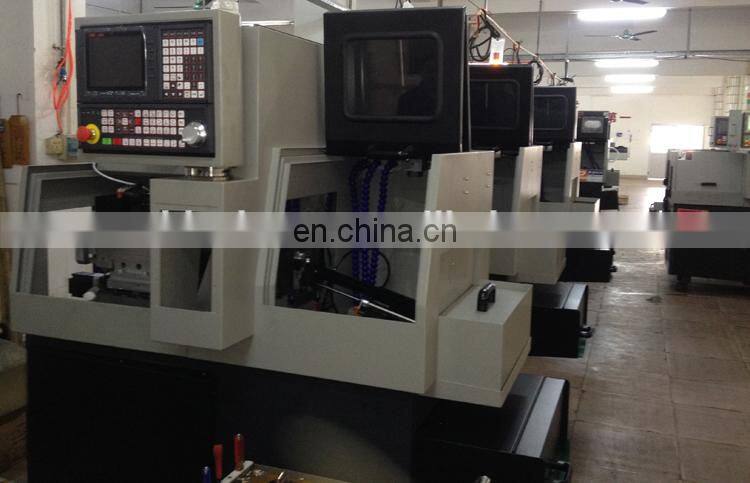

Standard Pictures of H-F203E
