China Horizontal Hydraulic Chuck and Tailstock Cnc Lathe With Fanuc Controller CK6136A-2

FOB Price

US$ 7,600 - 8,500 / Set

1 Set(Min. Order)

Port Shanghai Qingdao Ningbo
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HICNCE		Model Number	CK6136A-2
After-sales Service Provided	Engineers available to service machinery overseas		Condition	New

Product Description

China horizontal hydraulic chuck and tailstock cnc lathe with Fanuc controller CK6136A-2

Product Description

Standard configuration:

1.Cnc system :GSK928(China 's first brand)English interface

2.4-position tools

3.Automatic lubrication pump

4.Manual 3-jaw chuck Φ200mm

5.Manual tailstock

6.Voltage:3 phase 380v 50HZ(If you need other voltage ,please tell me in advance)

7.Water cooling system

lights

9.Tailstock Center

10. Meter / Inch Box

11.Tool Box with Tools

12. Operation & Service ManualCommunity Gear

ITEMS	Specifications
Max. swim over bed	Φ360mm
Max. swim over carriage	Φ190mm
Max. length of work piece	750mm
Width of the machine	330mm
Size of three-jaw chuck	200mm
Range of spindle speed	150-2500rpm
Spindle bore	Φ60mm
Taper of spindle bore	MT6
Stations of tool carrier	4/6/8
Max size of tool post	20mm or 25mm
Min. setting unit of motor	(Z) long 0.001mm,(X) cross 0.001mm
Moving speed of post	(Z) long 8m/min,(X) cross 4m/min
Taper of tailstock quill	MT4
Max. range of tailstock quill	120mm
Motor power	5.5KW
Packing size(length ×width × height)	1950 mm×1400 mm×1650mm
Net weight	1650/1700kg

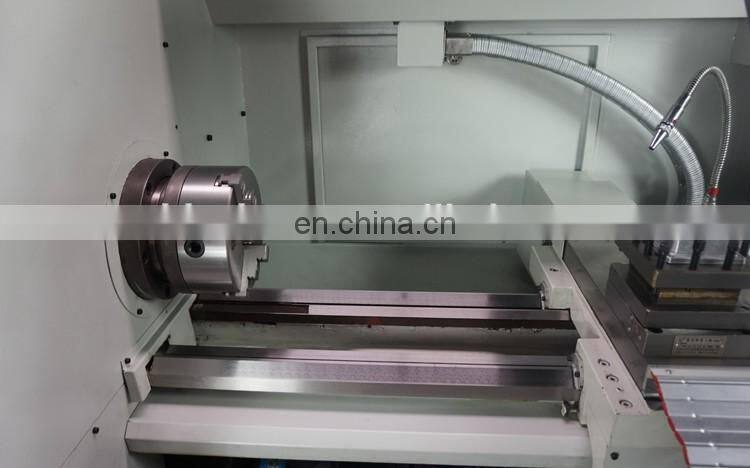

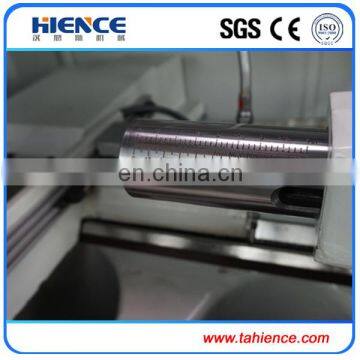

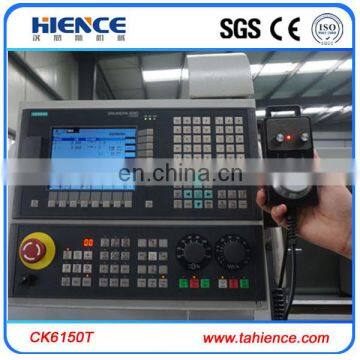

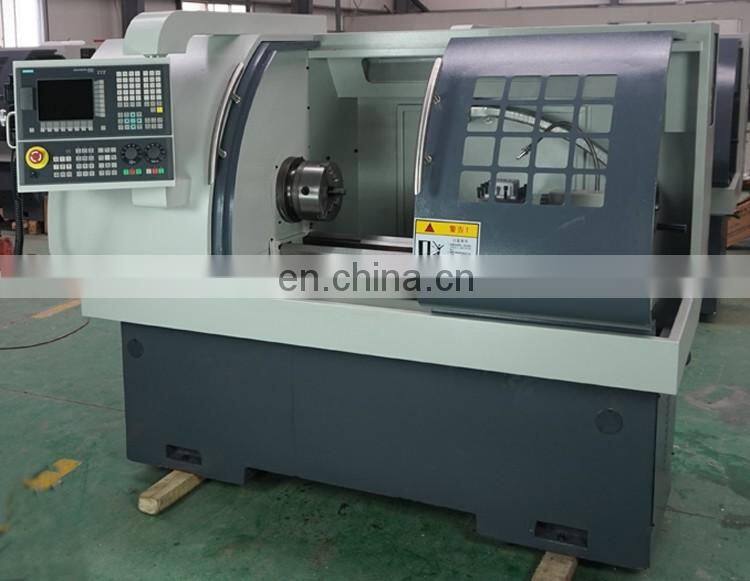

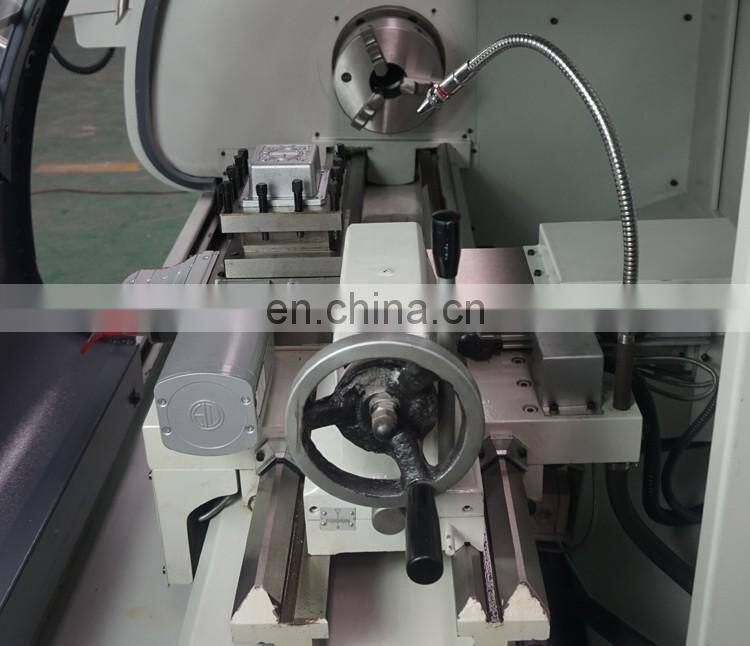

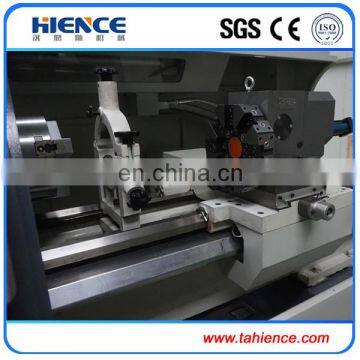

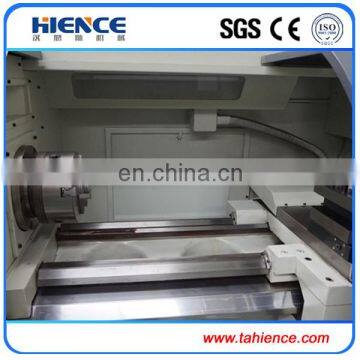

Pictuures of CK6136A —2

Select configuration

Optional brands of CNC systems	GSK,KND,Mitsubishi,SIEMENS,FANUC
Optional types of the tool post	horizontal Six-station, horizontal eight-station
Optional types of the workpiece clamping	hydraulic chuck,pneumatic chuck,spring chuck
Optional types of the tailstock	Hydraulic tailstock,pneumatic tailstock
Optional patterns of feeding	Automatic feeding(Customized programs alone)

Company Information

We have exported machine to over 100 countries, and we have good
reputation from market.

We have professional technology and service teams.

Strict quality control procedures from purchase,produce,
installation,debugging.

Commodity diversification. We can offer various CNC machines for
different usage.

Taian Hiscinece Machinery Co.,Ltd is located in Shandong
province, China. Is dedicated to the research and
development, production and sales of CNC machine tools.
We are manufacturer and trader of CNC lathe ,Slant bed Horizontal
CNC lathe, CNC Pipe threading lathe, CNC wood lathe, CNC milling
machine & machining center, Drilling machine, Manual engine
lathe,CNC Turning Machine center, accessories of CNC machine.
Our company has developed one type new CNC machine for
alloy wheel repair lathe machine which can probe wheels
face and cut automatically.
CNC machine tool has been applied to the airline
industry sector, gradually expand to the automobile,
shipbuilding, machine tools, construction machinery
manufacturing industry.For copper, aluminum , iron,
plastic and other precision parts manufacturing,
applicable to instruments , watches, cars, motorcycles,
bicycles , eye wear , stationery , hardware, sanitary
ware, electronic components , connectors , computers,
cell phones , electronics, military and other industries in
bulk machining small parts, especially the more
complex parts.

1)Q: Which trade term I can choose?
A: You can choose FOB,CIF, DDU or other terms. You can book ship or I can book ship for you.

2)Q: How can I get quotation from you?
A: You can make the inquiry online on Alibaba, or send email to us. It is better if you can tell what is your detailed request information. We will reply to you within 2 hours on work days, and within 24 hours on holiday.

3)Q: How can I choose right machine and how to assure quality?
A: You can choose machine on our website accodring to your request. Or You can let our seller know what is your request specifcation or what is your parts, so let our seller recommend suitable machine to you. We have do trade machine years, and export machine to over 100 countries. We have CE, ISO, SGS and other quality certificate.

4)Q: how can I make the payment?
A: We can make the deal on Alibaba online platform, you can pay by T/T or Credit card. You can also pay to my company business bank account. You can also choose L/C or other way.

5)Q: How long does it take to get machine?
A: If the machine you will order is standard machine, we can ready the machine within 15days. If special machine, please confirm with our seller. The ship time is about 30 days to Europe, America. If you are from Australia, or Asia, it will be shorter. You can place order according to delivery time and ship time.

6)Q: how about warranty?
A: warranty is one year, but we will offer lifetime service for machine.
