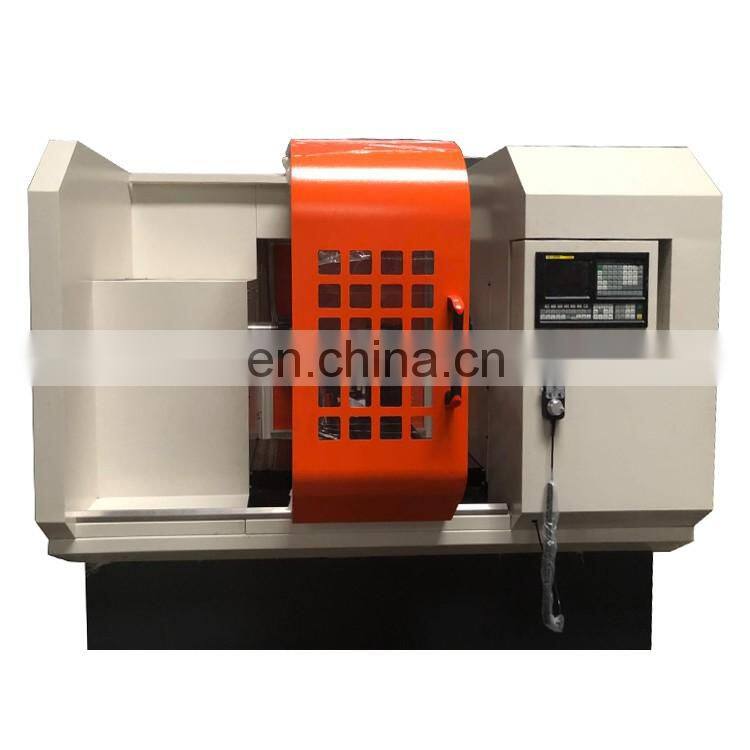

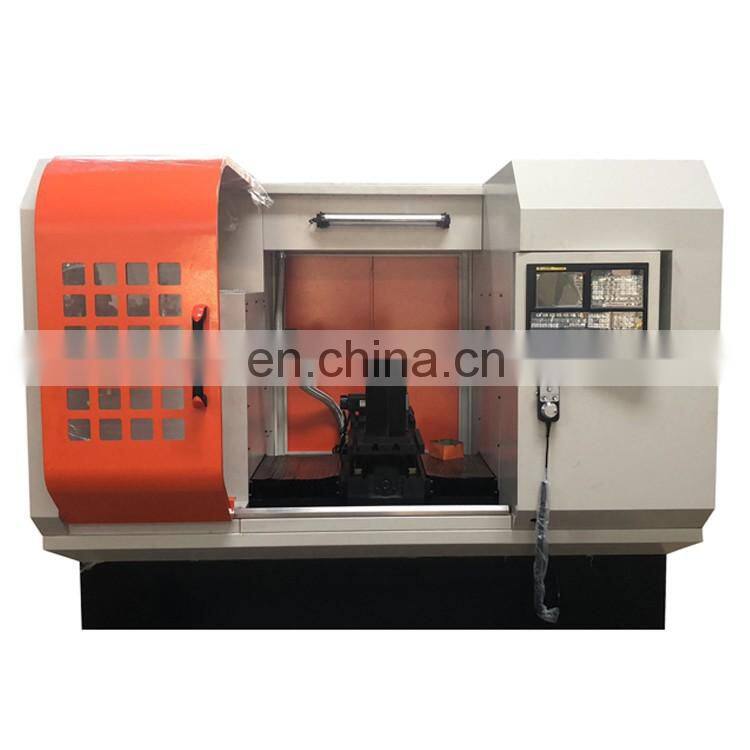

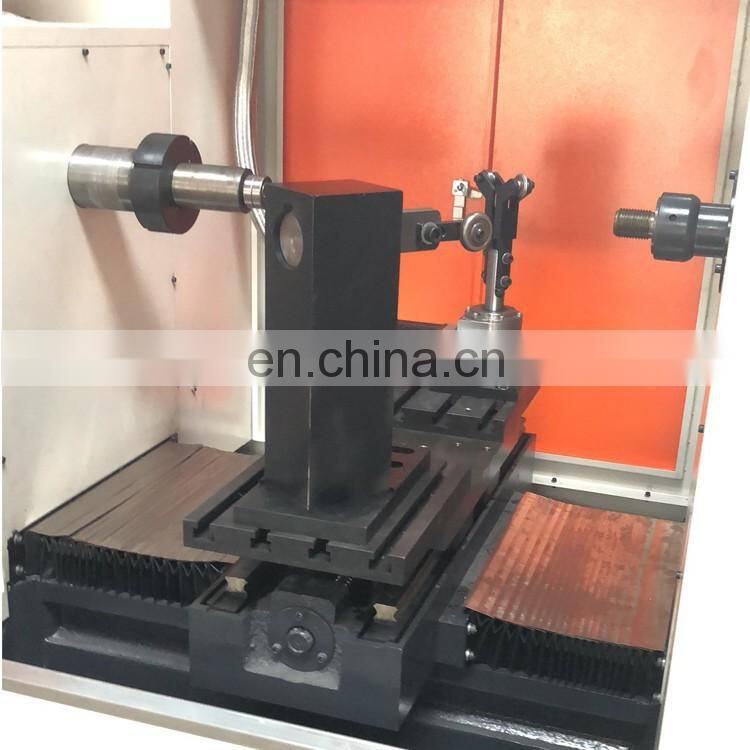

Horizontal Cnc Spinning Shaping Machine HS600

FOB Price

US$ 30,000 - 33,500 / Set

1 Set(Min. Order)

Port Qingdao Shanghai Ningbo Tianjin
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HIENCE	Place of Origin	Shandong, China
Model Number	HS600	After-sales Service Provided	Engineers available to service machinery overseas
Condition	New

Product Description

Configuration and specification

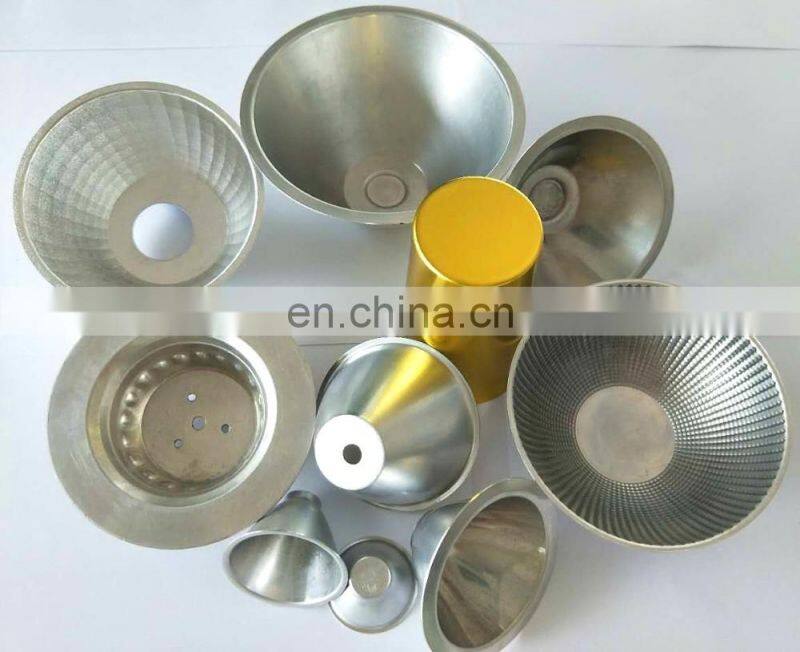

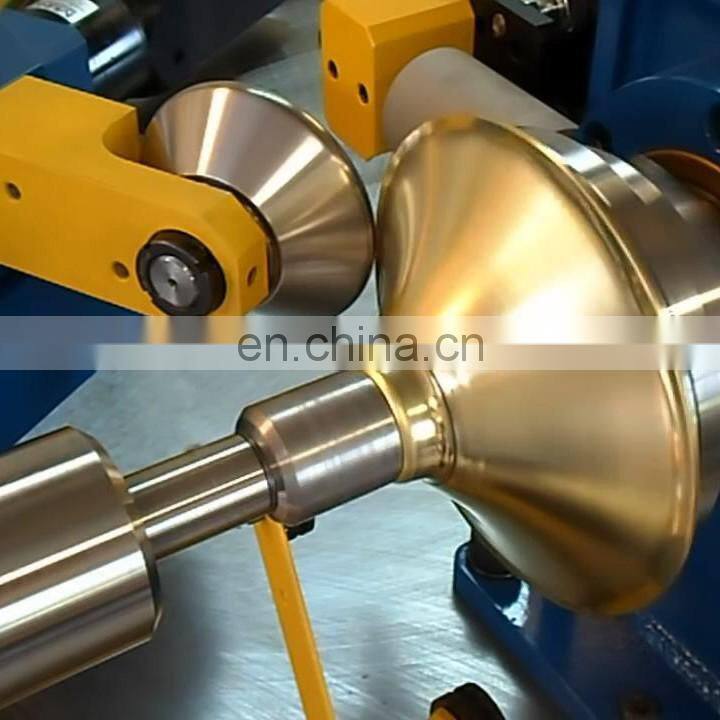

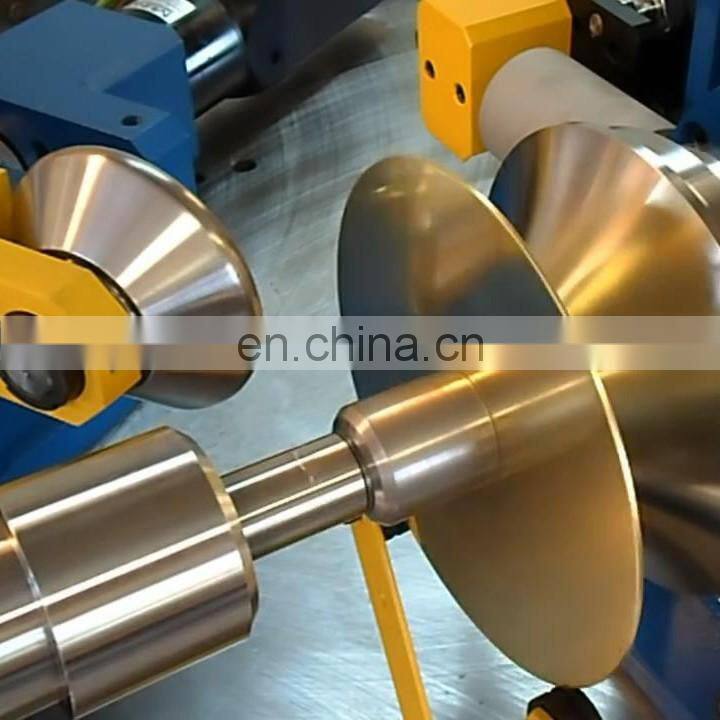

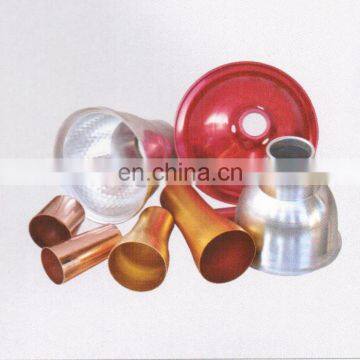

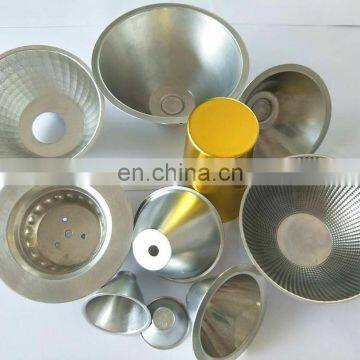

Applies to lighting ,cooking utensils ,handicrafts wait until the industry a variety of substrates such as aluminum,cooper,iron,stainless steel plate and steel plate spinning process.Complete series of products of mass of the bucket,conical,parabolic,hom type,warhead type.

Items	Specification
Number of spinning roller	Synchronous roller 4+ swiveling roller 1
Max diameter of workpiece	1000mm
The maximum rotary diameter over the plate.	700mm
Max length of workpiece	450mm
Thickness of workpiece	0.5mm-2.0mm（Aluminum, copper）、0.5-2.5mm（Iron）、0.3-1.0mm（stainless steel）
Stroke of X/Z axis	500mm/500mm
Z axis thrust	30kn
The tailstock thrust	20kn
Guide rail	Liner guide rail
Width of lathe bed	900mm
X/Z axis fast speed	10/15m/min
Positioning accuracy	0.01mm
Repositioning Accuracy	0.005mm
Model of spindle nose	M42*4
Spindle bore	∮10 (blow )
Spindle speed	3000rpm
Stroke of tailstock	300mm
Tail sleeve movement.	200mm
Diameter of tailstock sleeve	∮70
Main motor power	5.5kw
Machining accuracy	1t6
Surface roughness	Ra1.25
size（length×width×height）（mm）	250015002000
Net weight（Kg）	3000
Controller	KEYUAN from Guangzhou

Maybe you like

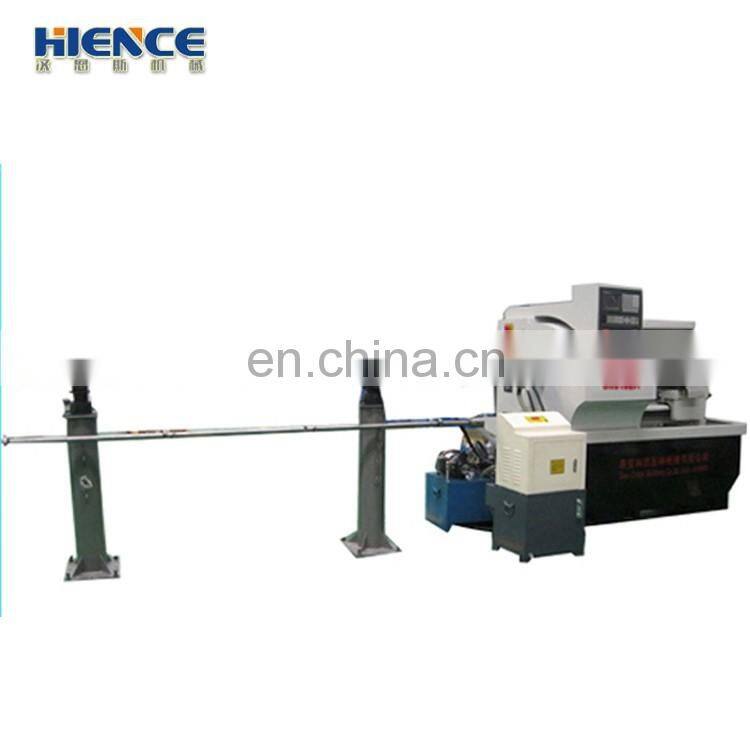

mini cnc lathe with bar feeder

100% Response Rate

cnc lathe machine CK6136A-2

100% Response Rate

Heavy duty lathe machine

100% Response Rate

Packing & Delivery

Packaging
Size	250015002000
Weight	3000kg
Packaging Details	The normal package is wooden box(Size: LWH). the wooden box will be fumigated.
