Home > Products > Horizontal Machining Center > H40 Small Benchtop CNC Boring Milling Machine

H40 Small Benchtop CNC Boring Milling Machine

Name: H40 Small Benchtop CNC Boring Milling Machine
Brand: HANKUI
Availability: InStock

FOB Price

US$ 9,000 - 139,000 / Set

1 Set(Min. Order)

Port Qingdao Port
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	HANKUI	Place of Origin	Shandong, China
Type	Horizontal	Certification	ISO9001
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	13 Months
Weight	4500kg	Dimension(LWH)	280018002450
Voltage	380v or choiced by customer	Condition	New
Power(W)	15~22KW

Product Description

products information

Technical parameter

ITEM	H40
Worktable size	400×400mm
Worktable quantity	1
Indexing unit
Table Max. load	400kg
Max. workpiece swing dia	550mm
X axis travel	650mm
Y axis Headstock travel	550mm
Z axis column travel	500mm
Spindle speed (BT50)	8000rpm
Spindle center line to table surface	100~650mm
Distance between spindle nose to table center	190~590mm
Spindle servo motor	7.5KW
Fast speed (X, Y, Z axis)	30m/min
Positioning accuracy (X, Y, Z axis)	0.01
Re-positioning accuracy (X, Y, Z axis)	0.008
Dimension	280018002450mm
G.W	4500kg

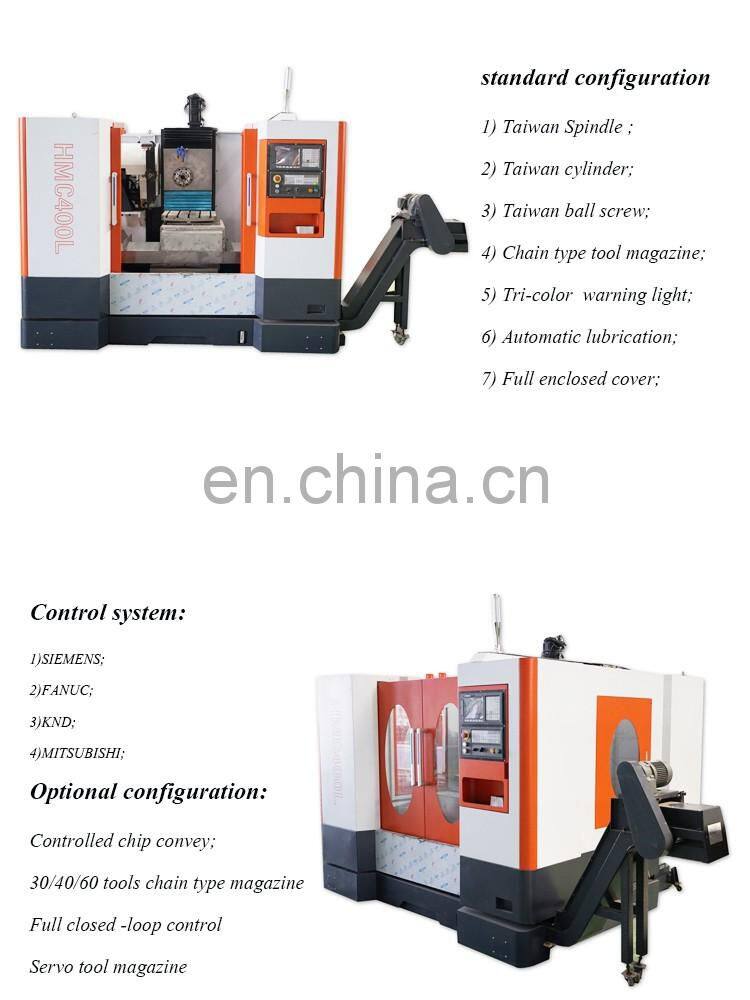

Main configuration

Resin sand casting

Direct-type spindle (Taiwan)

Ball screw and precision nut (Taiwan)

Pressurizing cylinder (Taiwan)

Linear slide rail (Taiwan)

Bearing (Japan NSK)

Slide rail shields (Taiwan)

Electric lubrication system

Cooling water system

One set air cooling pipes

The spindle synchronous belt wheel and belt

KND or FANUC,SIEMWNS,MITSUIBISHI(optional)

Water coolant through spindle, oil cooler (optional)

Packing & Delivery

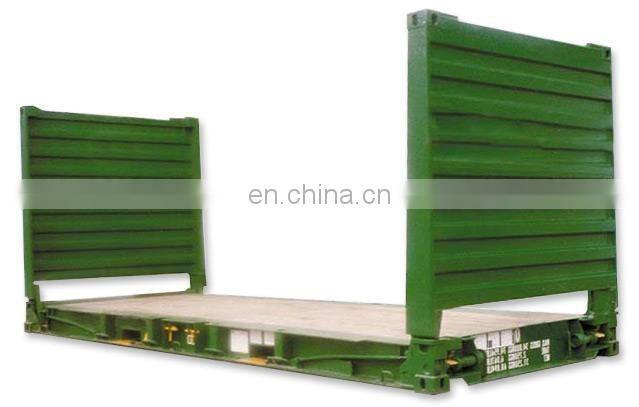

Flat Rack

EXHIBITION

Our Company

Jinan Hankui international trade co., ltd,

which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly.

The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc.

With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.

Now our products have a large market share and have a high popularity in domestic. Sales and services network have been established in many provinces and cities. Our products have been sold to America, South East Asia, Russia and Middle East countries with high reputation.

We have passed the ISO9001:2008 international quality management system authentication. "Honest and trust, Customer ahead, pursuit of excellent", we devoted to provide high quality performance CNC products and metal products to you. Welcome to visit our factory.
