Product Details
| Brand Name | Hankui | Place of Origin | Shandong, China | |
| Model Number | CKNC6150 | |||
| Year | 2019 | Condition | New |
Product Description

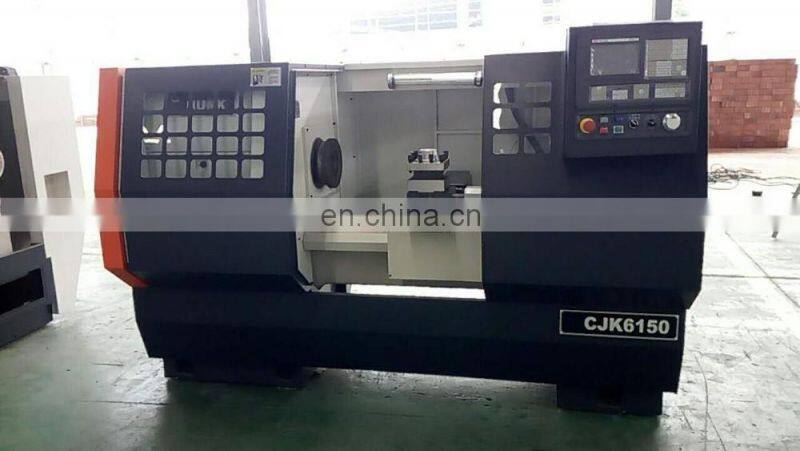

CK6150 Cnc Lathe Machinery for Metal Turning and Processing
Product Show

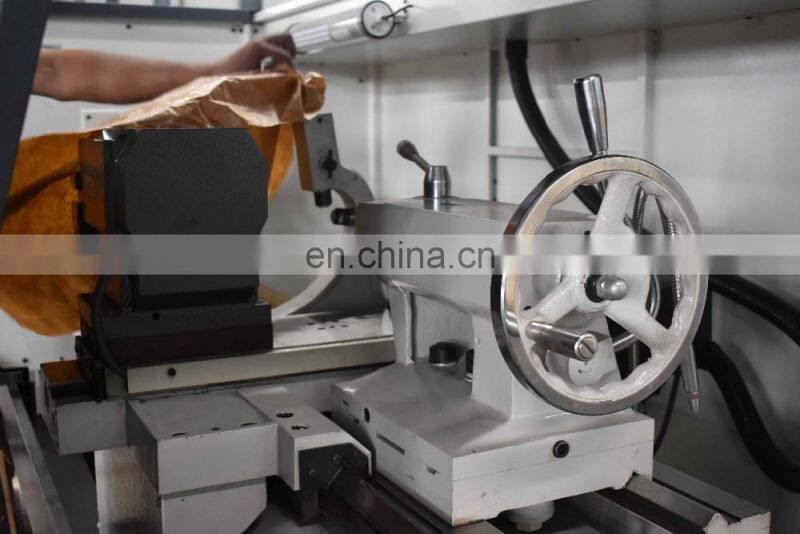

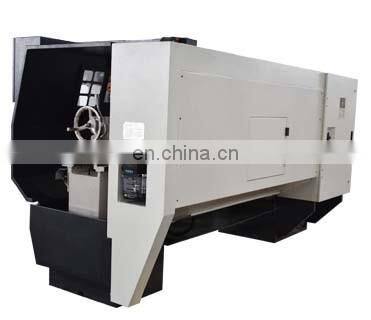

The side rear photo of cnc lathe machine Manual Tailstock, optional Hydraulic Tailstock

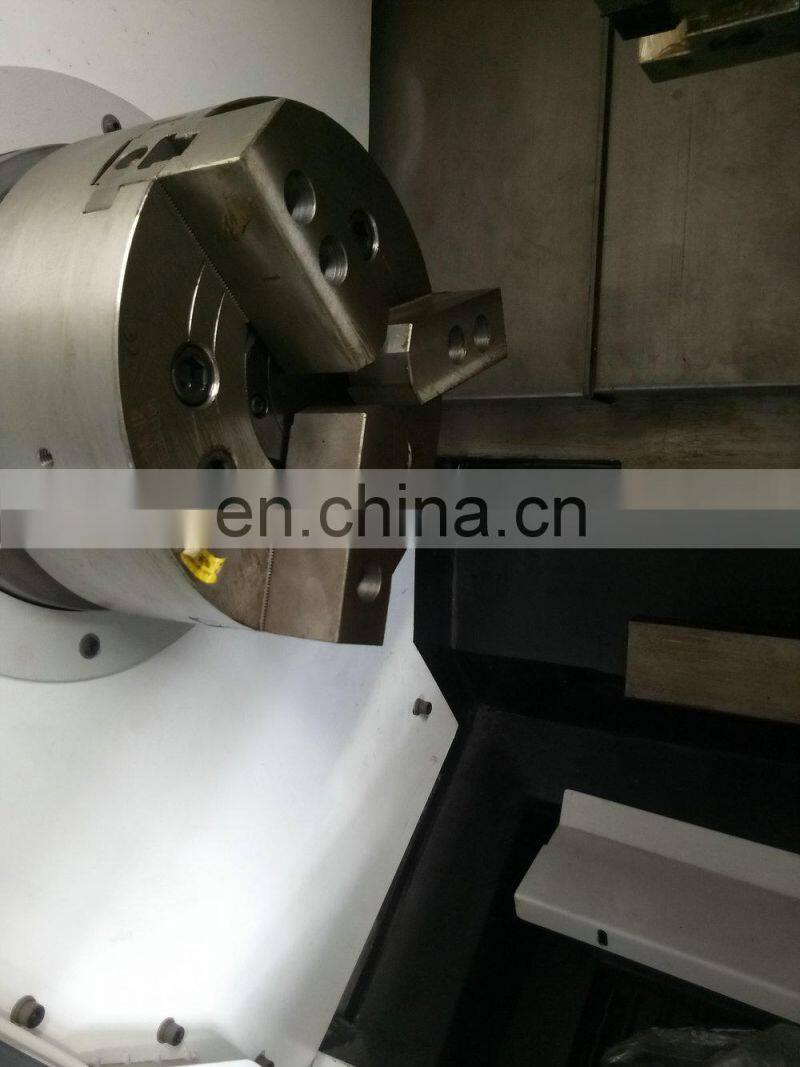

Manual 3 jaw self-centering 200mm chucks of the cnc metal turning lathe machinery.
Optional:10 inch Hydraulic chucks

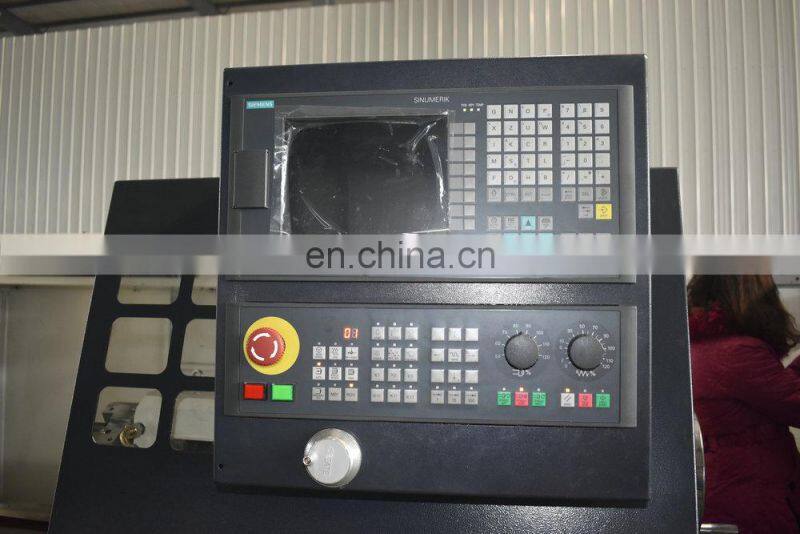

Standard Configuration of cnc controller system : Cnc lathe machine and cnc machine center are Siemens
Optional configuration of cnc controller system: Fanuc, Mitsubishi, Syntec, GSK, KND

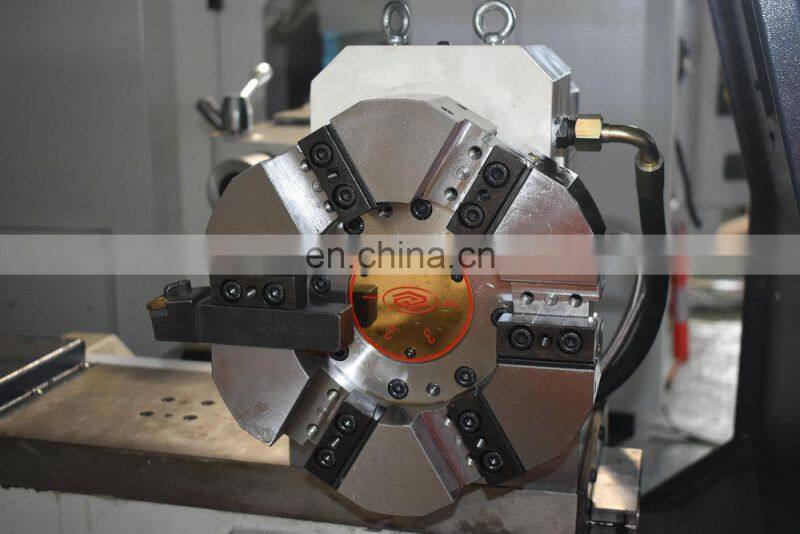

Standard configuration of tool turret of the cnc lathe machine is 4 stations electric turret tools,
Optional: 6 stations electrical turret tools /8 stations hydraulic turret tools, 12 stations hydraulic turret tools of cnc machinery

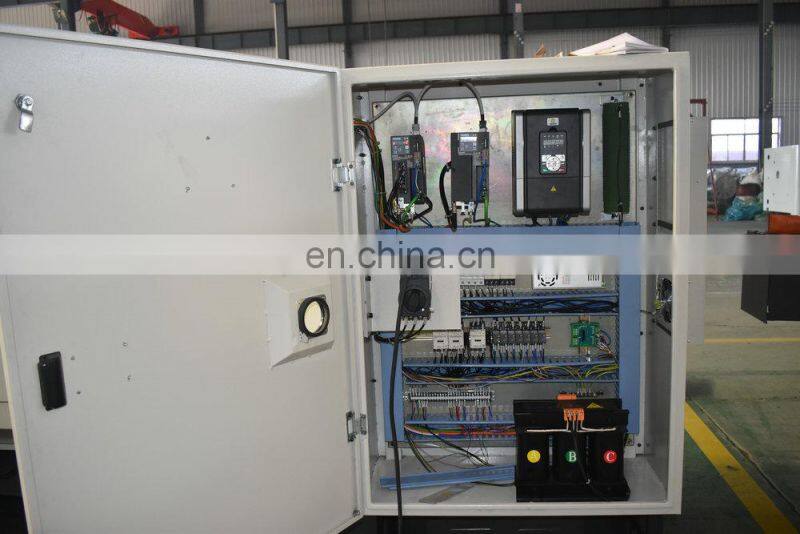

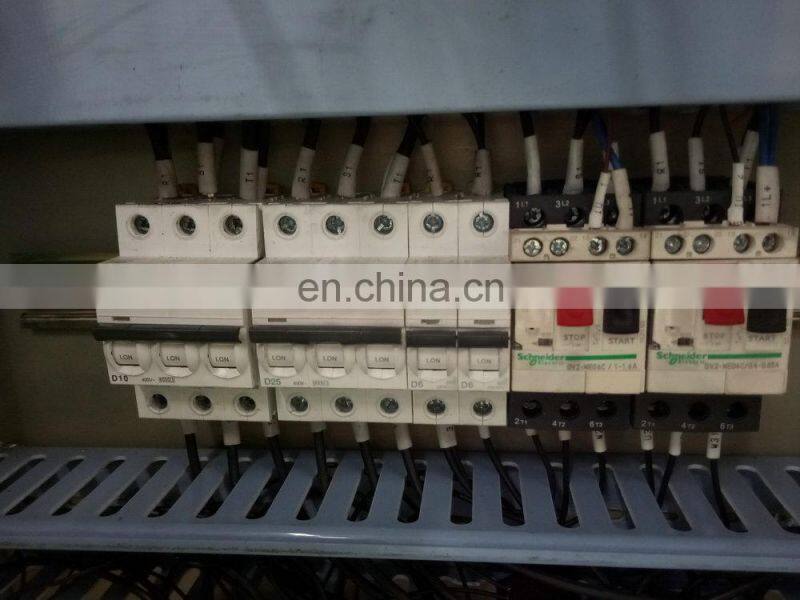

Electrical cabinet swing line neatly and orderly, electrical parts are used from Scheider, German brand.
Technical Parameter
Item | CKNC6136 | CKNC6136A | CKNC6140 | CKNC6150 |
Max .swing over bed | 360mm | 360mm | 400mm | 500mm |
Max.swing over slide | 200mm | 200mm | 230mm | 300mm |
cessing length | 750/1000mm | 500/750mm | 750/1000mm | 1000mm |
Guideway width of bed | 280mm | 350mm | 350mm | 390mm |
X axis travel | 210mm | 210mm | 220mm | 250+10mm |
Z axis travel | 750mm | 500/750mm | 750/1000mm | 750/1000/1500/2000 |
X/Z axis lead screw | 2505/3206 | 2505/3206 | 250/3206 | 2505/4010 |
X/Z axis rapid speed | 6/8m/min | 6/8m/min | 6/8m/min | 6/8m/min |
X/Z positioning precision | 0.02/0.03mm | |||
X/Z repositioning precision | 0.012/0.016 | |||
processing precision | IT6-IT7 | |||
Ellipticity | 0.01 | |||
Surface roughness | Ra<=1.6 | |||
Spindle speed range | Two steps, 80-400-2000 | 50-3500 | 50-3500 | 60-200,200-650, 650-1600 |
Spindle head type | ISOA2-6/D6 | A2-6 | A2-6 | C-5,C-8,D-8 |
Dia.of spindle thru-hole | 52mm | 56mm | 66mm | 82(105)mm |
Spindle hole tapper | MT6 | 105mm,1:20 | ||
Chunk | 200(8") | 250 | ||
Spindle motor power | 5.5KW | 7.5kw(three steps frequency) | ||
Tool holder type | Vertical 4 stations (Horizontal 6 stations) | |||
Turning tool size | 25.*25mm | |||
Tailstock sleeve travel | 100mm | 120mm | 120mm | 150mm |
Tailstock sleeve dia. | 52mm | 60mm | 60mm | 75mm |
Tailstock sleeve taper | MT4 | MT5 | ||
Controller | SIEMENS(standard),Fanuc,KND,GSK(optional) | |||
N.W | 1700/2000kg | 2100/2300kg | 2200/2500kg | 2600kg |
Dimension | 2.1*1.1*1.7m 2.35*1.1*1.7m | 1.9*1.1*1.7m 2.1*1.1*1.7m | 2.5*1.7*1.7m 2.7*1.7*1.7m | 2.6*1.2*1.7m 2.8*1.2*1.7m |
ITEM | CKNC6163 | CKNC6180 | CKNC61100 | CKNC61125 |
Max.swing over bed | 630mm | 800 | 1000 | 1250 |
Max.swing over slide | 350mm | 480 | 600 | 850 |
cessing length | 1500mm | 1500/3000/6000 | ||
Guideway width of bed | 550mm | 660mm | ||
X axis travel | 400mm | 520 | 625 | |
Z axis travel | 1000,1500,2000,3000mm | |||
X/Z axis lead screw | 4/7m/min | 4/5m/min | ||
X/Z axis rapid speed | 0.025/0.03mm | |||
X/Z positioning precision | 0.01/0.015mm | |||
X/Z repositioning precision | IT6-IT7 | |||
Procecessing precision | 0.01 | |||
Surface roughness | Ra1.6 | |||
Spindle speed range | Three steps frequency,40-125,110-350,290-950 | Three steps frequency,15-500 | ||
Spindle head type | C11 | |||
Dia.of spindle thru-hole | 105mm | 130mm | ||
Spindle hole tapper | 1:20(Metric system)120mm | (metric system)140mm 1:20 | ||
Chunk | 320(12")optional 400,500mm | 400(16") | 500(12") | |
Spindle motor power | 11kw | 11/15kw | 15kw | |
Tool holder type | Electric 4 staions | |||
Turning tool size | 30*30mm | 35*35mm | ||
Tailstock sleeve travel | 250mm | |||
Tailstock sleeve dia | 100mm | |||
Tailstock sleeve taper | Morse 5 | Morse6 | ||
Controller | SIEMENS,FANUC,KND,GSK | |||
N.w | 3600kg | 3900KG | 6000,8500,13500KG | |
Dimesion | 3700*1500*1600mm | 3700*1500*1600 | 4200*1920*1800(1.5M),4750*1920*1800(2M), 5750*1920*1800(3M) | |
Our Company

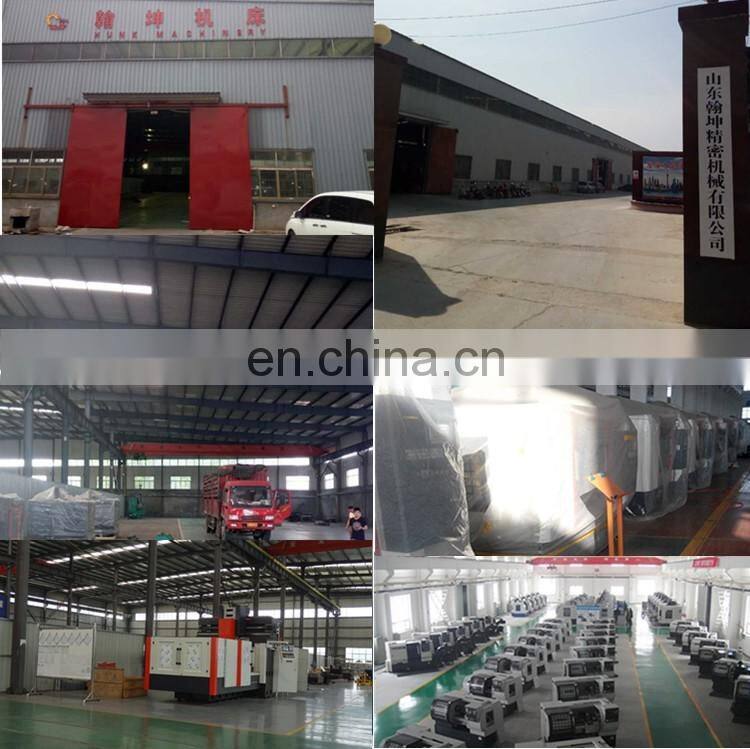

The main products are machine tools and metal parts, the production base locates in Qingzhou, Shandong province. Have a strong technical force and rich experience, the designers, R&D and engineering technicians have taken part in the design and production of advanced level machine tools in China, such as general utility horizontal machining center,vertical machining center, CNC vertical lathe, CNC slant bed lathe, etc.
With more than 10 years development, our products have occupied a large share in domestic and overseas market. Sales and services network have been established in many provinces and cities. With superior equipment, advanced technology, detection devices, we can take over all sort of standard and non-standard products manufacturing of all specifications in good quality. Our products have been sold to European countries, America, South East Asia and Middle East countries with high reputation.
In line with the purpose of "customers' demand is our goal" and dedicated to provide high quality CNC products and metal products for foreign customers, we warmly welcome customers at home and abroad to visit our factory. Sincerely hope to cooperate with you.
