CK6180 China Suppliers Metal Turning Cnc Lathe Machine Price

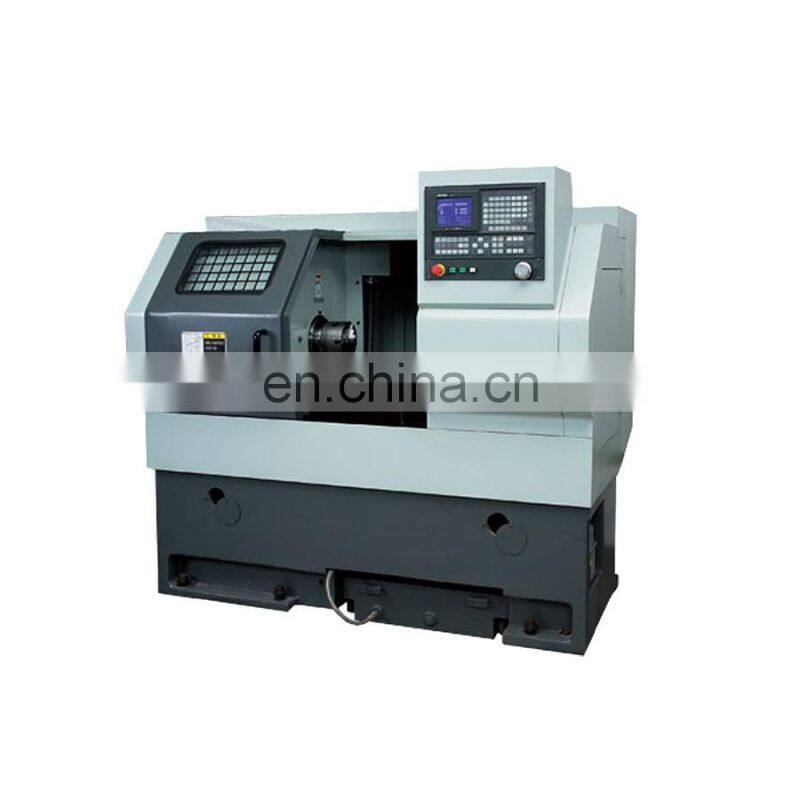

Small Mini Cnc Lathe Machine CK6132 / CK6136

CK6132 (Processing Length is 350mm)
CK6136/CK6136A (Processing length is 750mm/550mm)

3.7kw / 5.5kw inverter motor;

Max. spindle speed is 3000rpm;

Dia. of spindle thru-hole: 40mm/46mm;

4 stations electric turret tool;

Manual 3 jaw self-centering chuck, diameter 160/200mm

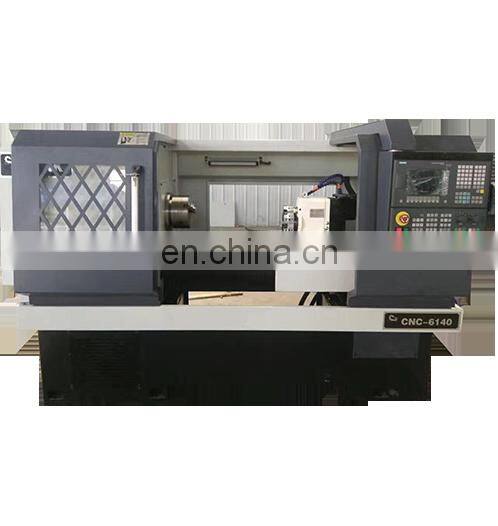

CK6140 Flat Bed Cnc Lathe Machine

Standard Configuration:

Siemens CNC Controller

Processing length: 1000mm

5.5KW variable frequency motor;

Max. spindle speed is 3500rpm

Dia. of spindle thru-hole:66mm;

4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 200mm

Optional: Fanuc/Mitsubishi/GSK/KND

6 stations electric turret tool;

Hollow 8 inch hydraulic chuck

CK6150 CNC Horizontal Lathe Machine

Standard Configuration:
Siemens CNC Controller

Processing length: 1000mm
5.5KW variable frequency motor;
Max. spindle speed is 3500rpm
Dia. of spindle thru-hole:66mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 200mm

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow/Solid 10 inch hydraulic chuck;

6 stations electric turret tool;

Servo spindle motor;

Processing length: 1500mm/2000mm

CK6163 Cnc Lathe Machine

Standard Configuration:
Siemens CNC Controller

Processing length: 1500mm
11KW variable frequency motor;
Max. spindle speed is 950rpm, three steps frequency spindle speed range;

Dia. of spindle thru-hole:105mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 320mm.

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow 12 inch hydraulic chuck /Solid 15 inch hydraulic chuck;
6 stations electric turret tool;
Servo spindle motor;
Processing length: 2000mm/3000mm

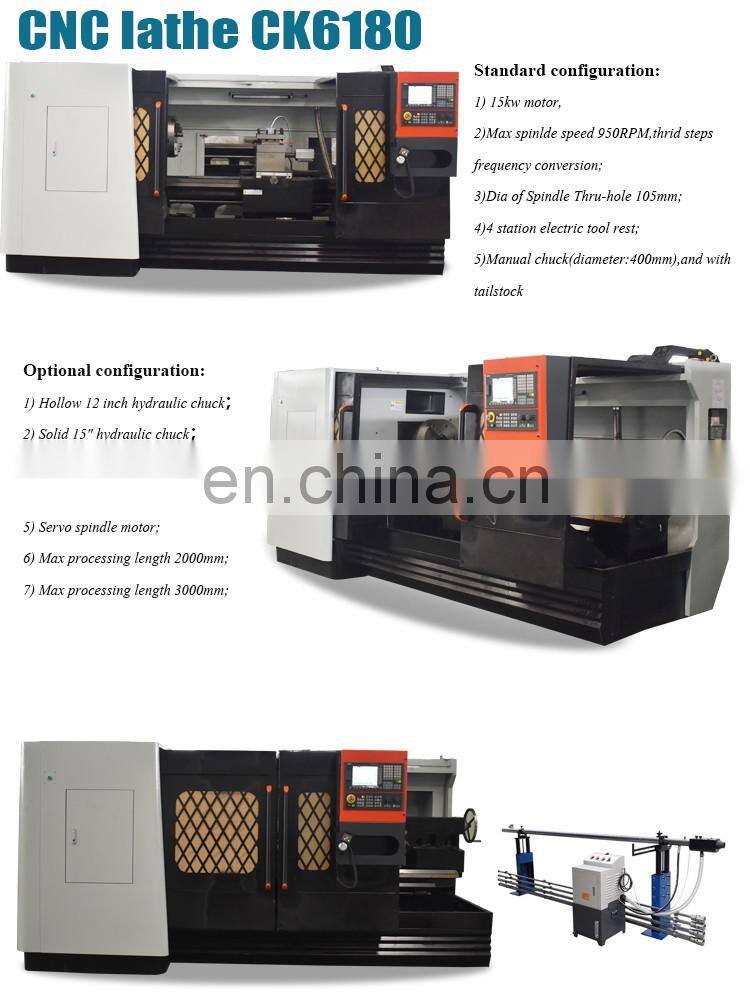

CK6180 CNC Lathe Machine

Standard Configuration:
Siemens CNC Controller
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 950rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:105mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 400mm.

Optional: Fanuc/Mitsubishi/GSK/KND
Hollow 12 inch hydraulic chuck /Solid 15 inch hydraulic chuck;
6 stations electric turret tool;
Servo spindle motor;
Processing length: 2000mm/3000mm/4000mm

CK61100 Big size cnc lathe

Standard Configuration:
Siemens CNC Controller
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 500rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:130mm;
4 stations electric turret tool;
Manual 3 jaw self-centering chuck, diameter 400mm.

Optional: Fanuc/Mitsubishi/GSK/KND

6 stations/8 stations electric turret tool

Hydraulic chuck

4 jaw manual chuck, diameter 500mm

Processing length: 3000mm

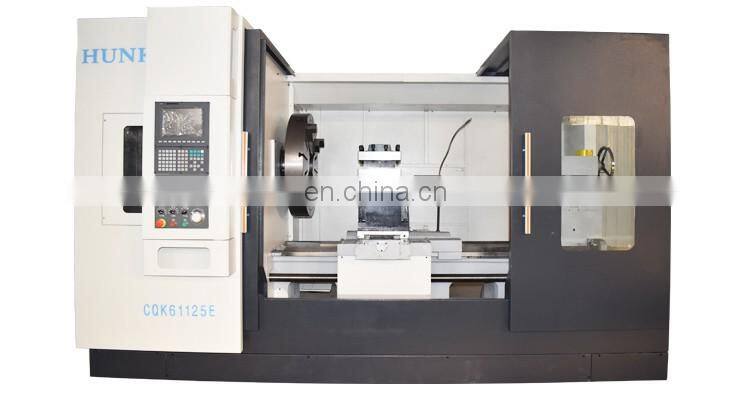

CK61125 Cnc Lathe Machine

Standard Configuration:
Siemens CNC Controller

Guideway width of bed:660mm
Processing length: 1500mm
15KW variable frequency motor;
Max. spindle speed is 500rpm, three steps frequency spindle speed range;
Dia. of spindle thru-hole:130mm;
4 stations electric turret tool;
Manual 4 jaw self-centering chuck, diameter 800mm.

Optional: Fanuc/Mitsubishi/GSK/KND

Guideway width of bed: 755mm
6 stations/8 stations electric turret tool
Hydraulic chuck
4 jaw manual chuck, diameter 1000mm
Processing length: 3000mm
