Cheap Mini Metal Cnc Milling Machine CNC Lathe for Teaching
- qingdao
- T/T Credit Card
You May Like
-
Vmc850l 3 Axis Cheap Fanuc Cnc Milling Machine for Sale
-
VMC650L 3 Axis Cnc Milling Machine, China Carousel Type VMC With Tools for Plastic Milling
-
VMC550L 4 Axis China Cnc Small Scale Maize Milling Machine
-
Small Cheap 5 Axis Cnc Vertical Lathe Machine
-
Cheap 220v 380v Small Siemens Fanuc VMC 220v 380v Machining Center
-
Vertical Best Price CNC Bore Processing Machine
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Model Number | VMC 420 | Type | Vertical | |
| Certification | ISO CE | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 1 Year | Weight | 2500 kg | |
| Dimension(L*W*H) | 1900x1400x2100 | Voltage | Customized | |
| Condition | New | Power(W) | 5.5/7.5kw |
Product Description
Cheap mini metal cnc milling machine CNC lathe for teaching
Thanks for your attention for our products!!!
Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises.
It is of semi closed loop vertical machining center with X, Y, Z axis controlled by servo motor directly. The three axis are all the steel ball rolling linear guide rail which is large load capacity, wide span and high precision. Suitable for heavy load and compact and reasonable structure and dimensions. Spindle is driven by servo motor through synchronous belt. It can finish clamping one-time of various dishes, plates, shell, cam, mold and other complex parts. It can complete the drilling, milling, boring, reaming, expansion, and other rigid tapping process . so it is suitable for many varieties, medium and small batch production. It can finishe the processing of complex, high precision parts . It can be matched the four rotary shaft , in order to meet the requirements of special parts.

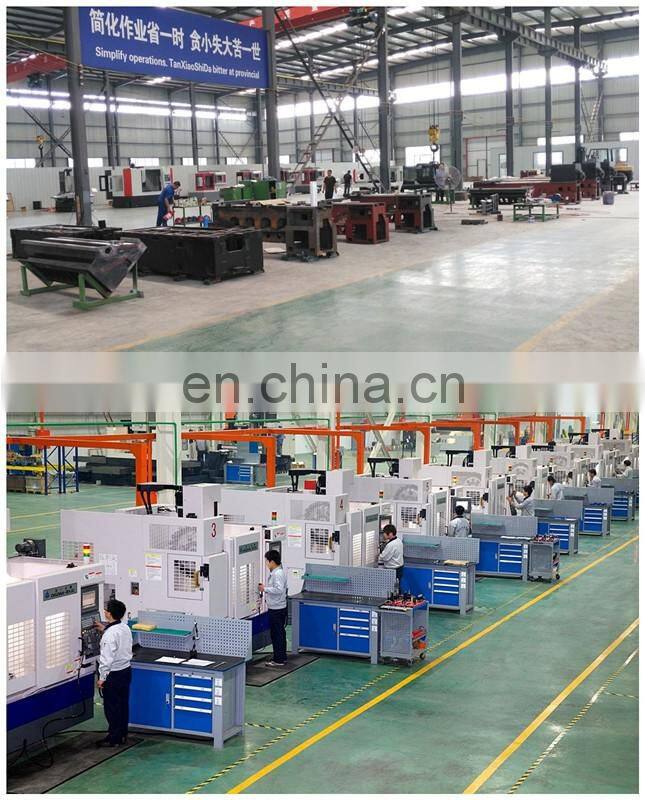

The Workshop photos:
The main technical parameters:
| Item | unit | VMC420L | VMC460L |
Worktable | Table size | mm | 800×260 | 800×280 |
Load capacity | kg | 150 | 200 | |
T slot |
| 16*3 | 16*3 | |
Travel | X-axis travel | mm | 410 | 460 |
Y-axis travel | mm | 260 | 310 | |
Z-axis travel | mm | 410 | 460 | |
Distance from Spindle center to table | mm | 90-500 | 90 - 550 | |
Distance from Spindle center to column slide way | mm | 315 | 340 | |
spindle | Tool shank |
| BT30 | BT30 |
Spindle speed | rpm | 8000 | 8000 | |
Spindle motor power | kw | 2.2 | 2.2 | |
Tool | Max. diameter of tool | mm | φ50/φ100 |
|
Max. length of tool | mm | 150 |
| |
Max. weight of tool | kg | 4 |
| |
Fast move | X/Y -axis rapid moving speed | mm | 12000 | 15000 |
Z-axis rapid moving speed | mm | 10000 | 15000 | |
feed rate | mm/min | 1-4000 | 1-4000 | |
Accuracy | positioning accuracy | mm | ±0.01 | ±0.02 |
repeated positioning accuracy | mm | ±0.005/300 | ±0.01 | |
Overall dimensions | Out dimension | mm | 1900×1400×2100 | 1460×1960×2000 |
Machine weight | Kg | 2500 | 2800 |
We transport the machine according to customer's specific requirements.
Our company is specializing in the production of CNC machine tool, and we has passed the ISO9000 certification and the right of import and export. By the August 2014, our company has owned 10 patent technologies, including the appearance, design, the utility model of machine and so on. And our company is a provincial high-tech enterprises. we are the manufacturer and exporter of CNC lathe, machine center, milling machine, boring machine and so on, without any doubt, all of our products are with excellent quality and lowest price, because we are the manufacturer, we are the source! sincerely hope we could help you!
Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
Q: What sales terms do you have?
A: T/T, L/C,West Union.
Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
Q: What do I need to offload my machine from the container?
A: You are not responsible for the offloading of your machinery, and it is recommended that you use a reputable rigging company.
Q: What kind of controls/Parts do you use on your machines?
A: AMS, OMRON, Schneider, Siemens, and ASK,ABBA,OPTIMA(ITALIA),HSD
Q: What is your delivery time?
A: Depending on the type of machine, duration of 10 days to 45 days from date of order.
Q: Do we receive any updates while machine is in the manufacturing process?
A: Yes.Regular updates on progress will be sent to you.
HANKUI is your best friends forever!!!
