Home > Products > Vertical Machining Center > Cnc Lathe Machine Price Vmc650l Lego Technic Drilling
Cnc Lathe Machine Price Vmc650l Lego Technic Drilling
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | HANKUI | Place of Origin | Shandong, China | |
| Type | Vertical | Certification | ISO CE | |
| After-sales Service Provided | Overseas service center available | Warranty | 12 Months | |
| Weight | 3000kg | Dimension(L*W*H) | 2350*2100*2150mm | |
| Voltage | 380V/50Hz | Condition | New | |
| Power(W) | 5.5kw |
Product Description
Engineers Available To Service Machinery Overseas New Condition Small Milling Machine
Parameter
Item | Unit | VMC550L | VMC600L | VMC650L |
Table Size | mm | 800×320 | 800×360 | 900×360 |
Load Capacity | kg | 300 | 350 | 400 |
T Slot |
| 14*3 | 3-14×115 | 18*3 |
X-axis Travel | mm | 550 | 600 | 650 |
Y-axis Travel | mm | 340 | 400 | 380 |
Z-axis Travel | mm | 460 | 500 | 460 |
Distance from Spindle Center to Table | mm | 100-560 | 100-600 | 100-560 |
Distance from Spindle Center to Column Slide Way | mm | 410 | 430 | 460 |
Tool Shank |
| BT40 | BT40 | BT40 |
Spindle Speed | rpm | 8000 | 10000 | 8000 |
Spindle Motor Power | kw | 5.5 | 5.5 | 5.5 |
Max. Diameter of Tool | mm | φ80/φ150 | Ø120×200 | φ80/φ150 |
Max.Length of Tool | mm | 300 | 350 | 300 |
Max. Weight of Tool | kg | 6 | 8 | 6 |
X/Y -axis Rapid Moving Speed | mm | 20000 | 30000 | 20000 |
Z-axis Rapid Moving Speed | mm | 20000 | 30000 | 20000 |
Feed Rate | mm/min | 1-10000 | 2.5~3000 | 1-10000 |
Positioning Accuracy | mm | ±0.01 | 0.015 | ±0.008 |
Repeated Positioning Accuracy | mm | ±0.004/300 | 0.0075 | ±0.003/300 |
Out Dimension | mm | 2100×2050×2100 | 2200×2100×2200 | 2350×2100×2150 |
Machine Weight | kg | 2300 | 2600 | 3000 |
Standard configuration
1.Taiwan spindle
2.Taiwan ball screw
3.Taiwan/Germany linear guide rail
4.Three color warning light
5.Automatic lubrication
6.Full enclosed cover
Optional configuration

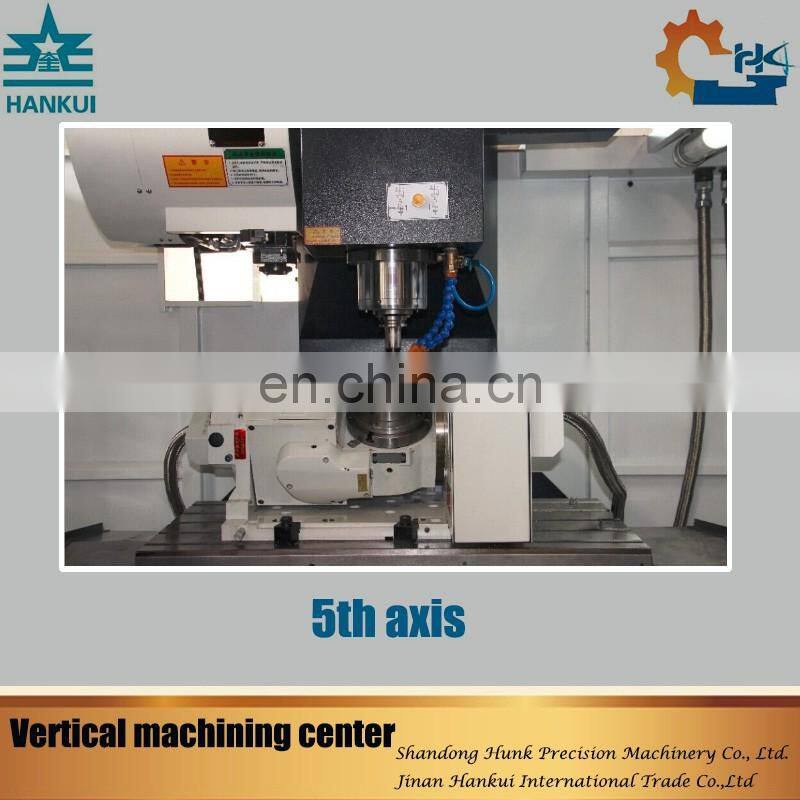

1.CNC 4th/5th axis
2.Hydraulic indexing head
3.Automatic chip conveyor
4.Full closed-loop control
Our company
Jinan Hankui international trade co., ltd
Jinan Hankui international trade co., ltd, which is the subsidiary corporation of Shandong Hunk precision machinery Co., Ltd., is a CNC machine tools company, located in the beautiful capital Jinan city, integrated with manufacturing, processing and sales. It was set up by the former Jinan Machine tools factory employees. It has a subsidiary corporation Jinan HANKUI International Trade Co., Ltd. The plant area is about 10,000 square meters. We have a number of R&D persons and technicians who have more than 20 years experience of machine tool design and assembly. We have mastered the advanced machine tool technology and were dedicating to service customers domestic and abroad and welcomed deeply.
Our products
The main products are horizontal / vertical/ gantry machining center, flat / slant bed CNC tuning lathe, CNC vertical turning lathe etc. With superior equipment, advanced technology, detection devices, the imported parts from Taiwan, Japan, Germany etc., we can manufacture the high quality machine tools. And we also take over the metal products and spare parts machining in good quality.
Our certification
Packing and shippment
Packing by wooden case or as request, need about 7-35days
FAQ
1. Q: Do you have after sales support?
A: Yes, we are happy to give advice and we also have skilled technicians available, We need your machines running in order to keep your business running.
2. Q: Once we've bought a machine from you, are you able to supply us with material?
A: We can assist you in finding the appropriate materials to suit your machine
3. Q: Do you sell only standard machines?
A: No, most of our machines are built according to customers specifications, using top brand name components.OEM is acceptable
4. Q: Do you have a warranty on your machines?
A: One year warranty excluding electrical components.
5. Q: What sales terms do you have?
A: T/T, L/C,West Union.
6. Q: Do you have instruction manuals?
A: We provide you with instruction manuals, electricity layouts, civil requirements, and machine drawings or Video Support,
7. Q: Once a machine arrives at our factory what happens then?
A: We will send you a technician or engineer that will commission and install your machine, with training for your staff if required at a separate fee.
