CSD500 Cutter Suction Dredgers
- Qingdao
- T/T Credit Card
You May Like
Product Details
| Brand Name | cutter suction dredger | Place of Origin | Shandong, China | |
| Type | Cutter Suction Dredger | Certification | ISO9001 | |
| After-sales Service Provided | Overseas service center available | Warranty | 1 year | |
| Weight | 175 tons | Dimension(L*W*H) | 48*8.5*7.8m | |
| Power Type | Diesel | |||
| Draught | 170 cm | Dredging Depth | 15 m |
Product Description

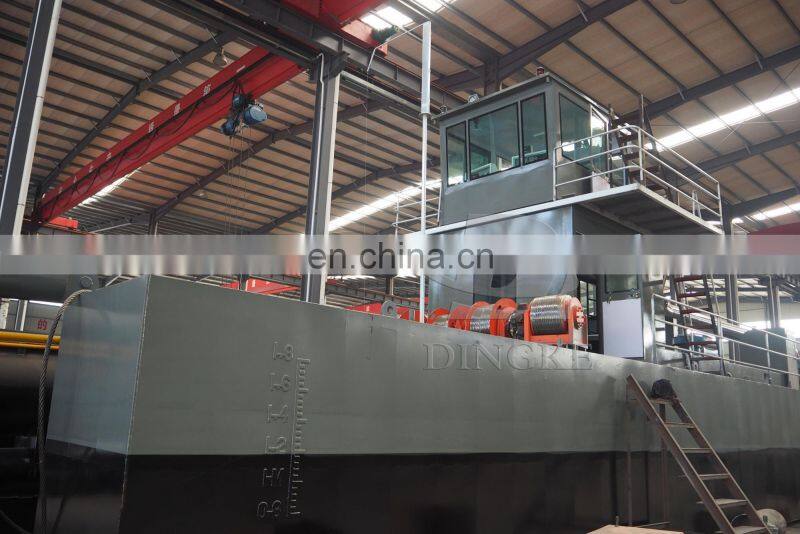

CSD500 cutter suction dredgers
A.Main Parameters
1.Main Scales:
Overall length:23.50m
Hull length:16.00m
Hull width:6.10m
Hull depth:1.85m
Total weight:58T
Suction/discharge pipe dia:450/400mm
2.Main parts characters
2.1.Sand pump diesel engine(one set)
Model:Caterpillar 3412E
Power(Max):485kw(660HP)
Speed:1800r/min
(Also can use the Cummins KTA19,522KW,700hp,2100r/min)
( low power,high market share,excellent after-sale service)
KW | Motor | Speed | Fuel oil deplete L/hr g/hr | Power |
522 | 700 | 2100 | 132.8 35.1 | MCD |

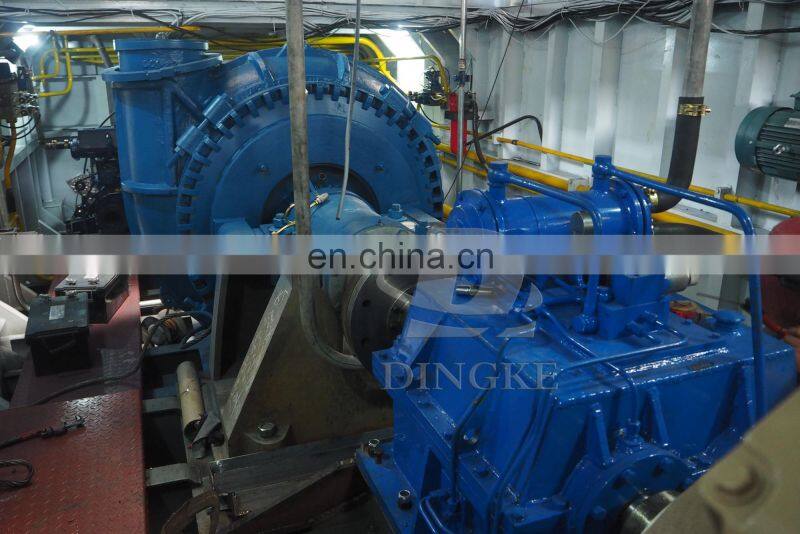

2.2.Sand Pump (one set)
Model:14/14G-G
Maker:Shijiazhuang Pump Group
Clean Water flux(Q):1600m³/hr
Pump lift(H):52m
Speed(n):600-700r/min

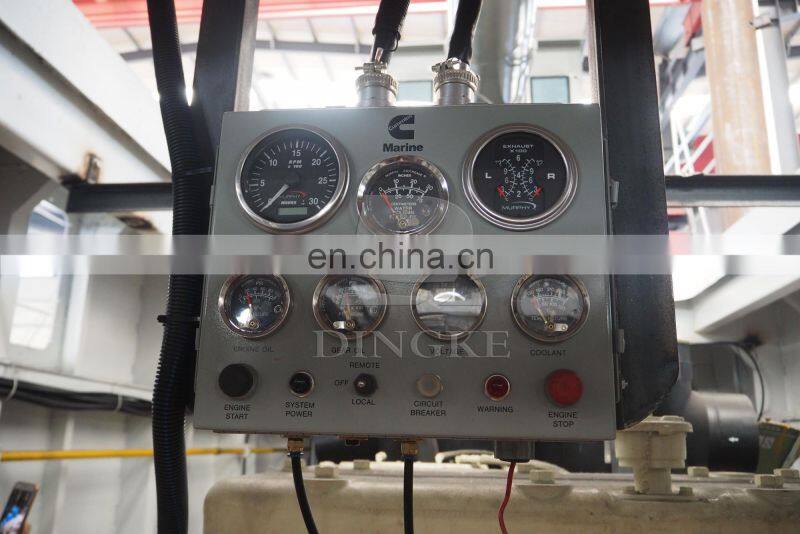

2.3.Cutter Diesel Engine
Model:Cummins NT855
Power:145kw
Speed:1800r/min
KW | Motor | Speed | Fuel oil deplete L/hr g/hr | Power |
145 | 195 | 1800 | 40.6 10.7 | CON |

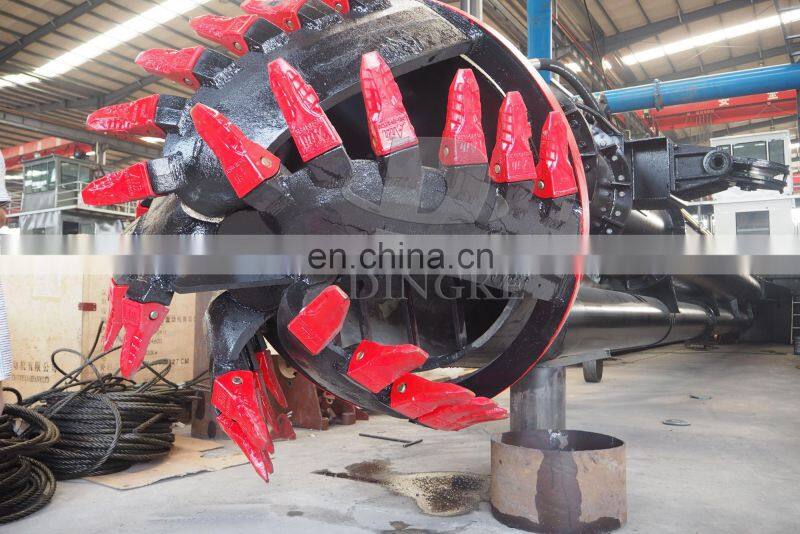

2.4.Cutter(one set)
Model:φ1000
Maker:Our factory
Diameter:1000mm
Power:75kw
Max speed: First speed about 11r/min
Second speed about 23r/min
Third speed about 33r/min
