Product Description

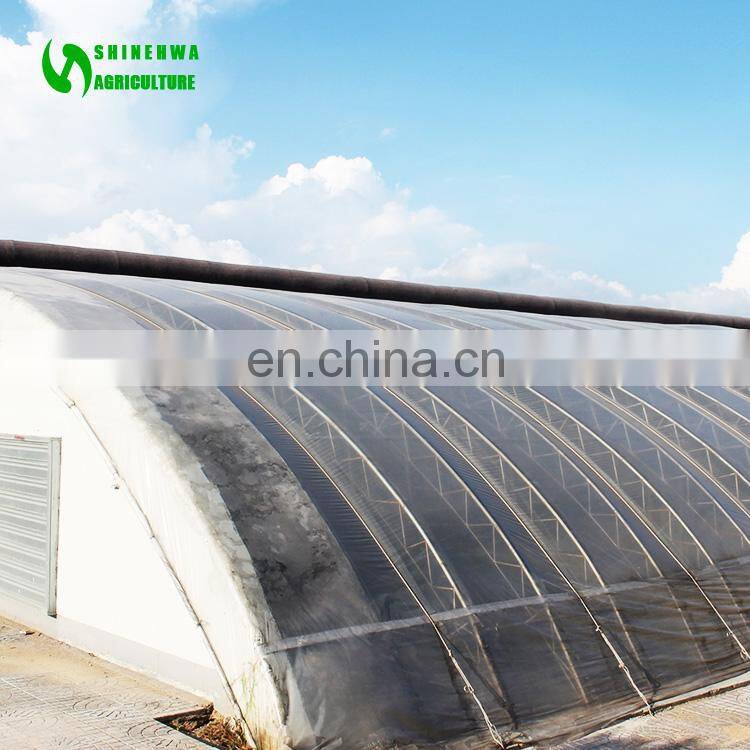

Sunlight Greenhouse Hot Galvanizing Structure
Sunlight Greenhouse
Temperate Sunlight Greenhouse Abstract
- Front slope covered with insulation cover in night; East, West, north side with retaining wall; with single slope covered by film, this type of greenhouse is called sunlight greenhouse.
- The prototype is single slope glass greenhouse, the front slope covered material is plastic film instead of glass. The characteristics of this type of greenhouse is good insulation, low investment and saving energy, very suitable for China's economic underdeveloped rural areas.
- Performance of sunlight greenhouse: energy-saving sunlight greenhouse’s light transmittance rate is above 60%~80%, the internal and external temperature difference can be maintained at more than 21~25 degrees Celsius.
Temperate Sunlight Greenhouse Application
- planting vegetable, for example, tomato, cucumber, peper, chilli, leaf vegetable, etc.
- planting flower.
- planting fruits.
- soilless culture.
- agriculture trial.
- for sightseeing
Temperate Sunlight Greenhouse Composition
| NO. | items | description | including or not |
| 1 | steel structure | hot-galvanized steel | yes |
| 2 | roof cover | film 8dmm/10dmm/12dmm or 8mm/10mm polycarbonate sheet | choose according to the clients requirements |
| 3 | wall | usually people use brick wall or ground earth wall. you also can use stones wall or gravel wall or other material. But you should build the wall by yourselves. If not, we can supply thermal insulation instead. | build by the client |
| 4 | outer sunshade system | sunshade net has different light transmission,75%, 50% | choose according to the clients requirements |
| 5 | outer warming curtain | We put thermal insulation curtain to keep inside warm in winter.
| choose according to the clients requirements |
| 6 | inner warming system | we install a thin film inside the greenhouse. it can keep warm inside in night and in winter. | choose according to the clients requirements |
| 7 | cooling system | it consists of cooling fans and cooling pad | choose according to the clients requirements |
| 8 | heating system | 1.boiler warming: boiler and water warming blower. the bolier type has gas boiler, coal boiler, oil boiler and biofule boiler, and gas/oil boiler | choose according to the clients requirements |
2. electric warming: only has electric warming blower | |||
| 9 | ventilation system | side windows and cooling fans | choose according to the clients requirements |
| 10 | irrigation and fertilization system | drop irrigation or spray irrigation | choose according to the clients requirements |
| 11 | control system | semi-auto-control | choose according to the clients requirements |
| 12 | light compensating system | usually choose high - pressure sodium lamp, or you can use LED lamp | choose according to the clients requirements |
| 13 | seadling bed system | used for seadling | choose according to the clients requirements |
| 14 | soilless culture | we can supply the equipment for soiless culture | choose according to the clients requirements |
| 15 | the other equipment | If you need the other equipment or planting material, please reply to us. | choose according to the clients requirements |
Our company is located in Qingzhou City, Shandong province, cover an area of 7000 square meters, which possesses register capital RMB3,000,000.00, more than 50 stuffs, and which is a high-tech enterprise in the integration of product research and development, process design, manufacturing, installation, sales and after-sales. The company study and introduce domestic and foreign advanced scientific and technological achievements continuously to supply high-efficiency, save-energy and environmental products and solution.
The company’s main scope of business includes: building and installation of glass greenhouse, PC greenhouse, film greenhouse, solar energy greenhouse, sunlight greenhouse; production and sales of greenhouse parts; building light steel structure; design, plan and building of garden and park and inner greenhouse; research and promotion of hydroponic vegetable; research and promotion of other agricultural technology and eco-agriculture.
steel structure and cover
| the temperate sunlight greenhouse is usually used arch pipe as the structure material, according to the greenhouse width, the pipes are different. | The sunlight greenhouse is usually covered plastic film, thickness 8-20dmm, or covered PC sheet, thickness 8mm or 10mm. |
Outer Sunshade System, Inner Sunshade System & Warming System
| In the summer when indoor temperature rise to a certain value, it can reflect a part of the sun and diffuse sunshine into the greenhouse according to the different shading rate, achieving the purpose of cooling temperature. | This system is installing inner sunshade net in the greenhouse.In summer, it can reduce the inner temperature, and in winter and in night, it can prevent the heat running off. | In temperate zone, winter is very cold, so the farmer usually install the warming curtain to keep it warm. |
Cooling System, Heating and Warming System, & Ventilation System
The cooling system is composed of fan and cooling pad, which can maintain the temperature in the greenhouse at 26-30℃ in summer. | Heating system has two types, one type is using the boiler to provide heat, and another uses of electric. Boiler fuel can choose coal, oil, gas and bio fuels. Boilers need laying of pipelines and water warming blower to heat. If use electricity, you need electric warm air blower to heat. | all the greenhouses covered by film should be opened to ventilate on the two sids and two ends. the film is rolled up and down by a small hand roller. |
Light Compensating System, Irrigation System & Control System
| Greenhouse compensating light, also called plants light, is a required light of supplying light to the plants for growing and developing, instead of sunlight according to the natural law of plant growth and the principle of plants using sunlight for photosynthesis. At this moment most of farmers use high pressure sodium lamp and LED lamp. | In different time and different plants, use different irrigation method. we can install drop irrigation and spray irrigation in the greenhouse. | Greenhouse control system is generally composed of control cabinet, sensors and circuits, which can be realized semi automatic control. You can also use the computer to intelligently control the greenhouse systems through installing networking. |
Nursery Bed, Substrate Culture & Agriculture Planting Technique Supply
| Nursery bed has Fixed bed and movable bed. | If you need the material of substrate culture, we can supply to you. | if you need us to guide you how to plant, we can send the professional farmer to help you |
| Pre-Sales Service | After-Sales Service |
|
|
|
|
|
|
|
|
1. How long is the delivery time? |
According to your greenhouse size and system, the delivery time is usually 10-60days. |
2. How long is the warranty period? |
Different parts have different warranty, usually the electric machine guarantee 1 year, the steel structure 5years, glass 1 year, sunshade net 2-3years, etc. |
3. Is your compay foreign trade company or manufacturer? |
we are manufacturer. |
4. Can you supply sample? |
| Small parts can be supplied, but you should pay the express. |
5. Can your company supply greenhouse design? |
Our company can give greenhouse design according to your land and plan after deposit. And we can give simple drawing before signing contract. |
6. How to intall greenhouse |
First we prepare the material and export. |
After your customs clearing, we send 2-4 engineers or all workers to guide to install. |
If you want to save money, we only send engineers, and you match local workers. If you think it is hard to do, we also can send engineers and workers to install for you. |
7. When installing, what cost should we pay? |
our engineers and workers visas and round-trip tickets, their foods and accommodation, their communication |
8. What is the payment terms? |
usually the deposit is 30%-50% of total value. Before loading, all the balance shoulde be paid off. Or you can give your own payment terms, then we can negotiate it. |
